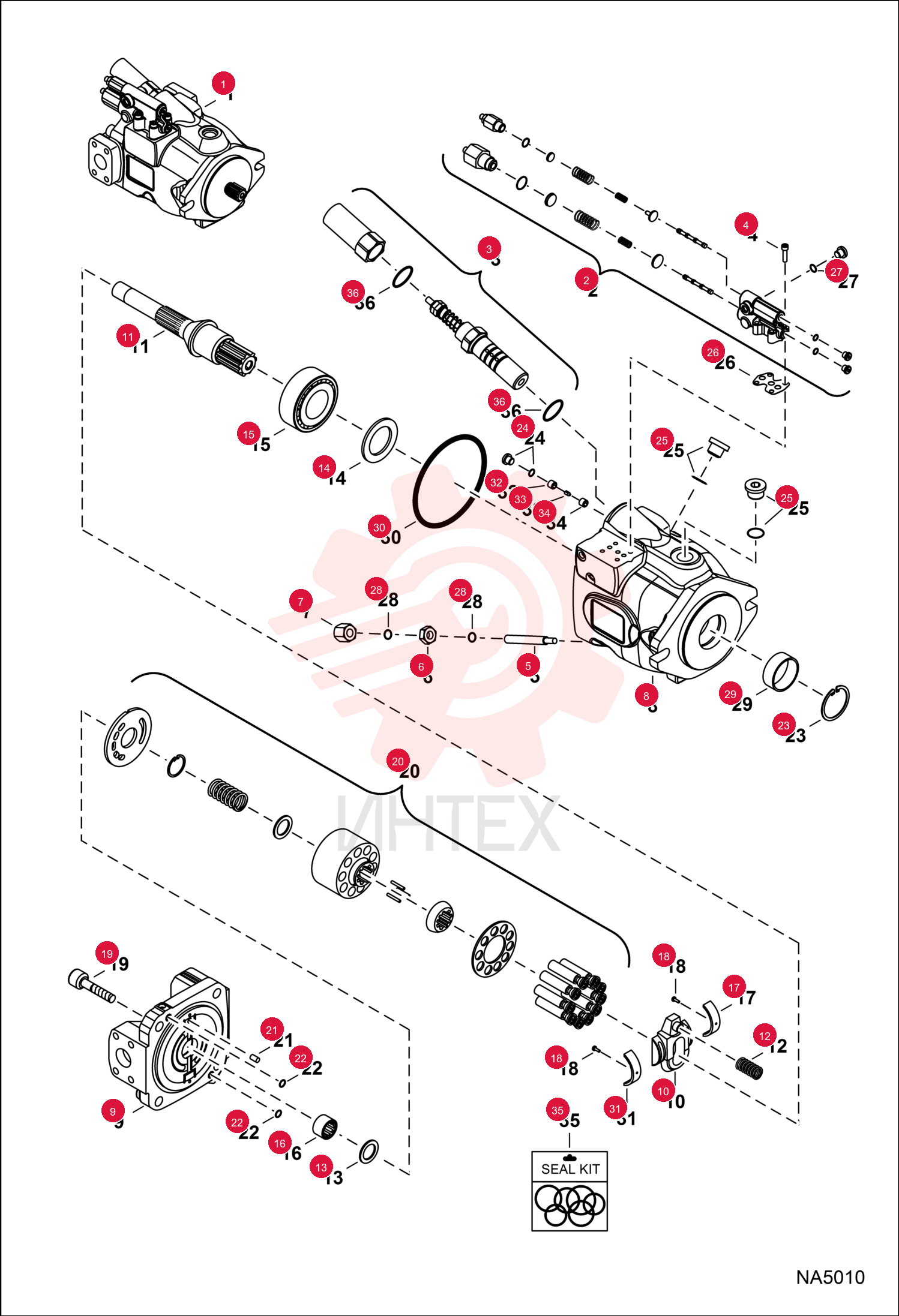

PUMP, HYD PISTON 7179600REM (3)
1 7179600REM
- 7179600REM - PUMP
- HYD PISTON
2 7179600
- 7179600 - PUMP
- HYD PISTON
- Ref. 2-34 & 36
3 6691520
- 6691520 - CONTROLLER
4 7000324
- 7000324 - TORQUE LIMITER
5 6672255
- 6672255 - BOLT
6 6690386
- 6690386 - SCREW
7 6690387
- 6690387 - NUT
8 6690388
- 6690388 - CAP NUT
9 6682879
- 6682879 - PIN
- shear
10 6682879
- 6682879 - PIN
- shear
11 6690395
- 6690395 - SWASH PLATE
12 6690396
- 6690396 - DRIVE SHAFT
13 6690397
- 6690397 - SPRING
14 6690398
- 6690398 - SHIM
15 6690399
- 6690399 - STOP RING
16 6690400
- 6690400 - BEARING
17 6690401
- 6690401 - BEARING
18 6690402
- 6690402 - BEARING
19 6690404
- 6690404 - SCREW
20 6690408
- 6690408 - SCREW SOCKET HEAD
21 6690390
- 6690390 - ROTARY GROUP
22 6672235
- 6672235 - DOWEL PIN
23 6690407
- 6690407 - SEAL
- O-RING
24 6676379
- 6676379 - RETAINER
- Was 7009735
25 6690107
- 6690107 - PLUG
- Was 6671832
26 6690385
- 6690385 - SCREW
27 6691519
- 6691519 - GASKET
28 6691491
- 6691491 - PLUG
29 6691457
- 6691457 - O-RING
30 6691488
- 6691488 - SEAL
31 6690406
- 6690406 - O-RING
32 6690403
- 6690403 - BEARING
33 6691492
- 6691492 - KIT
- SEAL
- Ref. 22-30
34 6691456
- 6691456 - O-RING
