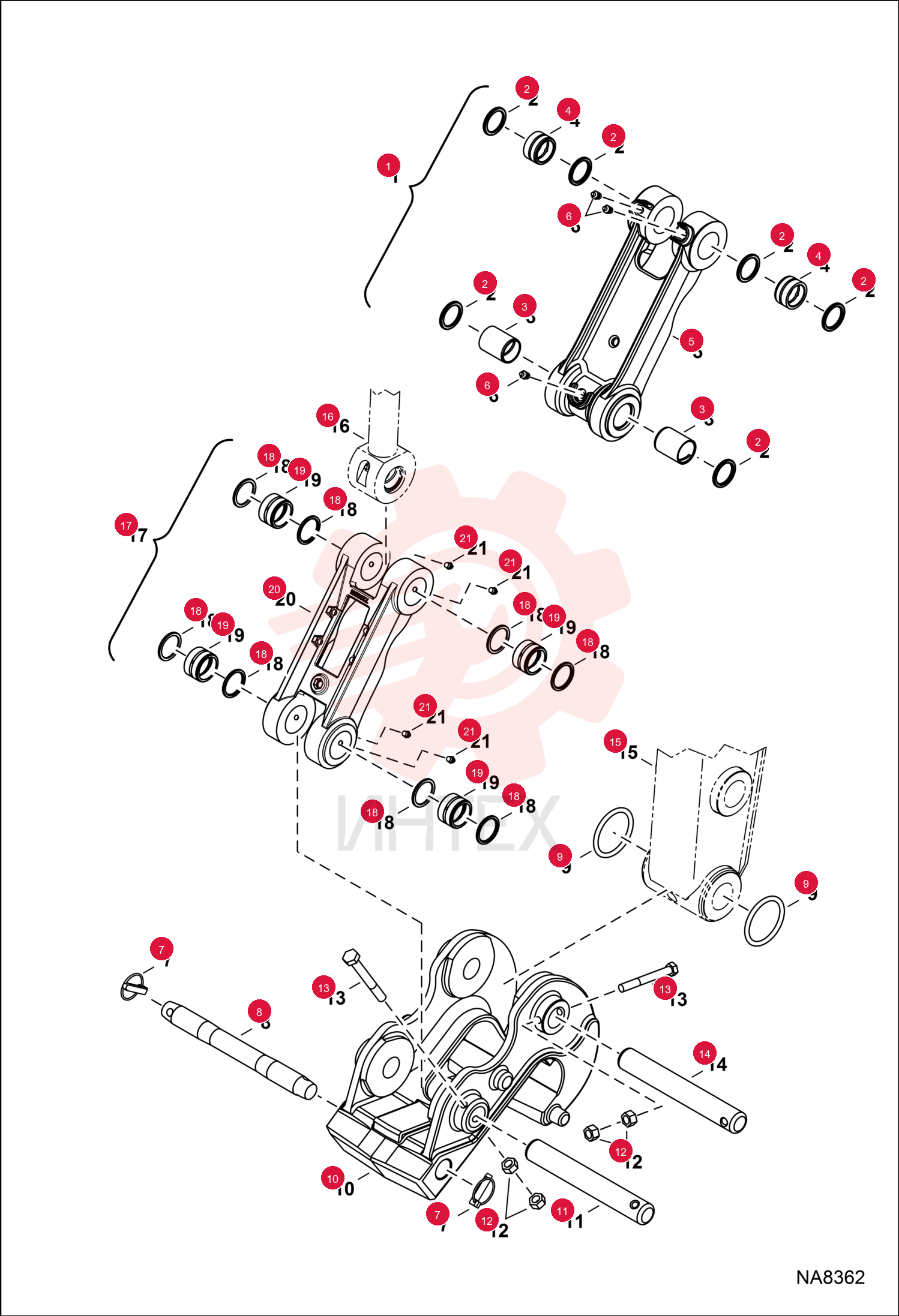

SEAL 6669287 (3)

SEAL 6669287 (3)

SEAL 6669287 (3)

1 6669287

  • 6669287 - SEAL

2 7172745

  • 7172745 - BUSHING
  • WEAR

3 7173292

  • 7173292 - BUSHING
  • WEAR

4 10H25

  • 10H25 - FTG GREASE STRAIGHT

5 6563082

  • 6563082 - CROSS MEM

6 7137214

  • 7137214 - PIN

7 7143561

  • 7143561 - O-RING
  • 81
  • 9 mm (3.23") ID

8 7204274

  • 7204274 - X-CHANGE
  • PIN-ON

9 7143036

  • 7143036 - PIN
  • PIVOT

10 43DM10

  • 43DM10 - NUT FLANGED HEX

11 7CM12100

  • 7CM12100 - BOLT

12 7143036

  • 7143036 - PIN
  • PIVOT
  • 278.7 mm (10.97") long

13 7236787

  • 7236787 - LINK ASSEMBLY
  • Ref. 18-21

14 6669287

  • 6669287 - SEAL

15 7173292

  • 7173292 - BUSHING
  • WEAR

16 10H25

  • 10H25 - FTG GREASE STRAIGHT
