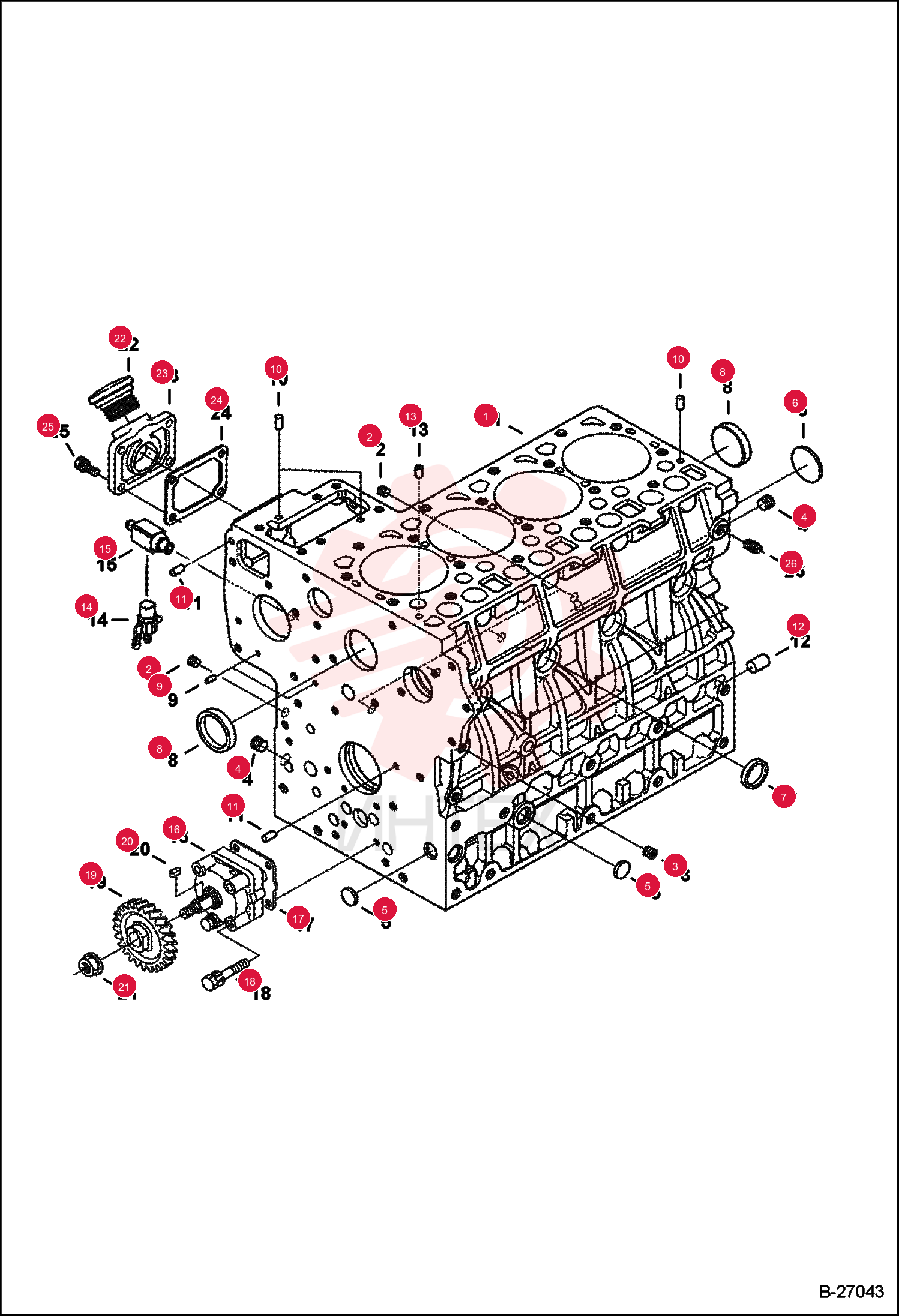

CRANKCASE 6686044 (2)

CRANKCASE 6686044 (2)

CRANKCASE 6686044 (2)

1 6686044

  • 6686044 - CRANKCASE
  • W/Ref. 2-13

2 6652574

  • 6652574 - PLUG

3 6655869

  • 6655869 - PLUG

4 6652575

  • 6652575 - PLUG

5 6667418

  • 6667418 - PLUG

6 6657663

  • 6657663 - PLUG

7 3974389

  • 3974389 - PLUG

8 3974390

  • 3974390 - PLUG

9 3974393

  • 3974393 - PIN
  • straight

10 3974394

  • 3974394 - PIN

11 3974395

  • 3974395 - PIN

12 3974868

  • 3974868 - PIN

13 3974037

  • 3974037 - PIN

14 6672190

  • 6672190 - VALVE
  • DRAIN

15 6678946

  • 6678946 - FITTING
  • ADAPTER
  • drain cock

16 6689441

  • 6689441 - НАСОС МАСЛЯНЫЙ
  • BOBCAT

17 1547135010

  • 1547135010 - НАСОС МАСЛЯНЫЙ
  • KUBOTA

18 1547135012

  • 1547135012 - НАСОС МАСЛЯНЫЙ
  • KUBOTA

19 1547135013

  • 1547135013 - НАСОС МАСЛЯНЫЙ
  • KUBOTA

20 253704000

  • 253704000 - НАСОС МАСЛЯНЫЙ
  • CARRIER

21 PO60000

  • PO60000 - НАСОС МАСЛЯНЫЙ
  • AUTOWELT

22 6666782

  • 6666782 - GASKET
  • oil pump

23 6670770

  • 6670770 - BOLT

24 7015262

  • 7015262 - GEAR
  • OIL PUMP DRIVE

25 6969805

  • 6969805 - KEY
  • FEATHER

26 6653888

  • 6653888 - NUT

27 7015273

  • 7015273 - PLUG
  • FILL
  • no text

28 6685478

  • 6685478 - FLANGE
  • oil filler

29 6666783

  • 6666783 - GASKET
  • oil filler flange

30 6652580

  • 6652580 - BOLT

31 16F2

  • 16F2 - PLUG
