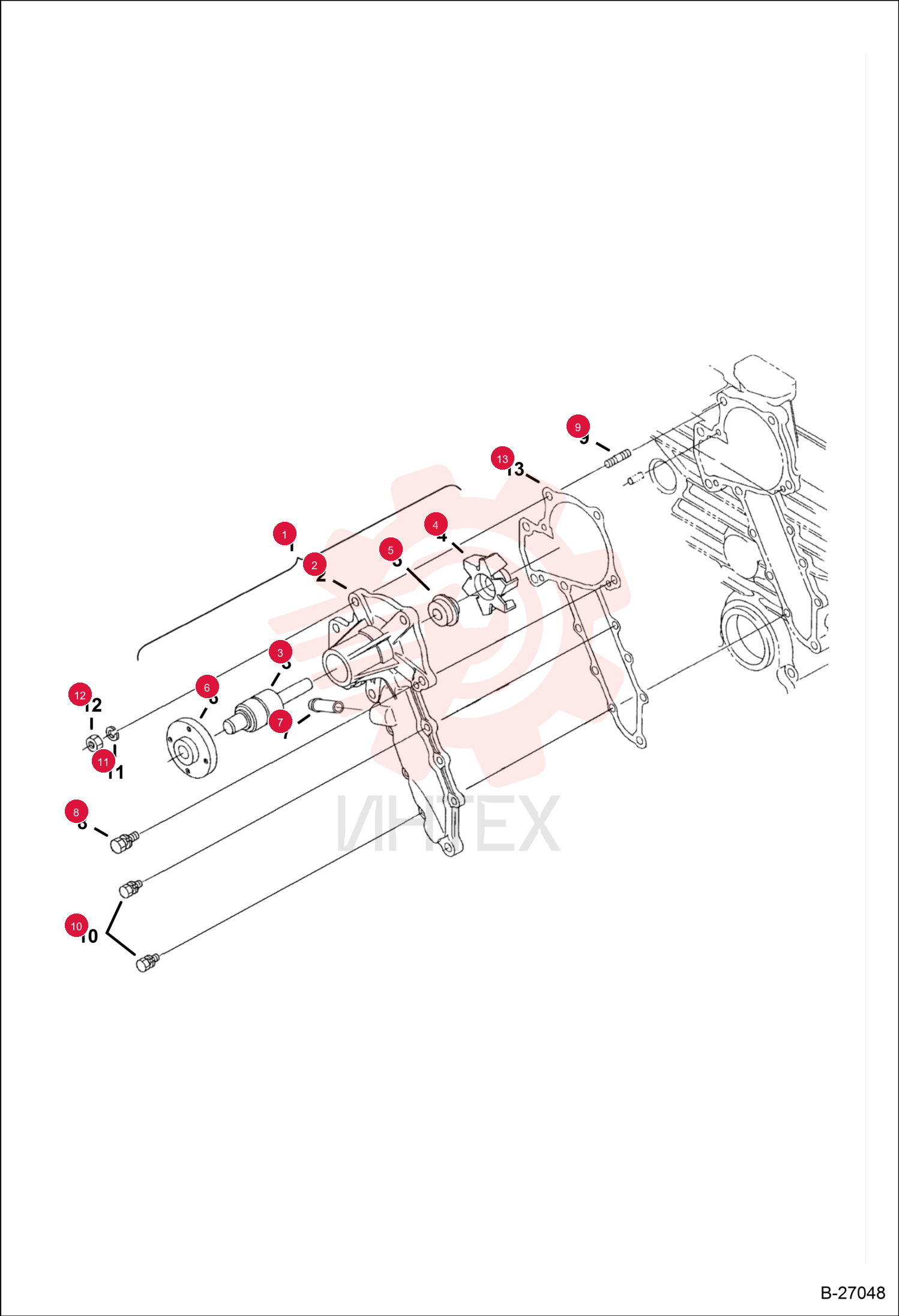

PUMP, WATER 6684865 (1)

PUMP, WATER 6684865 (1)

PUMP, WATER 6684865 (1)

1 6684865

  • 6684865 - PUMP
  • WATER
  • Ref. 2 - 6

2 3974991

  • 3974991 - BEARING

3 6667460

  • 6667460 - IMPELLER
  • water pump

4 6684868

  • 6684868 - SEAL
  • mechanical

5 6684869

  • 6684869 - FLANGE

6 6670785

  • 6670785 - ADAPTER
  • water return

7 6969808

  • 6969808 - BOLT

8 3974267

  • 3974267 - STUD

9 6652580

  • 6652580 - BOLT

10 6667422

  • 6667422 - WASHER
  • spring

11 6652792

  • 6652792 - NUT

12 6684870

  • 6684870 - GASKET
  • water pump
