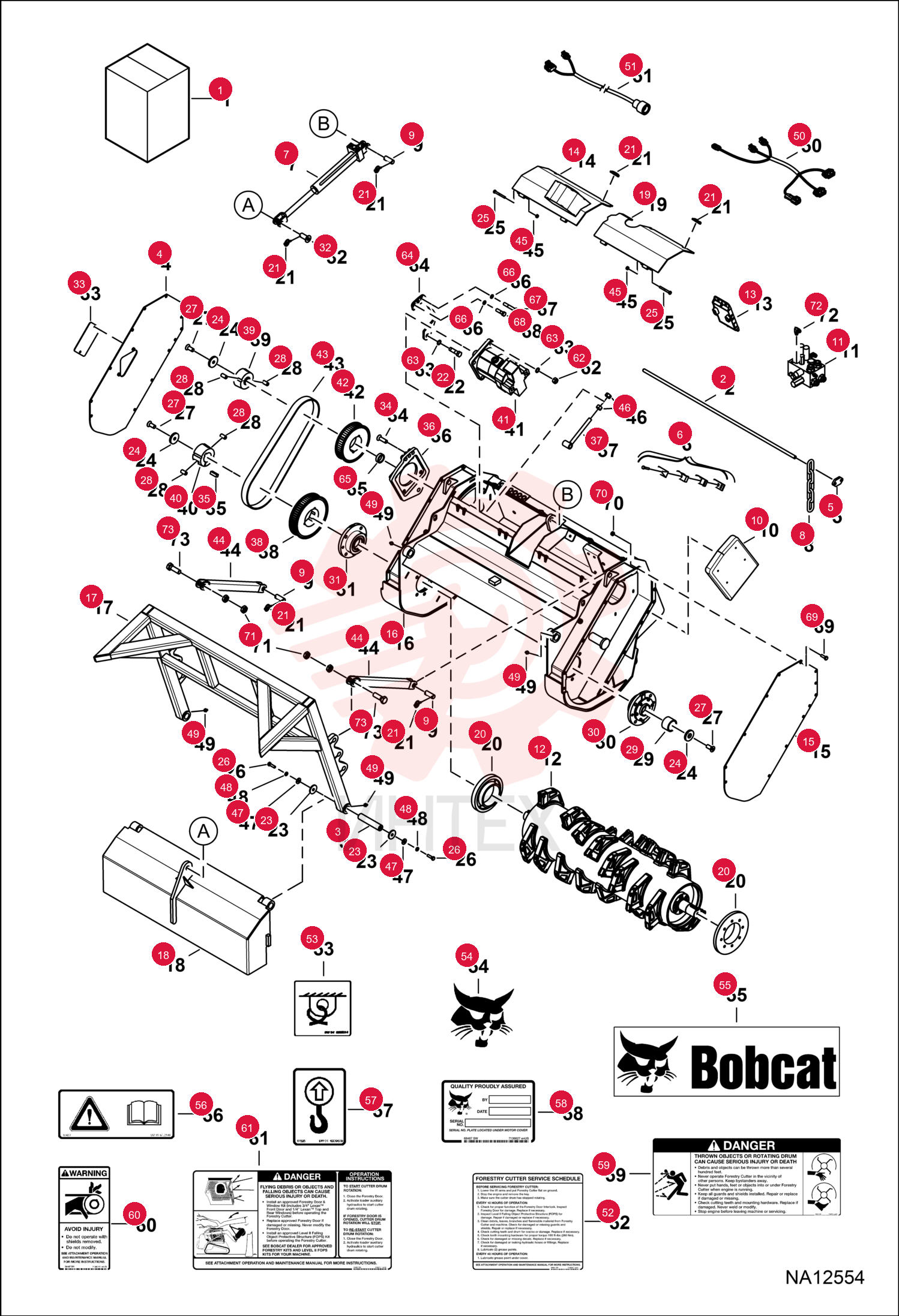

ROD 7020402 (2)

ROD 7020402 (2)

ROD 7020402 (2)

1 7020402

  • 7020402 - ROD

2 7020403

  • 7020403 - PIN
  • Use W/gate option & push bar

3 7020404

  • 7020404 - COVER
  • BELT

4 7020405

  • 7020405 - RETAINER
  • HOLDER

5 6693194

  • 6693194 - CLAMP

6 7013174

  • 7013174 - CHAIN

7 7003504

  • 7003504 - PIN

8 7020407

  • 7020407 - HOLDER
  • MANUAL

9 6678675

  • 6678675 - CONTROLLER
  • ACD DLX
  • 3 connector

10 7020411

  • 7020411 - COVER
  • MOTOR
  • Ref. 19 & 22-27 - RH - W/pressure gauge & fittings

11 7020412

  • 7020412 - COVER
  • BELT

12 7020414

  • 7020414 - BAR

13 7020415

  • 7020415 - GATE

14 7020416

  • 7020416 - COVER
  • MOTOR
  • LH

15 7023554

  • 7023554 - FLANGE
  • ROTOR

16 7020418

  • 7020418 - PIN

17 7023574

  • 7023574 - BOLT

18 6692588

  • 6692588 - WASHER

19 6692589

  • 6692589 - WASHER

20 7020419

  • 7020419 - BOLT

21 7020420

  • 7020420 - BOLT

22 7020422

  • 7020422 - BOLT

23 7020423

  • 7020423 - BOLT

24 6692591

  • 6692591 - SPACER

25 6692593

  • 6692593 - PIN

26 6692594

  • 6692594 - COVER
  • ACCESS

27 7023572

  • 7023572 - BOLT

28 6692597

  • 6692597 - KEY
  • BH056-18

29 7023564

  • 7023564 - MOUNT
  • MOTOR ASSY

30 6692599

  • 6692599 - TENSIONER

31 7023555

  • 7023555 - PULLEY

32 7023557

  • 7023557 - BUSHING

33 7023558

  • 7023558 - BUSHING

34 7023556

  • 7023556 - PULLEY

35 7023559

  • 7023559 - BELT
  • DRIVE

36 6692606

  • 6692606 - BAR

37 7020424

  • 7020424 - NUT

38 7020426

  • 7020426 - WASHER

39 7020427

  • 7020427 - WASHER

40 7020428

  • 7020428 - FITTING
  • GREASE

41 7135123

  • 7135123 - HARNESS

42 6725368

  • 6725368 - HARNESS
  • ACD INPUT
  • 7-pin

43 7210797

  • 7210797 - DECAL
  • SERVICE

44 6595014

  • 6595014 - DECAL
  • tie down

45 6700191

  • 6700191 - DECAL
  • LOGO BOBCAT HEAD

46 6731332

  • 6731332 - DECAL
  • LOGO BOBCAT AND HEAD
  • logo

47 6732148

  • 6732148 - DECAL
  • op manual

48 6809609

  • 6809609 - DECAL
  • LIFT

49 7136627

  • 7136627 - DECAL
  • quality

50 7136715

  • 7136715 - DECAL
  • danger

51 7136716

  • 7136716 - DECAL
  • warning

52 7136717

  • 7136717 - DECAL
  • danger

53 7023565

  • 7023565 - NUT

54 7023566

  • 7023566 - WASHER

55 7023568

  • 7023568 - MOUNT
  • MOTOR ASSY
  • inner

56 7023569

  • 7023569 - SPACER

57 7020618

  • 7020618 - WASHER

58 7023570

  • 7023570 - BOLT

59 7023571

  • 7023571 - BOLT

60 7023867

  • 7023867 - BOLT

61 7310330

  • 7310330 - NUT JAM

62 7246252

  • 7246252 - FITTING
  • ELBOW
  • orifice

63 7310329

  • 7310329 - PIN SHAFT
