Bobcat
/
Forestry Cutter
/

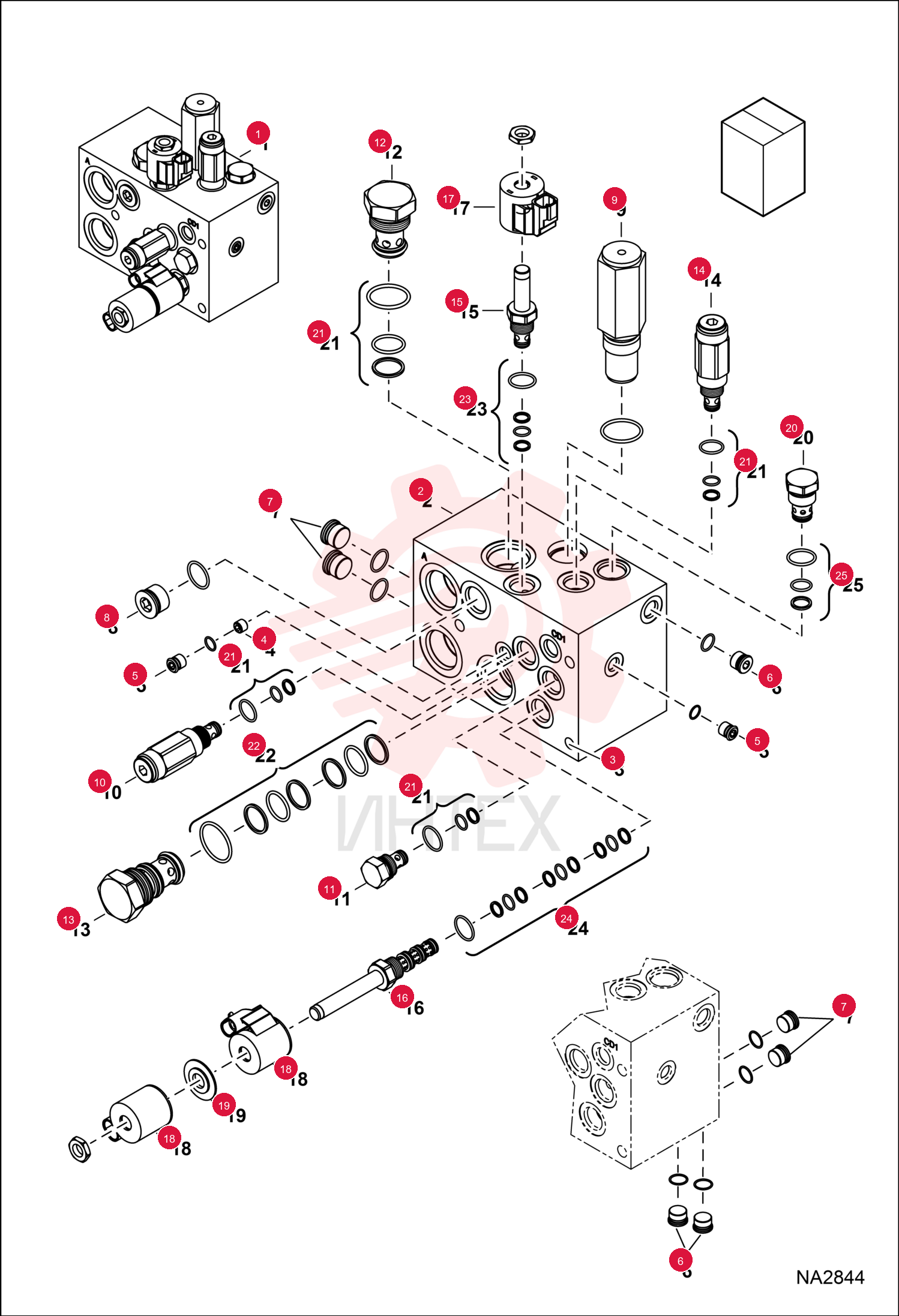

VALVE 7196485 (4)

VALVE 7196485 (4)

VALVE 7196485 (4)

1 7196485

  • 7196485 - VALVE

2 6678085

  • 6678085 - ORIFICE

3 6665719

  • 6665719 - PLUG
  • Was 6669727

4 6669620

  • 6669620 - PLUG

5 6674548

  • 6674548 - PLUG

6 6678563

  • 6678563 - PLUG

7 6692732

  • 6692732 - RELIEF VALVE

8 6692733

  • 6692733 - RELIEF VALVE

9 6664026

  • 6664026 - VALVE
  • CHECK

10 6692734

  • 6692734 - CHECK VALVE

11 6674442

  • 6674442 - VALVE

12 6675394

  • 6675394 - RELIEF VALVE

13 6692735

  • 6692735 - SOLENOID VALVE
  • enable

14 6677153

  • 6677153 - SOLENOID
  • VALVE
  • Was 6673830

15 6691649

  • 6691649 - COIL

16 6688356

  • 6688356 - COIL
  • Was 6688359

17 6689389

  • 6689389 - SPACER

18 7020645

  • 7020645 - VALVE
  • CHECK

19 6672515

  • 6672515 - KIT
  • SEAL
  • Was 6670635

20 6677156

  • 6677156 - KIT
  • SEAL
  • Was 6676065

21 6689083

  • 6689083 - KIT
  • Was 6689083

22 6672756

  • 6672756 - KIT
  • SEAL
  • Was 6673835

23 6673213

  • 6673213 - SEAL KIT
  • Was 6664032
