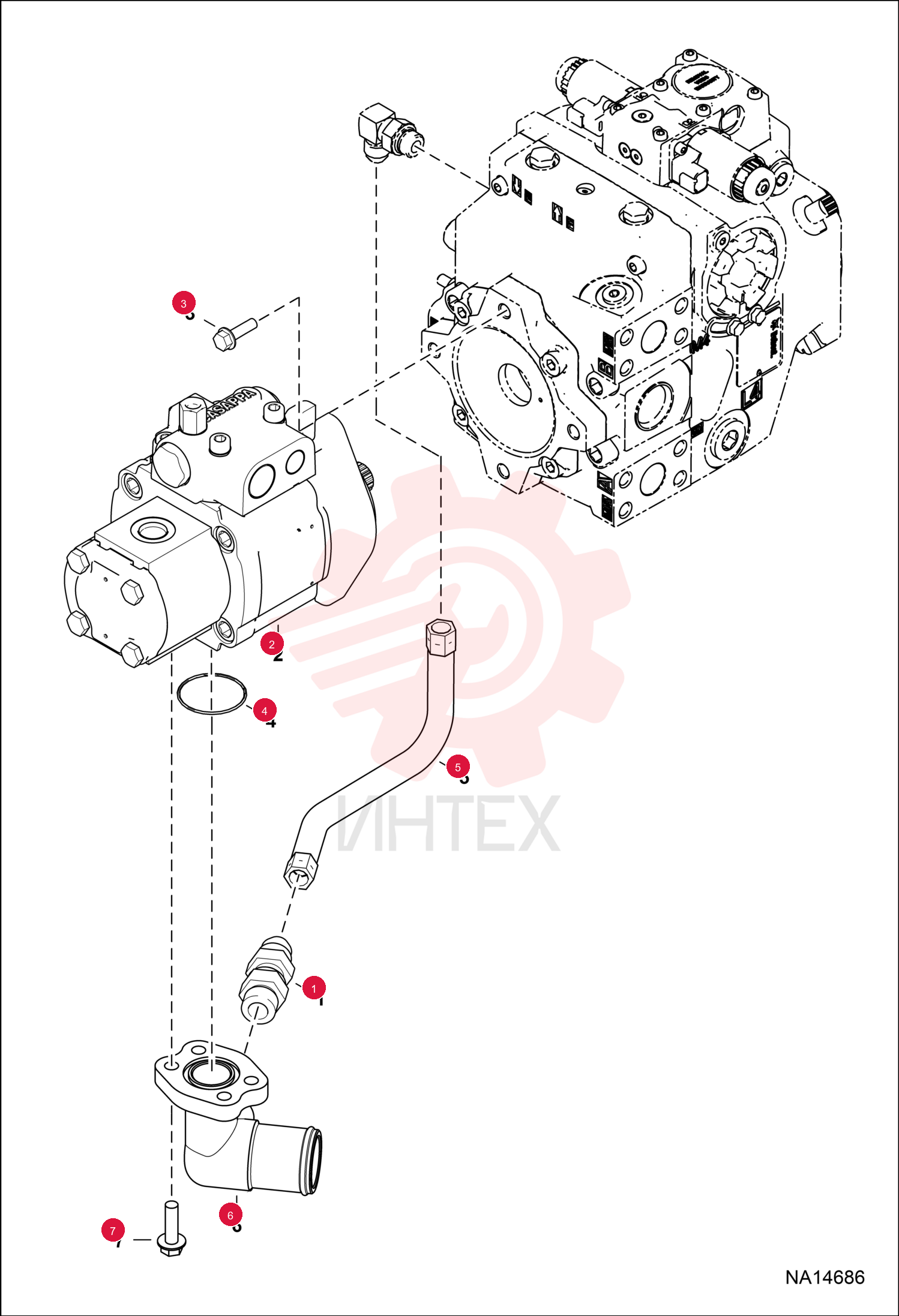

VALVE, CHECK 7170303

VALVE, CHECK 7170303

VALVE, CHECK 7170303

1 7170303

  • 7170303 - VALVE
  • CHECK

2 7221246

  • 7221246 - PUMP
  • GEAR

3 29CM1230

  • 29CM1230 - BOLT

4 58K222

  • 58K222 - O RING 10

5 7199989

  • 7199989 - TUBELINE HYDRAULIC

6 7251713

  • 7251713 - FITTING
  • HYD CONNECTOR

7 29CM1035

  • 29CM1035 - SCREW HEX 10MMX35MM
