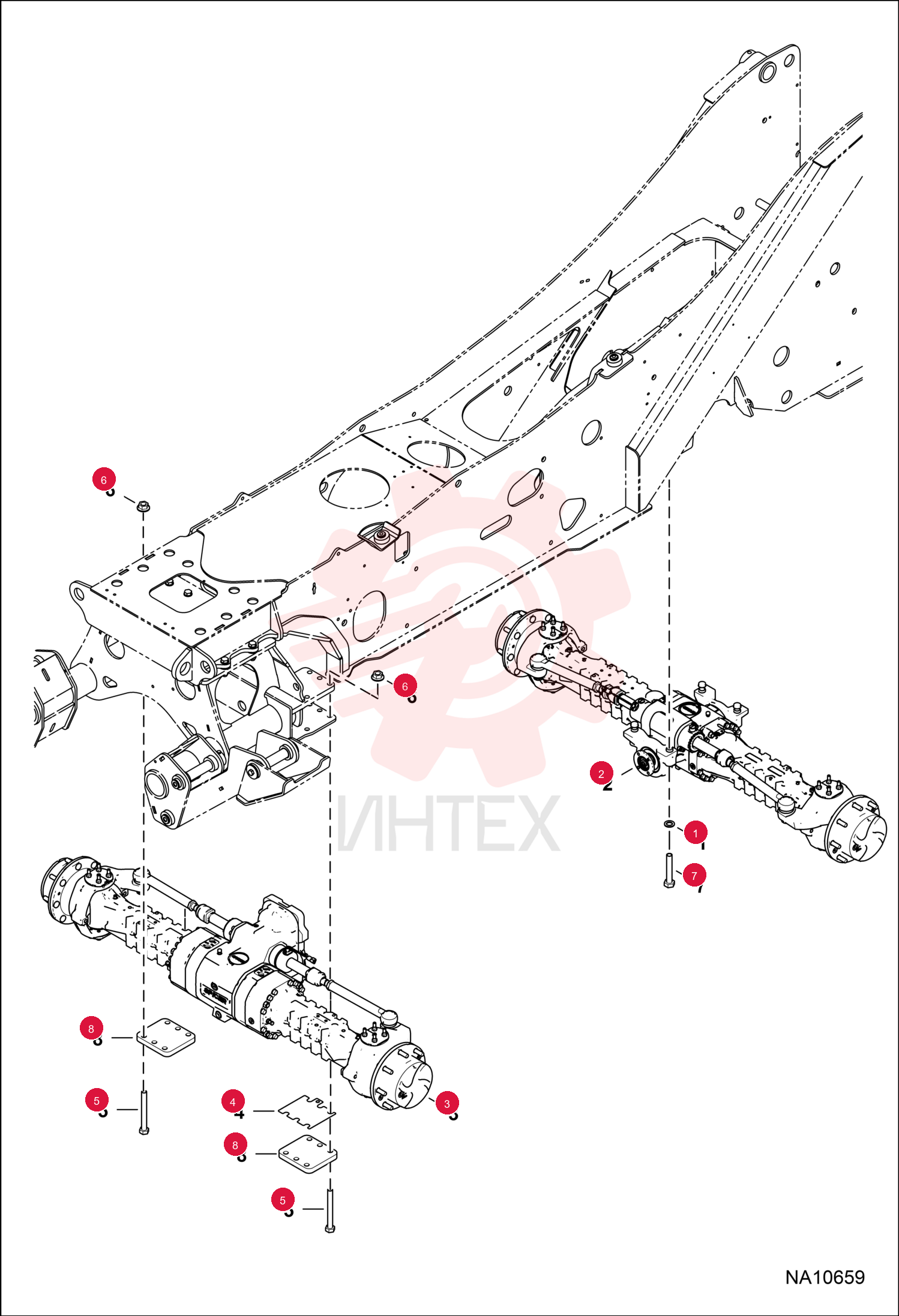

WASHER 7197622 (10)

WASHER 7197622 (10)

WASHER 7197622 (10)

1 7197622

  • 7197622 - WASHER

2 7214984

  • 7214984 - AXLE
  • REAR

3 7214985

  • 7214985 - AXLE
  • FRONT

4 7225544

  • 7225544 - PLATE SUPPORT

5 7CM20250

  • 7CM20250 - BOLT FLANGE

6 43DM20

  • 43DM20 - NUT

7 7CM20120

  • 7CM20120 - SCREW

8 7238622

  • 7238622 - PATCH
  • STABILIZATION
