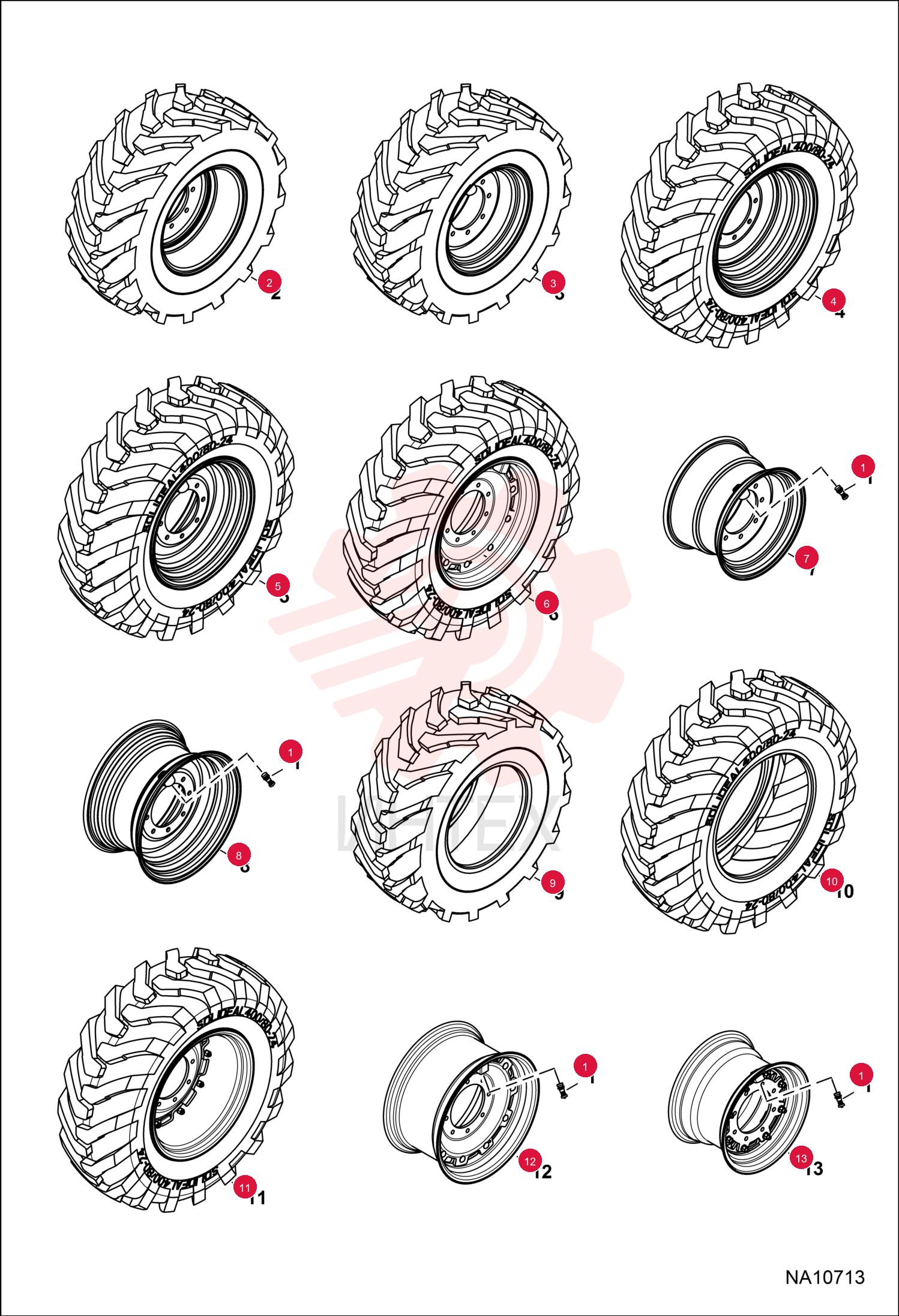

VALVE 7192607 (1)

VALVE 7192607 (1)

VALVE 7192607 (1)

1 7192607

  • 7192607 - VALVE

2 7253907

  • 7253907 - WHEEL
  • TIRE ASSY

3 7253908

  • 7253908 - WHEEL
  • TIRE ASSY

4 7214829

  • 7214829 - WHEEL ASSY
  • RH

5 7230671

  • 7230671 - WHEEL ASSY
  • RH

6 7214830

  • 7214830 - WHEEL ASSY
  • LH

7 7230670

  • 7230670 - WHEEL ASSY
  • LH

8 7228986

  • 7228986 - WHEEL ASSY
  • LH

9 7277453

  • 7277453 - WHEEL
  • TIRE ASSY

10 7240282

  • 7240282 - WHEEL
  • RIM

11 7214831-O

  • 7214831-O - RIM

12 7253906

  • 7253906 - TIRE SOL 405/70-20 PR16

13 7176736

  • 7176736 - TIRE

14 7230672

  • 7230672 - TIRE 400/80-24

15 7228987

  • 7228987 - WHEEL ASSY
  • RH

16 7277452

  • 7277452 - WHEEL
  • TIRE ASSY

17 7286151

  • 7286151 - PIN
  • FLEX

18 7009155

  • 7009155 - NUT

19 7009156

  • 7009156 - WASHER

20 7009154

  • 7009154 - SCREW

21 7228982-O

  • 7228982-O - RIM

22 7286149

  • 7286149 - PIN
  • FLEX

23 7286150

  • 7286150 - NUT

24 7009156

  • 7009156 - WASHER

25 7009154

  • 7009154 - SCREW

26 7266020

  • 7266020 - WHEEL
  • RIM
