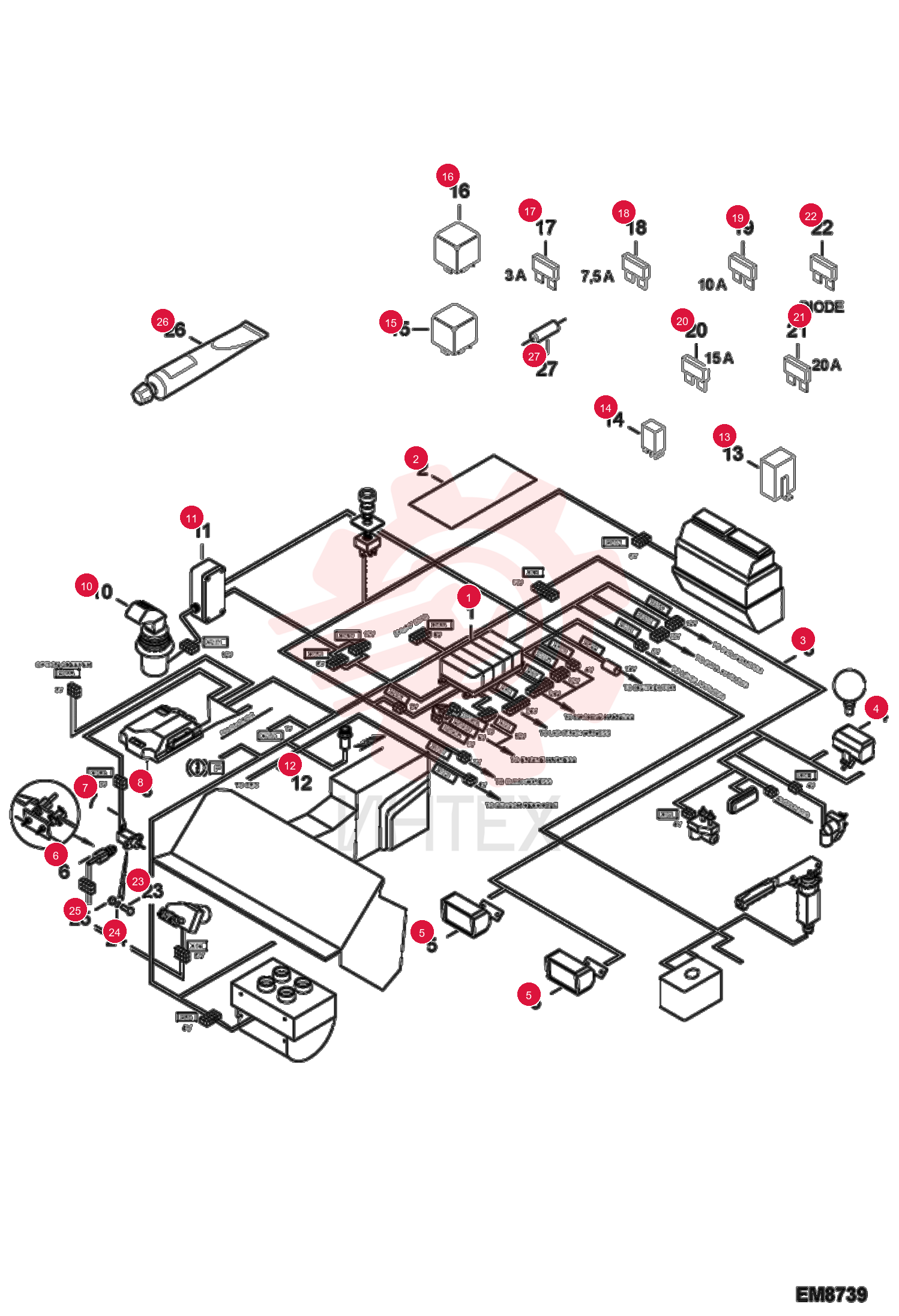

HARNESS CAB 6916967 (1)

HARNESS CAB 6916967 (1)

HARNESS CAB 6916967 (1)

1 6916967

  • 6916967 - HARNESS CAB

2 6916963

  • 6916963 - DECAL

3 97236.4

  • 97236.4 - Wire Harness

4 6960571

  • 6960571 - BULB HALOGEN

5 78816.6

  • 78816.6 - Rear worklight

6 78815.8

  • 78815.8 - Front worklight

7 6960571

  • 6960571 - BULB HALOGEN

8 6918227

  • 6918227 - SWITCH DETECTOR

9 6909383

  • 6909383 - SENSOR
  • INCHING

10 96038.5

  • 96038.5 - Transmission box

11 6915268

  • 6915268 - MANIPULATOR

12 6922919

  • 6922919 - BCC 570

13 6913764

  • 6913764 - INDICATOR

14 96623.4

  • 96623.4 - Turn signal relay

15 6910955

  • 6910955 - RELAY
  • MICRO

16 79930.4

  • 79930.4 - Relay

17 100411-05U

  • 100411-05U - RELAY

18 64120.9

  • 64120.9 - Fuse

19 57792.4

  • 57792.4 - Fuse

20 57752.8

  • 57752.8 - Fuse

21 57793.2

  • 57793.2 - Fuse

22 57753.6

  • 57753.6 - Fuse

23 80226.4

  • 80226.4 - Diode

24 7248549

  • 7248549 - NUT

25 6910952

  • 6910952 - WASHER JZC5

26 7248549

  • 7248549 - NUT

27 6901596

  • 6901596 - GREASE

28 101472-20M

  • 101472-20M - DIODE
