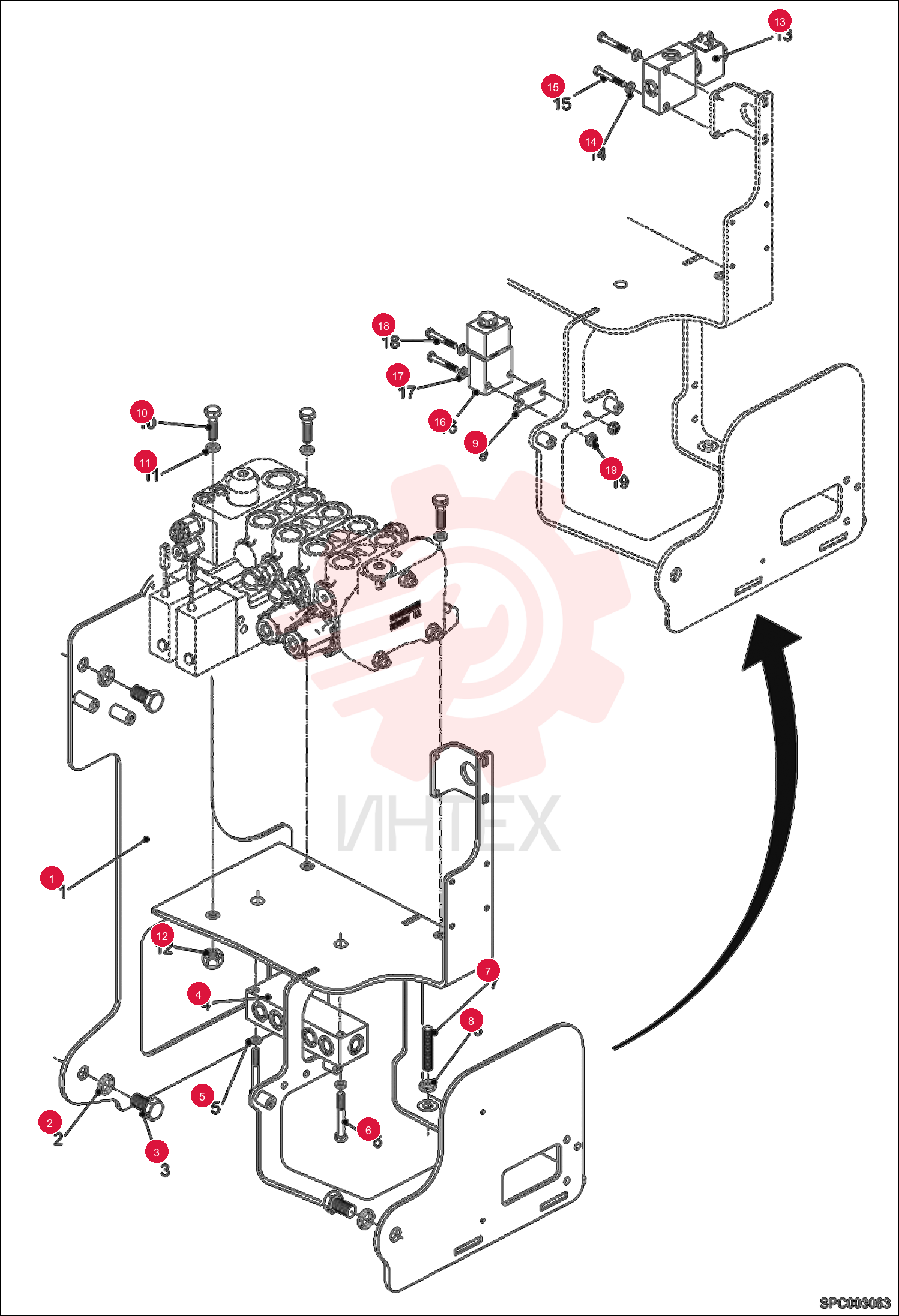

SUPPORT 6915837 (1)

SUPPORT 6915837 (1)

SUPPORT 6915837 (1)

1 6915837

  • 6915837 - SUPPORT

2 7235680

  • 7235680 - WASHER FLAT

3 1CM1630

  • 1CM1630 - BOLT

4 6917692

  • 6917692 - BLOCK HYDRAULIC

5 6910660

  • 6910660 - BLOCK HYDRAULIC

6 89519.3

  • 89519.3 - Washer

7 10947.0

  • 10947.0 - Screw

8 88946.9

  • 88946.9 - Screw

9 01683.2

  • 01683.2 - Nut

10 6912483

  • 6912483 - VALVE SPACER

11 1CM1040

  • 1CM1040 - BOLT

12 000350-21R

  • 000350-21R - WASHER

13 7252655

  • 7252655 - NUT LOCK

14 6910208

  • 6910208 - VALVE 3/2 CE12V

15 94574.1

  • 94574.1 - Washer

16 000326-25M

  • 000326-25M - SCREW

17 6911845

  • 6911845 - SOLENOID 2-2

18 000350-01U

  • 000350-01U - WASHER

19 1CM650

  • 1CM650 - SCREW HEX CAP

20 100345-06W

  • 100345-06W - NUT
