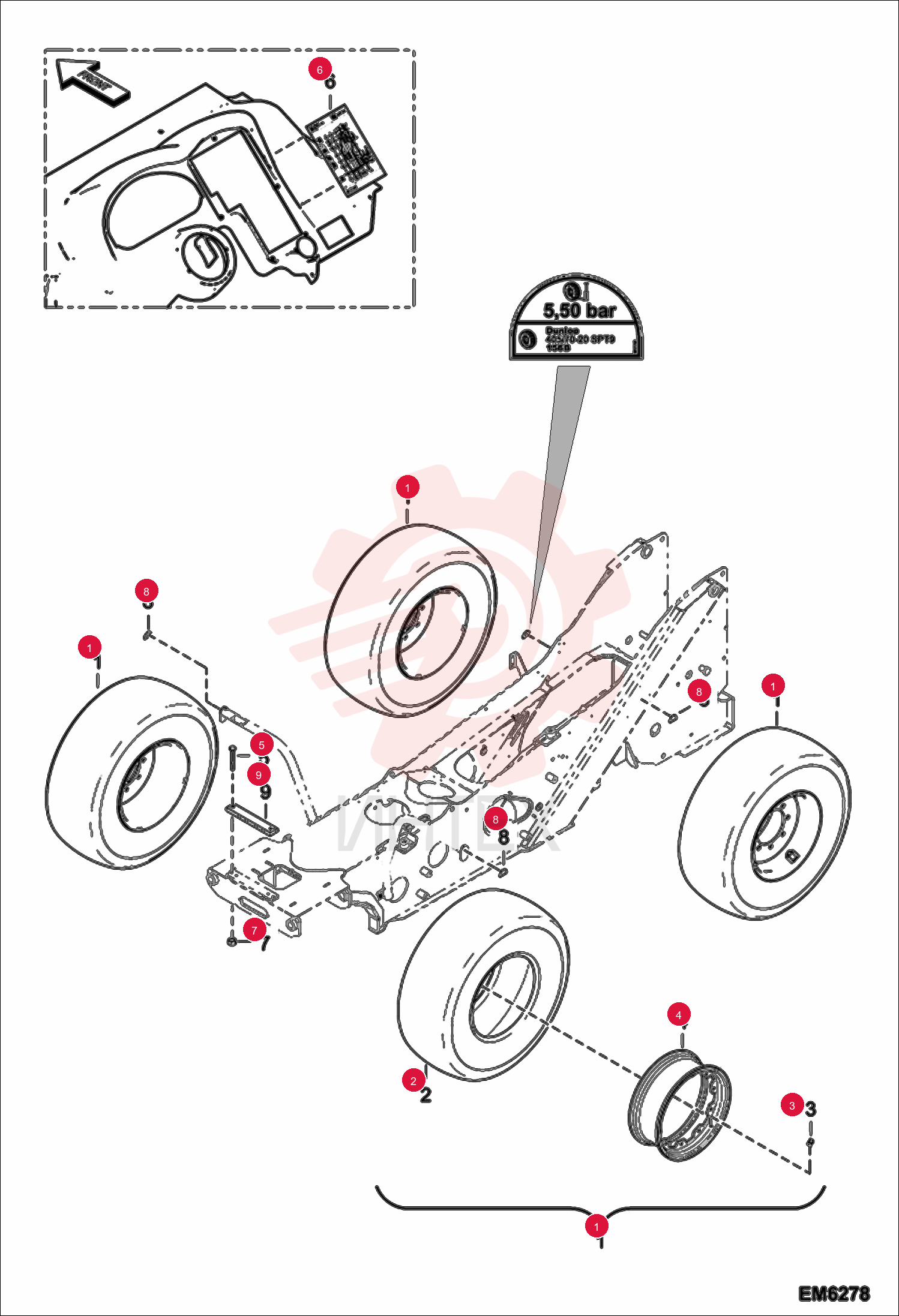

WHEEL ASSY 6915904-O (2)

WHEEL ASSY 6915904-O (2)

WHEEL ASSY 6915904-O (2)

1 6915904-O

  • 6915904-O - WHEEL ASSY

2 7192649

  • 7192649 - TIRE
  • DUNLOP

3 7192607

  • 7192607 - VALVE

4 6914895-O

  • 6914895-O - RIM

5 1CM1040

  • 1CM1040 - BOLT

6 6912313

  • 6912313 - Abacus card

7 6912312

  • 6912312 - Abacus card

8 7252655

  • 7252655 - NUT LOCK

9 6911019

  • 6911019 - SHIELD

10 6913019

  • 6913019 - ARM ABUTMENT
