T3571
/

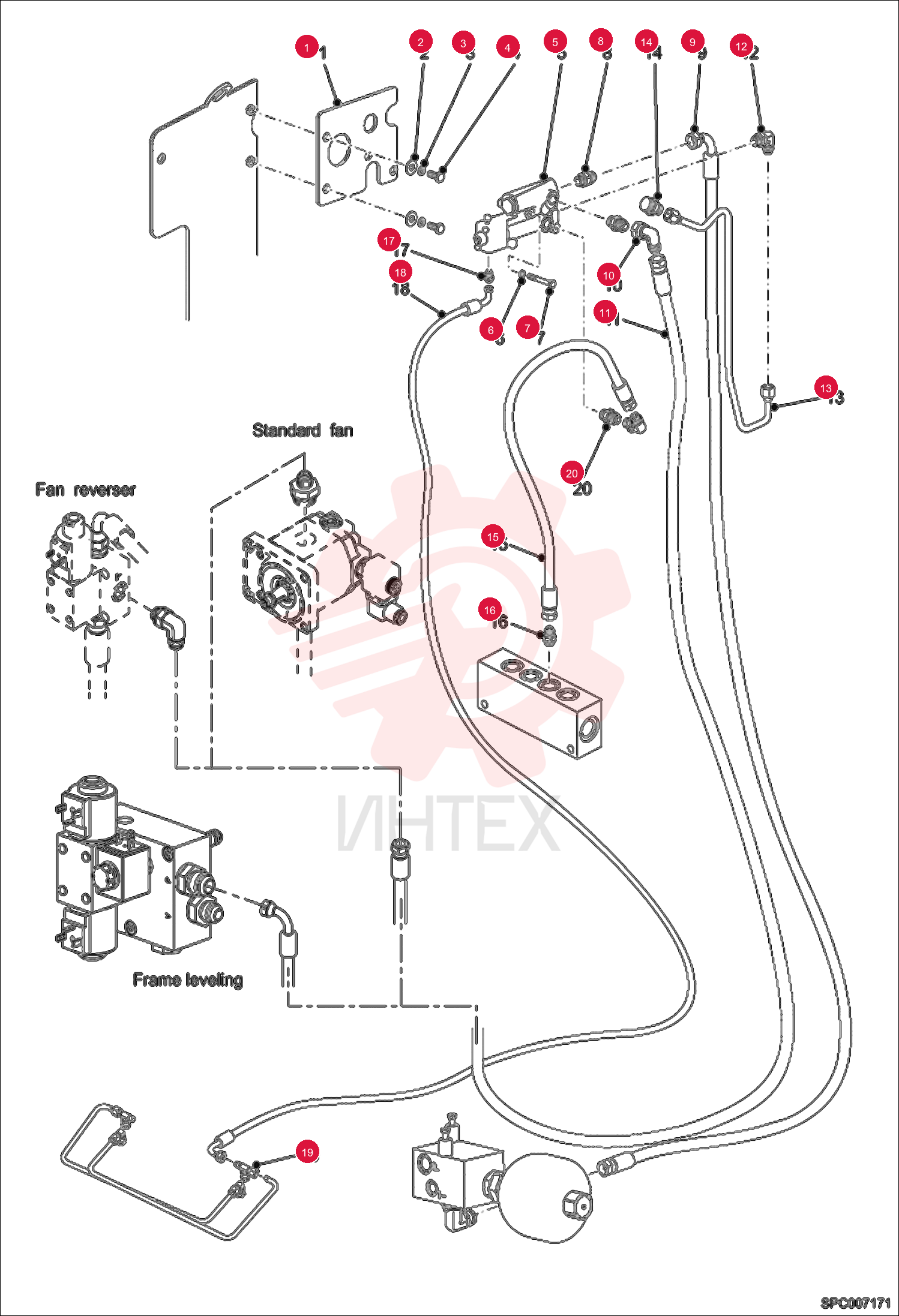

Support 6913021 (1)

Support 6913021 (1)

Support 6913021 (1)

1 6913021

  • 6913021 - Support

2 000350-21R

  • 000350-21R - WASHER

3 7225260

  • 7225260 - WASHER

4 1CM1025

  • 1CM1025 - BOLT

5 6915262

  • 6915262 - VALVE

6 89519.3

  • 89519.3 - Washer

7 10947.0

  • 10947.0 - Screw

8 96568.1

  • 96568.1 - Union

9 6913684

  • 6913684 - Hose

10 010370-90W

  • 010370-90W - ELBOW PIECE

11 6917394

  • 6917394 - HOSE

12 6916961

  • 6916961 - HOSE

13 7228465

  • 7228465 - FITTING

14 6917437

  • 6917437 - Tube

15 79170.7

  • 79170.7 - Coupling

16 6913650

  • 6913650 - Hose

17 7229423

  • 7229423 - FITTING

18 96505.3

  • 96505.3 - Union

19 6910779

  • 6910779 - Hose

20 100372-06G

  • 100372-06G - UNION

21 100375-56M

  • 100375-56M - UNION
