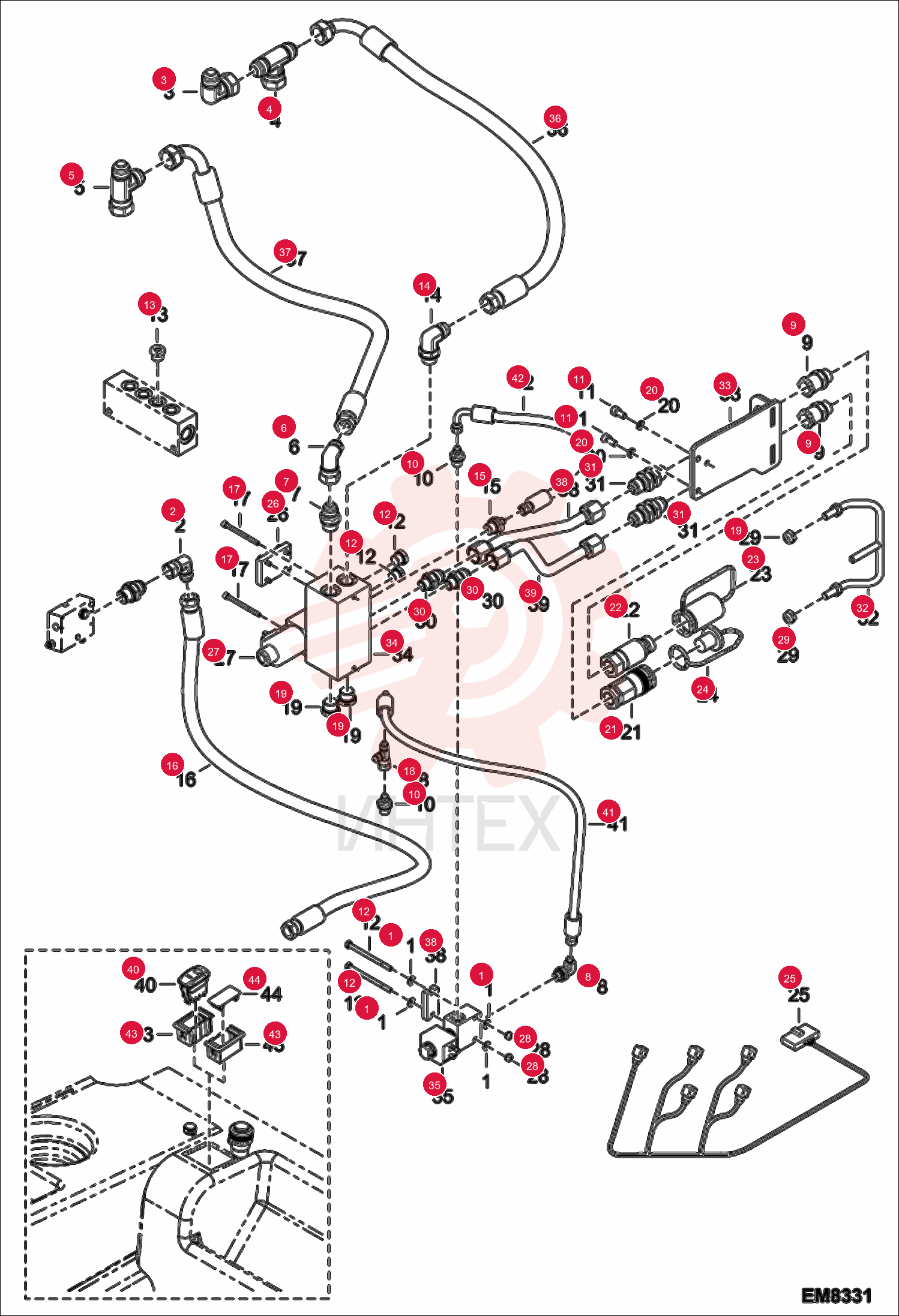

WASHER 000350-01U (8)

WASHER 000350-01U (8)

WASHER 000350-01U (8)

1 000350-01U

  • 000350-01U - WASHER

2 008372-01B

  • 008372-01B - ELBOW PIECE

3 008372-14Q

  • 008372-14Q - ELBOW

4 008372-21X

  • 008372-21X - TEE

5 008372-34M

  • 008372-34M - UNION

6 010370-90W

  • 010370-90W - ELBOW PIECE

7 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

8 015370-11P

  • 015370-11P - ELBOW PIECE

9 7225156

  • 7225156 - FITTING
  • HYD

10 022375-28V

  • 022375-28V - UNION

11 6GM816

  • 6GM816 - SCREW HEX SOCKT 10.9

12 1CM650

  • 1CM650 - SCREW HEX CAP

13 56029.2

  • 56029.2 - Plug

14 7244882

  • 7244882 - FITTING HYDRAULIC

15 65614.0

  • 65614.0 - Union

16 65715.5

  • 65715.5 - Hose

17 74602.4

  • 74602.4 - Hose

18 68566.9

  • 68566.9 - Screw

19 69485.1

  • 69485.1 - T- union

20 78743.2

  • 78743.2 - Drain plug

21 89519.3

  • 89519.3 - Washer

22 7225158

  • 7225158 - COUPLER

23 7225159

  • 7225159 - COUPLER

24 7225160

  • 7225160 - CAP

25 7225161

  • 7225161 - CAP

26 96589.7

  • 96589.7 - Wire harness

27 98353.6

  • 98353.6 - Plate

28 98360.1

  • 98360.1 - SOLENOID

29 100345-06W

  • 100345-06W - NUT

30 7252655

  • 7252655 - NUT LOCK

31 100375-39T

  • 100375-39T - UNION 7/8 JIC 3/8 BSP

32 100375-52H

  • 100375-52H - UNION

33 6910517

  • 6910517 - PROTECTOR

34 6910523

  • 6910523 - SUPPORT

35 6911079

  • 6911079 - HYDRAULIC BLOCK

36 6911845

  • 6911845 - SOLENOID 2-2

37 6913675

  • 6913675 - FLEXIBLE

38 6913675

  • 6913675 - FLEXIBLE

39 6922003

  • 6922003 - HYDRAULIC TUBE

40 6922004

  • 6922004 - HYDRAULIC TUBE

41 6927725

  • 6927725 - SWITCH
  • REAR HYD

42 6933605

  • 6933605 - HOSE
  • HYD

43 6933606

  • 6933606 - HOSE
  • HYD

44 7178511

  • 7178511 - SOCKET
  • END

45 7178513

  • 7178513 - CAP
  • SOCKET
