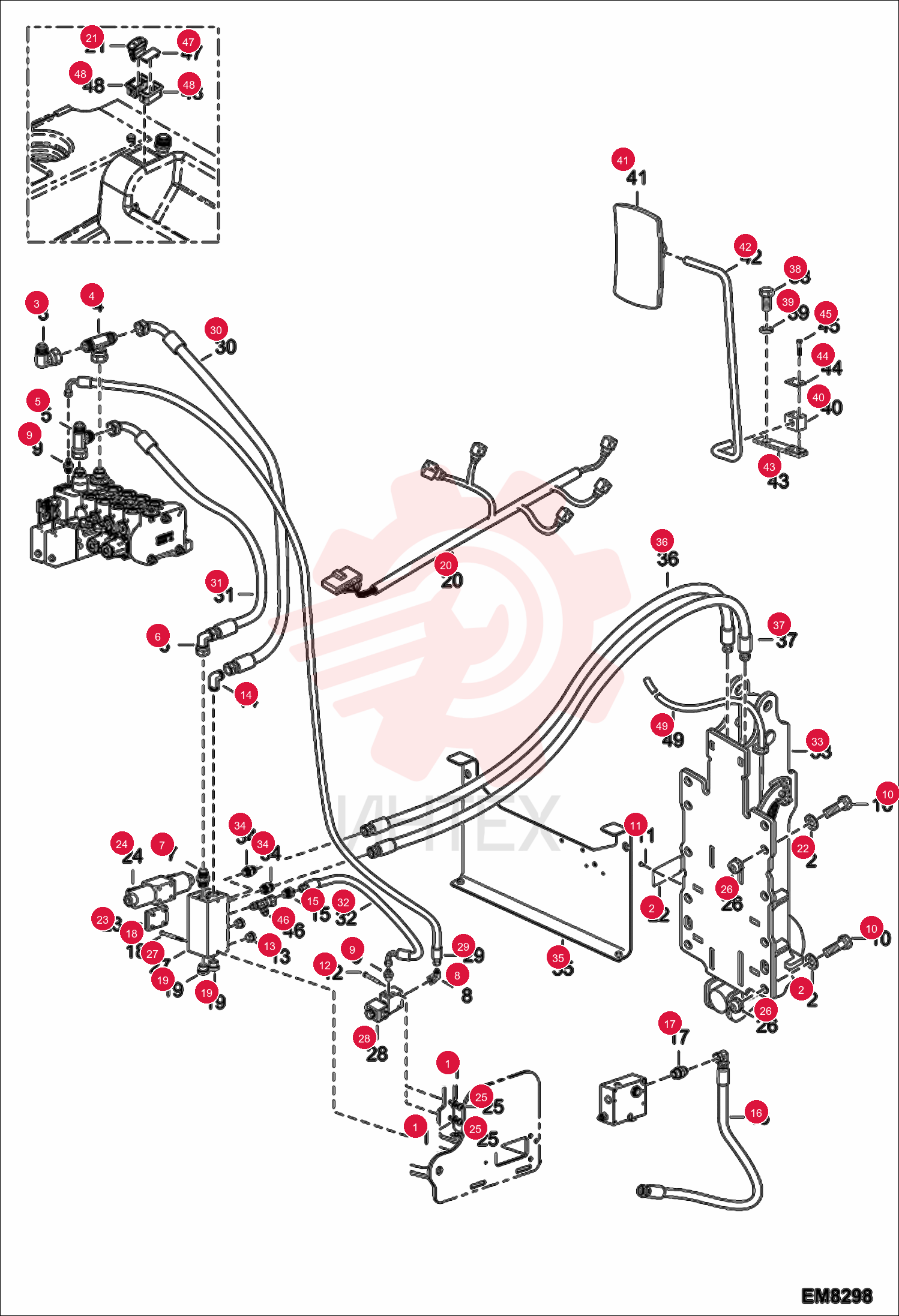

WASHER 000350-01U (13)

WASHER 000350-01U (13)

WASHER 000350-01U (13)

1 000350-01U

  • 000350-01U - WASHER

2 000350-08C

  • 000350-08C - WASHER

3 008372-14Q

  • 008372-14Q - ELBOW

4 008372-21X

  • 008372-21X - TEE

5 008372-34M

  • 008372-34M - UNION

6 010370-90W

  • 010370-90W - ELBOW PIECE

7 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

8 022375-28V

  • 022375-28V - UNION

9 1CM2060

  • 1CM2060 - SCREW

10 43824.2

  • 43824.2 - Rivet

11 1CM650

  • 1CM650 - SCREW HEX CAP

12 56029.2

  • 56029.2 - Plug

13 7244882

  • 7244882 - FITTING HYDRAULIC

14 65614.0

  • 65614.0 - Union

15 65715.5

  • 65715.5 - Hose

16 008372-01B

  • 008372-01B - ELBOW PIECE

17 68566.9

  • 68566.9 - Screw

18 78743.2

  • 78743.2 - Drain plug

19 96589.7

  • 96589.7 - Wire harness

20 6927721

  • 6927721 - SWITCH
  • HYD HOOK

21 98353.6

  • 98353.6 - Plate

22 98360.1

  • 98360.1 - SOLENOID

23 100345-06W

  • 100345-06W - NUT

24 100345-20M

  • 100345-20M - NUT

25 6911079

  • 6911079 - HYDRAULIC BLOCK

26 6911845

  • 6911845 - SOLENOID 2-2

27 6933605

  • 6933605 - HOSE
  • HYD

28 6913675

  • 6913675 - FLEXIBLE

29 6913675

  • 6913675 - FLEXIBLE

30 6933606

  • 6933606 - HOSE
  • HYD

31 6917366

  • 6917366 - HOOK

32 6919773

  • 6919773 - UNION

33 6922478

  • 6922478 - REAR HOOD

34 6925927

  • 6925927 - HOSE

35 6925927

  • 6925927 - HOSE

36 01620.4

  • 01620.4 - Screw

37 15323.9

  • 15323.9 - Washer

38 7179623

  • 7179623 - SLEEVE

39 63860.1

  • 63860.1 - Mirror

40 79300.0

  • 79300.0 - Pipe

41 84648.5

  • 84648.5 - Plate

42 100228-57K

  • 100228-57K - COVER

43 1CM635

  • 1CM635 - BOLT

44 69485.1

  • 69485.1 - T- union

45 7178513

  • 7178513 - CAP
  • SOCKET

46 7178511

  • 7178511 - SOCKET
  • END

47 7009791

  • 7009791 - CABLE PULL
