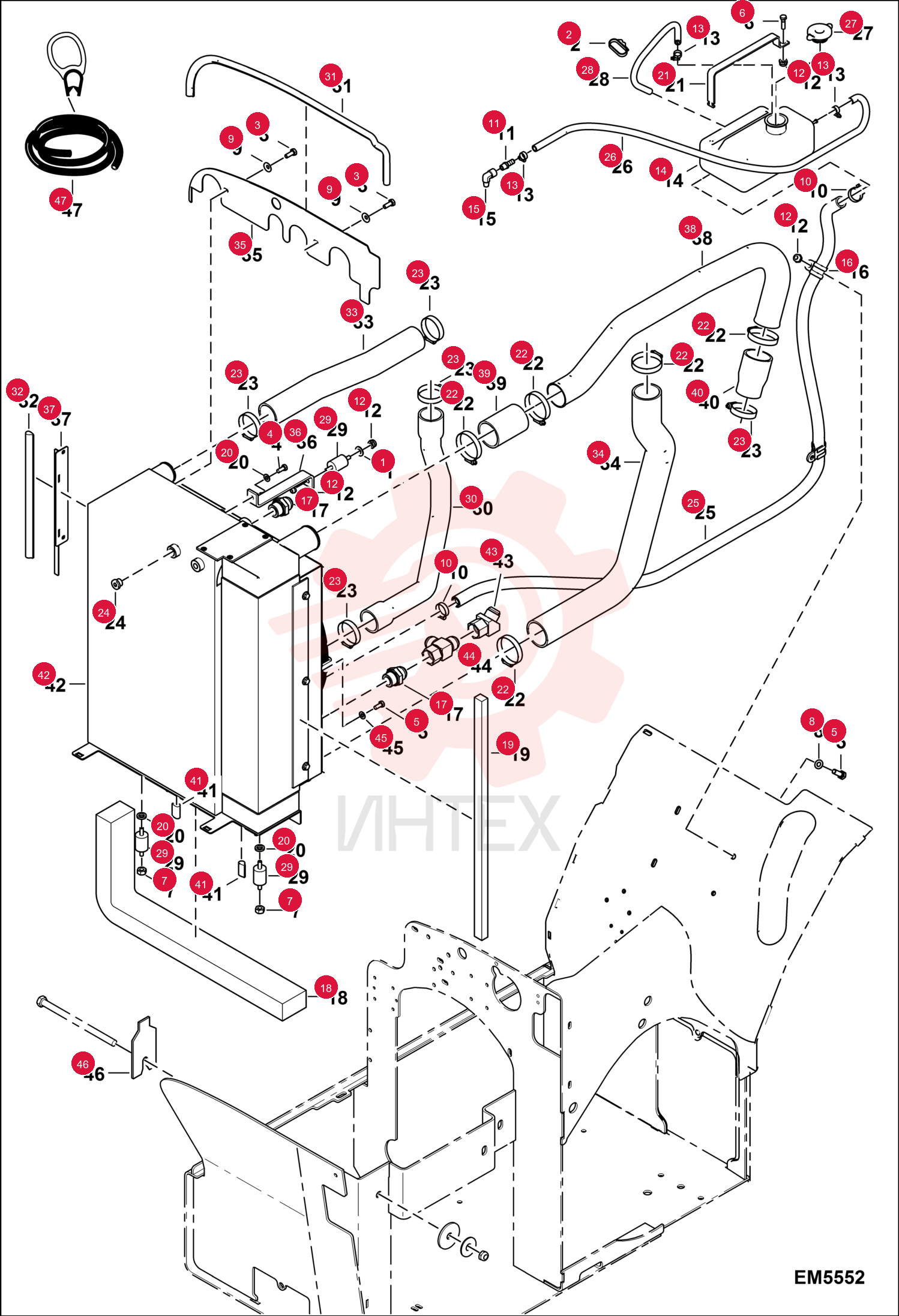

WASHER 000350-02V (7)

WASHER 000350-02V (7)

WASHER 000350-02V (7)

1 000350-02V

  • 000350-02V - WASHER

2 6624289

  • 6624289 - STRAP
  • TIE

3 01590.9

  • 01590.9 - SCREW

4 4CM820

  • 4CM820 - SCREW HEX HD 8.8

5 4CM825

  • 4CM825 - BOLT HEX HEAD

6 01598.2

  • 01598.2 - Screw

7 4DM8

  • 4DM8 - NUT HEX

8 01697.2

  • 01697.2 - Washer

9 01717.8

  • 01717.8 - Washer

10 11734.1

  • 11734.1 - Collar

11 014375-97F

  • 014375-97F - UNION

12 01681.6

  • 01681.6 - Nut

13 5HM14

  • 5HM14 - HOSE CLMP CONST TENS

14 78688.9

  • 78688.9 - Expansion tank

15 78745.7

  • 78745.7 - Adapter

16 84729.3

  • 84729.3 - Clamp

17 85170.9

  • 85170.9 - Union

18 88394.2

  • 88394.2 - Insulation

19 88395.9

  • 88395.9 - Insulation

20 89519.3

  • 89519.3 - Washer

21 90490.4

  • 90490.4 - Plate

22 100369-55H

  • 100369-55H - COLLAR

23 42HS30

  • 42HS30 - CLAMP
  • HOSE

24 100374-14H

  • 100374-14H - PLUG

25 6908901

  • 6908901 - HOSE D19 L2050

26 6908902

  • 6908902 - HOSE D10 L1080

27 6909875

  • 6909875 - PLUG
  • RADIATOR

28 6910264

  • 6910264 - HOSE D7L400

29 6910966

  • 6910966 - BUSHING
  • RUBBER
  • RADIATOR

30 6910970

  • 6910970 - HOSE

31 6919939

  • 6919939 - HOSE

32 6921108

  • 6921108 - HOSE

33 6921188

  • 6921188 - PLATE

34 6921191

  • 6921191 - PLATE

35 6921241

  • 6921241 - PLATE

36 6923939

  • 6923939 - PIPE

37 6924096

  • 6924096 - SLEEVE

38 6924097

  • 6924097 - REDUCER SLEEVE

39 6933947

  • 6933947 - RADIATOR

40 12K10

  • 12K10 - FITTING

41 13K10

  • 13K10 - TEE

42 6932420

  • 6932420 - SPACER

43 6934751

  • 6934751 - PLATE

44 7196170

  • 7196170 - GASKET
