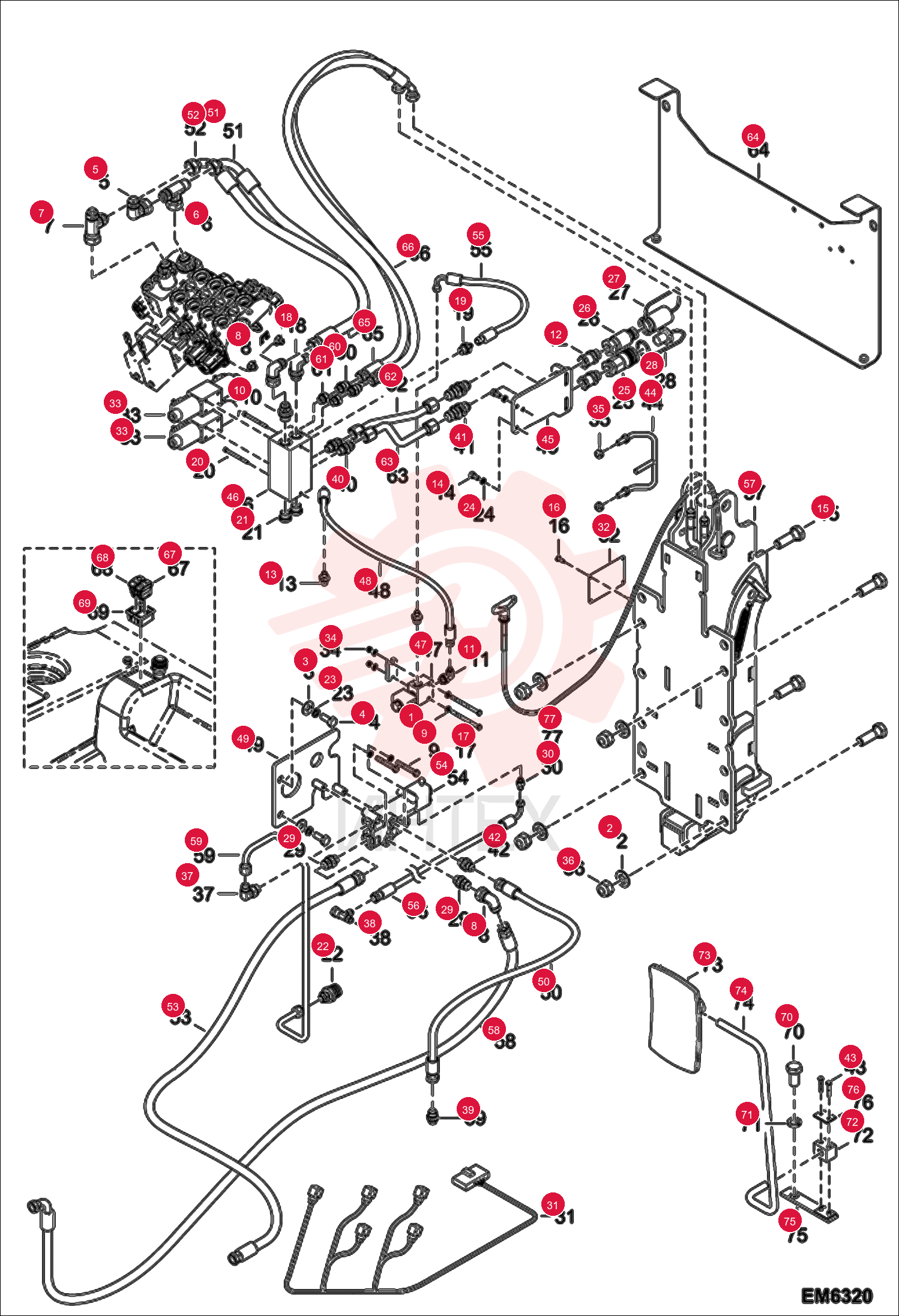

WASHER 000350-01U (8)

WASHER 000350-01U (8)

WASHER 000350-01U (8)

1 000350-01U

  • 000350-01U - WASHER

2 000350-08C

  • 000350-08C - WASHER

3 000350-21R

  • 000350-21R - WASHER

4 1CM1025

  • 1CM1025 - BOLT

5 008372-14Q

  • 008372-14Q - ELBOW

6 008372-21X

  • 008372-21X - TEE

7 008372-34M

  • 008372-34M - UNION

8 010370-90W

  • 010370-90W - ELBOW PIECE

9 10947.0

  • 10947.0 - Screw

10 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

11 015370-11P

  • 015370-11P - ELBOW PIECE

12 7225156

  • 7225156 - FITTING
  • HYD

13 022375-28V

  • 022375-28V - UNION

14 6GM816

  • 6GM816 - SCREW HEX SOCKT 10.9

15 1CM2060

  • 1CM2060 - SCREW

16 43824.2

  • 43824.2 - Rivet

17 1CM650

  • 1CM650 - SCREW HEX CAP

18 7244882

  • 7244882 - FITTING HYDRAULIC

19 65614.0

  • 65614.0 - Union

20 68566.9

  • 68566.9 - Screw

21 78743.2

  • 78743.2 - Drain plug

22 79170.7

  • 79170.7 - Coupling

23 7225260

  • 7225260 - WASHER

24 89519.3

  • 89519.3 - Washer

25 7225158

  • 7225158 - COUPLER

26 7225159

  • 7225159 - COUPLER

27 7225160

  • 7225160 - CAP

28 7225161

  • 7225161 - CAP

29 96568.1

  • 96568.1 - Union

30 96580.6

  • 96580.6 - Union

31 96589.7

  • 96589.7 - Wire harness

32 98360.1

  • 98360.1 - SOLENOID

33 100345-06W

  • 100345-06W - NUT

34 7252655

  • 7252655 - NUT LOCK

35 100345-20M

  • 100345-20M - NUT

36 7228465

  • 7228465 - FITTING

37 100372-06G

  • 100372-06G - UNION

38 7229423

  • 7229423 - FITTING

39 100375-39T

  • 100375-39T - UNION 7/8 JIC 3/8 BSP

40 100375-52H

  • 100375-52H - UNION

41 100375-56M

  • 100375-56M - UNION

42 1CM635

  • 1CM635 - BOLT

43 6910517

  • 6910517 - PROTECTOR

44 6910523

  • 6910523 - SUPPORT

45 6911079

  • 6911079 - HYDRAULIC BLOCK

46 6911845

  • 6911845 - SOLENOID 2-2

47 6912226

  • 6912226 - FLEXIBLE

48 6913021

  • 6913021 - Support

49 6913650

  • 6913650 - Hose

50 6913675

  • 6913675 - FLEXIBLE

51 6913675

  • 6913675 - FLEXIBLE

52 6913684

  • 6913684 - Hose

53 6915262

  • 6915262 - VALVE

54 6916079

  • 6916079 - HOSE

55 6916961

  • 6916961 - HOSE

56 6917366

  • 6917366 - HOOK

57 6917394

  • 6917394 - HOSE

58 6913684

  • 6913684 - Hose

59 6917437

  • 6917437 - Tube

60 6919773

  • 6919773 - UNION

61 6919774

  • 6919774 - NOZZLE

62 6922003

  • 6922003 - HYDRAULIC TUBE

63 6922004

  • 6922004 - HYDRAULIC TUBE

64 6922478

  • 6922478 - REAR HOOD

65 6925927

  • 6925927 - HOSE

66 6925927

  • 6925927 - HOSE

67 96598.8

  • 96598.8 - Switch (proportional)

68 6927721

  • 6927721 - SWITCH
  • HYD HOOK

69 96599.6

  • 96599.6 - Rear Option Switch

70 6927725

  • 6927725 - SWITCH
  • REAR HYD

71 7178511

  • 7178511 - SOCKET
  • END

72 01620.4

  • 01620.4 - Screw

73 15323.9

  • 15323.9 - Washer

74 7179623

  • 7179623 - SLEEVE

75 63860.1

  • 63860.1 - Mirror

76 79300.0

  • 79300.0 - Pipe

77 84648.5

  • 84648.5 - Plate

78 100228-57K

  • 100228-57K - COVER

79 7009791

  • 7009791 - CABLE PULL
