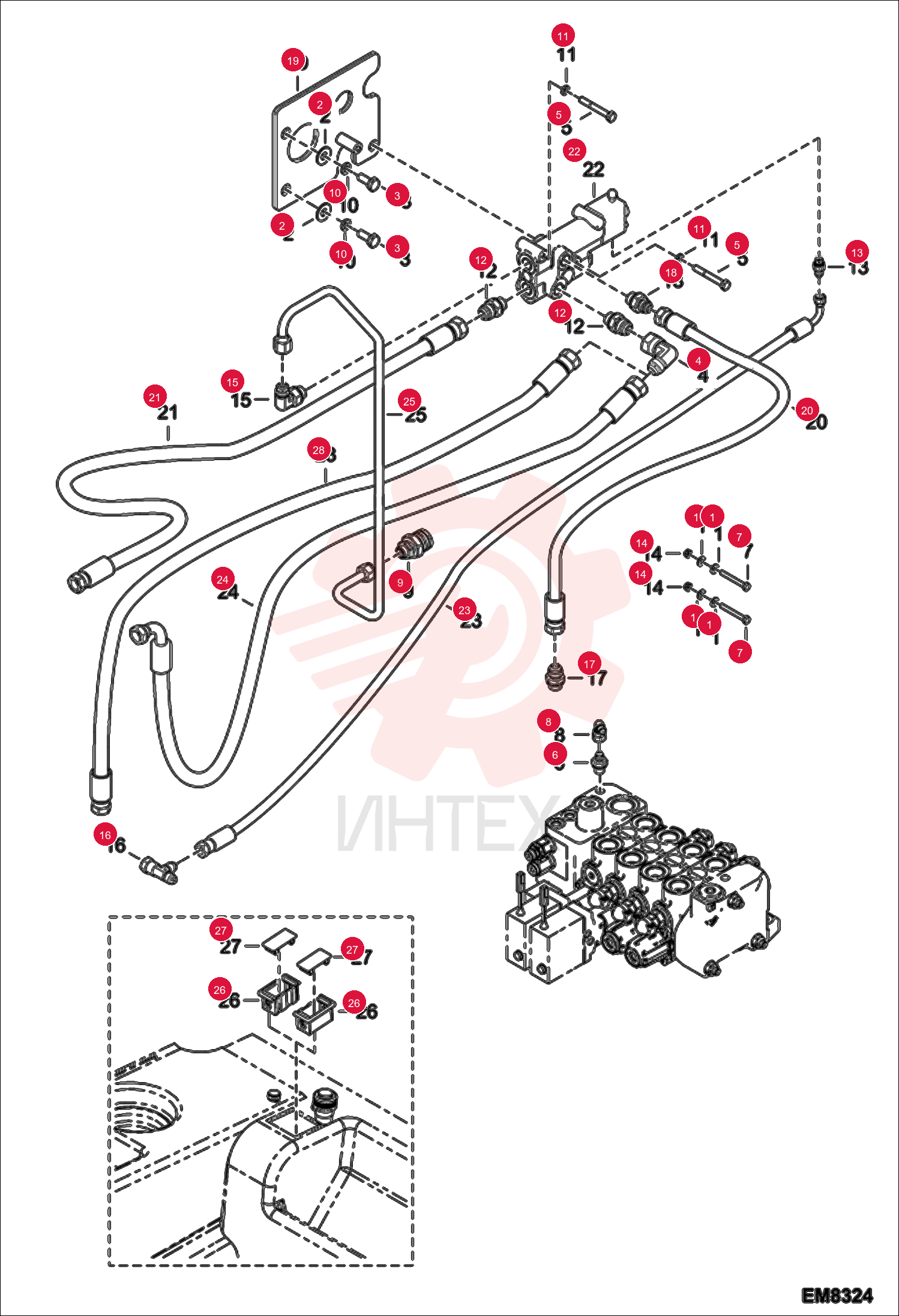

WASHER 000350-01U (17)

WASHER 000350-01U (17)

WASHER 000350-01U (17)

1 000350-01U

  • 000350-01U - WASHER

2 000350-21R

  • 000350-21R - WASHER

3 1CM1025

  • 1CM1025 - BOLT

4 010370-90W

  • 010370-90W - ELBOW PIECE

5 10947.0

  • 10947.0 - Screw

6 022375-28V

  • 022375-28V - UNION

7 1CM650

  • 1CM650 - SCREW HEX CAP

8 72294.2

  • 72294.2 - Elbow union

9 79170.7

  • 79170.7 - Coupling

10 7225260

  • 7225260 - WASHER

11 89519.3

  • 89519.3 - Washer

12 96568.1

  • 96568.1 - Union

13 96580.6

  • 96580.6 - Union

14 100345-06W

  • 100345-06W - NUT

15 7228465

  • 7228465 - FITTING

16 100372-06G

  • 100372-06G - UNION

17 7229423

  • 7229423 - FITTING

18 100375-56M

  • 100375-56M - UNION

19 6913021

  • 6913021 - Support

20 6913650

  • 6913650 - Hose

21 6913684

  • 6913684 - Hose

22 6915262

  • 6915262 - VALVE

23 6916961

  • 6916961 - HOSE

24 6917394

  • 6917394 - HOSE

25 6917437

  • 6917437 - Tube

26 7178511

  • 7178511 - SOCKET
  • END

27 7178513

  • 7178513 - CAP
  • SOCKET

28 6913684

  • 6913684 - Hose
