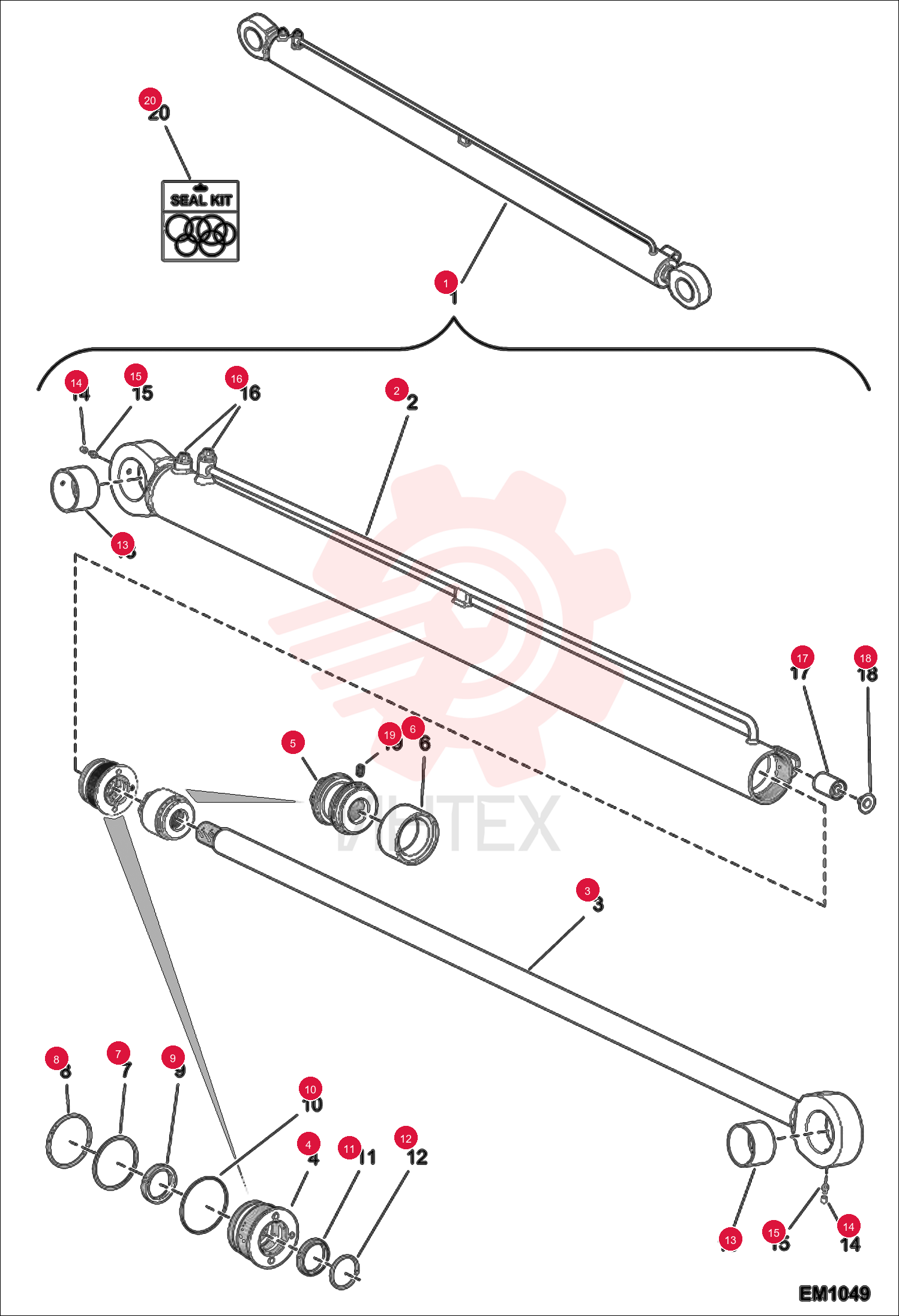

CYLINDER ASSEMBLY 6925015 (1)

CYLINDER ASSEMBLY 6925015 (1)

CYLINDER ASSEMBLY 6925015 (1)

1 6925015

  • 6925015 - CYLINDER ASSEMBLY

2 7011002

  • 7011002 - BODY
  • CYLINDER

3 7011004

  • 7011004 - HEAD
  • CYLINDER

4 7011005

  • 7011005 - PISTON

5 7011006

  • 7011006 - SEAL
  • PISTON

6 7011007

  • 7011007 - SEAL

7 7011008

  • 7011008 - O-RING

8 7011009

  • 7011009 - SEAL

9 7011010

  • 7011010 - O-RING

10 7011011

  • 7011011 - SEAL

11 7011012

  • 7011012 - O-RING

12 7011013

  • 7011013 - BUSHING

13 7011014

  • 7011014 - PLUG
  • GREASE NIPPLE

14 6912964

  • 6912964 - LUBRICATOR

15 7011015

  • 7011015 - PLUG

16 7011016

  • 7011016 - BLOCK
  • SILENT

17 7011017

  • 7011017 - SPACER

18 7011018

  • 7011018 - SCREW

19 7011019

  • 7011019 - KIT
  • SEAL
