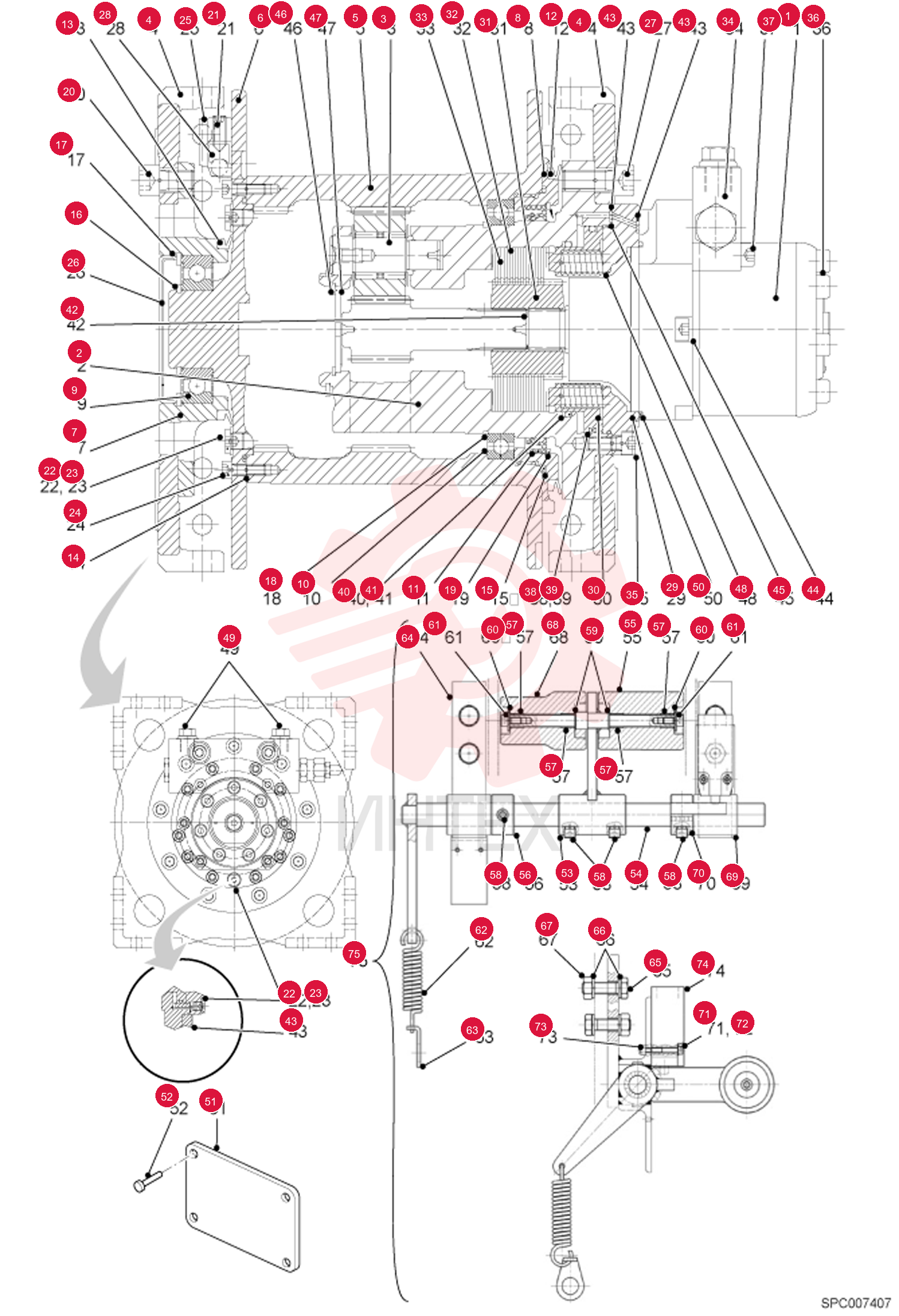

ORBITAL MOTOR 7008707 (2)

ORBITAL MOTOR 7008707 (2)

ORBITAL MOTOR 7008707 (2)

1 7008707

  • 7008707 - ORBITAL MOTOR

2 7008758

  • 7008758 - SPINDLE

3 7008753

  • 7008753 - REDUCTION STAGE

4 7008748

  • 7008748 - STRUCTURE MOTOR SIDE

5 7008754

  • 7008754 - DRUM

6 7008755

  • 7008755 - SIDE DRUM FLANGE

7 7008756

  • 7008756 - FLANGE

8 7008750

  • 7008750 - LOCK NUT

9 7008725

  • 7008725 - BEARING

10 7008726

  • 7008726 - BEARING

11 7008714

  • 7008714 - SEALING RING

12 7008712

  • 7008712 - SEAL

13 7008713

  • 7008713 - SEAL

14 7008718

  • 7008718 - O-RING

15 7008719

  • 7008719 - O-RING

16 7008727

  • 7008727 - CIRCLIP

17 7008730

  • 7008730 - BLOCKING RING

18 7008731

  • 7008731 - BLOCKING RING

19 7008732

  • 7008732 - BLOCKING RING

20 7008742

  • 7008742 - SCREW

21 7008746

  • 7008746 - SCREW

22 7008733

  • 7008733 - PLUG

23 7008724

  • 7008724 - WASHER

24 7008735

  • 7008735 - SCREW

25 7008757

  • 7008757 - END COVER

26 7008734

  • 7008734 - END COVER PLUG

27 7008744

  • 7008744 - SCREW

28 7008749

  • 7008749 - ROPE CLAMP

29 7008759

  • 7008759 - FLANGE

30 7008761

  • 7008761 - BRAKE PISTON

31 7008760

  • 7008760 - COUPLING

32 7008710

  • 7008710 - DEAD STEEL

33 7008711

  • 7008711 - DEAD FRICTION

34 7008752

  • 7008752 - VALVE

35 7008736

  • 7008736 - SCREW

36 7008745

  • 7008745 - SCREW

37 7008740

  • 7008740 - SCREW

38 7008722

  • 7008722 - O-RING

39 7008723

  • 7008723 - BLOCKING RING

40 7008720

  • 7008720 - O-RING

41 7008721

  • 7008721 - BLOCKING RING

42 7008728

  • 7008728 - BLOCKING RING

43 7008715

  • 7008715 - O-RING

44 7008738

  • 7008738 - SCREW

45 7008716

  • 7008716 - O-RING

46 7008729

  • 7008729 - BLOCKING RING

47 7008762

  • 7008762 - THRUST WASHER

48 7008763

  • 7008763 - SPRING

49 7008765

  • 7008765 - PLUG

50 7008717

  • 7008717 - O-RING

51 7008751

  • 7008751 - NAME PLATE

52 7008747

  • 7008747 - RIVET

53 7028534

  • 7028534 - ROLLER
  • PRESSURE
