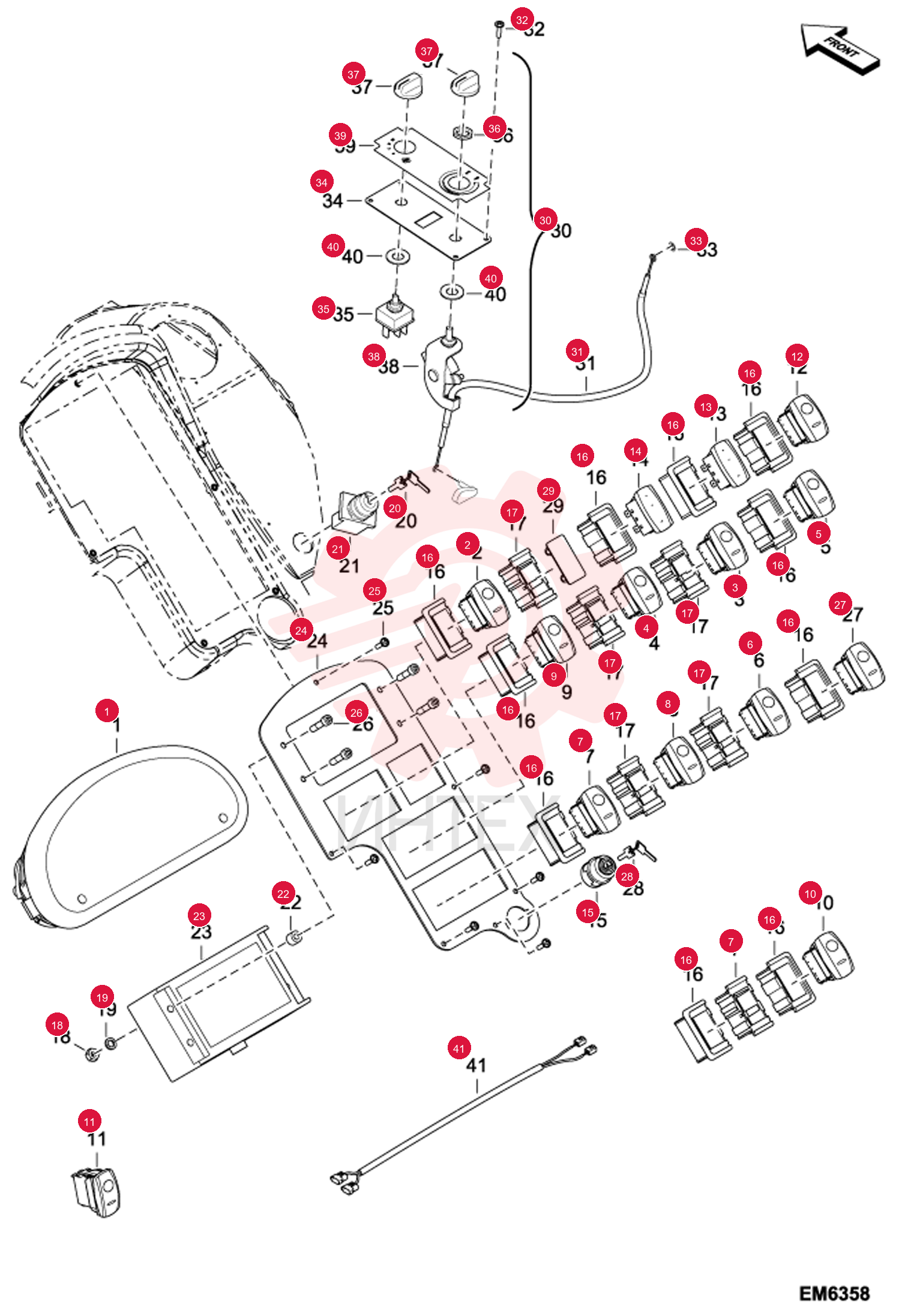

INSTRUMENT PANEL 6927486

INSTRUMENT PANEL 6927486

INSTRUMENT PANEL 6927486

1 6927486

  • 6927486 - INSTRUMENT PANEL

2 6927711

  • 6927711 - SWITCH
  • WORK MODE

3 6927715

  • 6927715 - SWITCH
  • FOG LIGHT

4 6927716

  • 6927716 - SWITCH
  • WORK LIGHT

5 7172095

  • 7172095 - SWITCH ROCKER

6 6927720

  • 6927720 - SWITCH
  • REAR WIPER

7 6927722

  • 6927722 - SWITCH
  • ACTIVATION TOOL

8 6927723

  • 6927723 - SWITCH
  • PERMANENT FLOW

9 6927726

  • 6927726 - SWITCH
  • ROAD LIGHT

10 6927727

  • 6927727 - SWITCH
  • JOYSTICK

11 7172096

  • 7172096 - SWITCH ROCKER

12 6927730

  • 6927730 - SWITCH
  • DIRECTION

13 6927743

  • 6927743 - INDICATOR
  • DIRECTION

14 6927746

  • 6927746 - INDICATOR
  • WINCH

15 6928151

  • 6928151 - SWITCH
  • IGNITION (WITHOUT CAP)

16 7178511

  • 7178511 - SOCKET
  • END

17 7178512

  • 7178512 - SOCKET
  • INTERMEDIATE

18 4DM5

  • 4DM5 - NUT HEXAGON M5

19 13415.5

  • 13415.5 - Washer

20 97054.1

  • 97054.1 - Set of keys

21 97886.6

  • 97886.6 - Knob head

22 6910953

  • 6910953 - SPACER
  • JOYSTICK

23 6917432

  • 6917432 - STABILITY INDICATOR

24 6927563

  • 6927563 - PLATE
  • INSTRUMENT PANEL

25 7198946

  • 7198946 - SCREW

26 6928156

  • 6928156 - SCREW

27 6927718

  • 6927718 - SWITCH
  • ROOF WIPER

28 6926414

  • 6926414 - SET OF KEYS

29 7178513

  • 7178513 - CAP
  • SOCKET

30 7217350

  • 7217350 - PANEL
  • CONTROL

31 7217231

  • 7217231 - CABLE

32 7198946

  • 7198946 - SCREW

33 7229422

  • 7229422 - WASHER

34 7015437

  • 7015437 - CONTROL PLATE

35 6675176

  • 6675176 - SWITCH

36 7015436

  • 7015436 - JAM NUT

37 6675177

  • 6675177 - KNOB

38 6676622

  • 6676622 - CONTROL

39 7015435

  • 7015435 - OVERPLAY

40 7010693

  • 7010693 - WASHER

41 6928155

  • 6928155 - DISPLAY HARNESS
