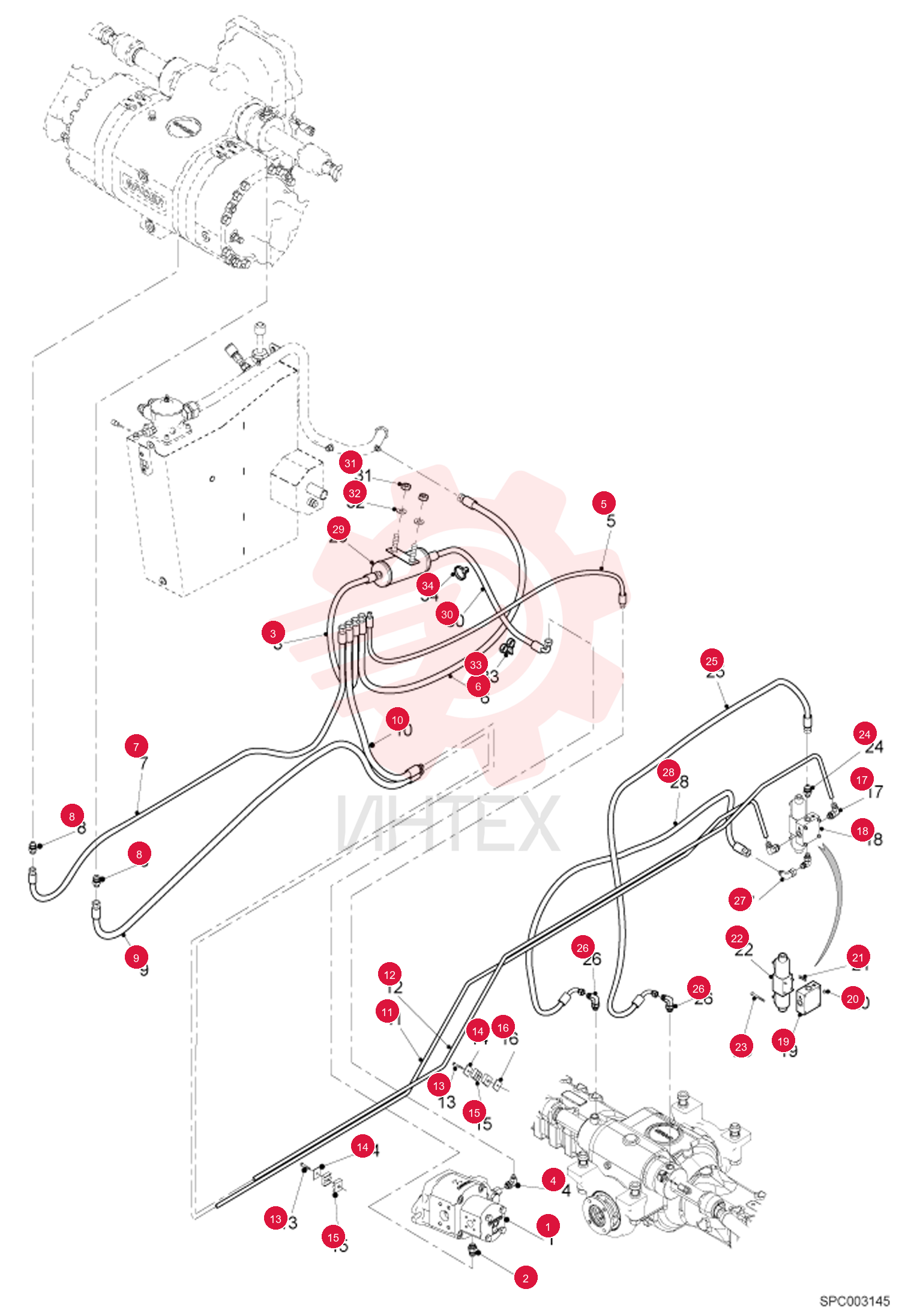

PUMP, HYD ASSY 6909447 (14)

PUMP, HYD ASSY 6909447 (14)

PUMP, HYD ASSY 6909447 (14)

1 6909447

  • 6909447 - PUMP
  • HYD ASSY

2 7229423

  • 7229423 - FITTING

3 6936156

  • 6936156 - HOSE
  • HYD

4 79147.5

  • 79147.5 - Hose

5 008372-01B

  • 008372-01B - ELBOW PIECE

6 79148.3

  • 79148.3 - Hose

7 79147.5

  • 79147.5 - Hose

8 96763.8

  • 96763.8 - Hose

9 100375-56M

  • 100375-56M - UNION

10 6916603

  • 6916603 - Hose

11 88723.2

  • 88723.2 - Hose

12 90237.9

  • 90237.9 - Hydraulic pipe

13 90238.7

  • 90238.7 - Hydraulic pipe

14 1CM635

  • 1CM635 - BOLT

15 100212-53R

  • 100212-53R - COVER PLATE

16 6935678

  • 6935678 - CLAMP
  • DOUBLE

17 100281-55T

  • 100281-55T - Plate

18 7229301

  • 7229301 - FITTING HYDRAULIC ELBOW

19 98347.8

  • 98347.8 - Steering block

20 98348.6

  • 98348.6 - Support

21 100345-06W

  • 100345-06W - NUT

22 01626.1

  • 01626.1 - Screw

23 98349.4

  • 98349.4 - Steering selector valve

24 01626.1

  • 01626.1 - Screw

25 7229423

  • 7229423 - FITTING

26 72281.9

  • 72281.9 - Hose

27 7228465

  • 7228465 - FITTING

28 008372-01B

  • 008372-01B - ELBOW PIECE

29 72281.9

  • 72281.9 - Hose

30 6933831

  • 6933831 - MUFFLER ASSY

31 6936155

  • 6936155 - HOSE
  • HYD

32 74467.2

  • 74467.2 - Hose

33 01681.6

  • 01681.6 - Nut

34 01697.2

  • 01697.2 - Washer

35 6678668

  • 6678668 - STRAP

36 6678669

  • 6678669 - STRAP T250 H/D
