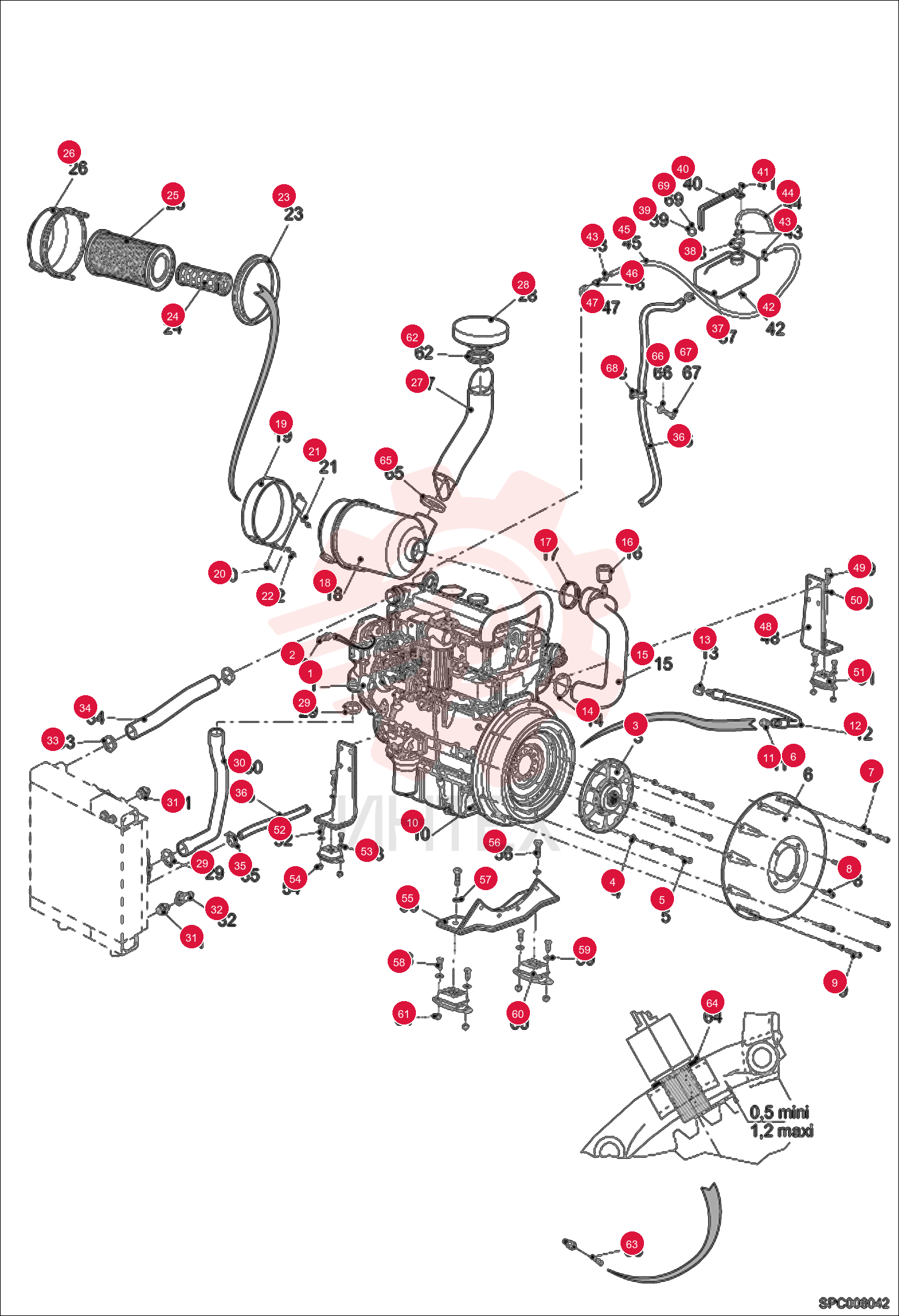

Union 38441.2 (1)

Union 38441.2 (1)

Union 38441.2 (1)

1 38441.2

  • 38441.2 - Union

2 7225260

  • 7225260 - WASHER

3 1CM1040

  • 1CM1040 - BOLT

4 97878.3

  • 97878.3 - Housing

5 2GM1030

  • 2GM1030 - SCREW SOCKET HD CAP

6 54009.6

  • 54009.6 - Screw

7 14039.2

  • 14039.2 - Screw

8 7252655

  • 7252655 - NUT LOCK

9 96461.9

  • 96461.9 - Adapter

10 96462.7

  • 96462.7 - Drain Hose

11 7299361

  • 7299361 - CAP
  • HYD

12 29713.5

  • 29713.5 - Clamp

13 6916705

  • 6916705 - HOSE

14 7171124

  • 7171124 - SENSOR

15 35949.7

  • 35949.7 - Clamp

16 97746.2

  • 97746.2 - Air Filter

17 7166418

  • 7166418 - HOLDER AIR FILTER

18 007330-29V

  • 007330-29V - SCREW HM8-30/30 CL 8.8 ZJ 8

19 01697.2

  • 01697.2 - Washer

20 01681.6

  • 01681.6 - Nut

21 6910727

  • 6910727 - RING

22 6910726

  • 6910726 - FILTER
  • AIR INNER

23 6910725

  • 6910725 - FILTER
  • AIR OUTER

24 6910724

  • 6910724 - HOUSING

25 6916706

  • 6916706 - HOSE

26 7165319

  • 7165319 - INLET AIR RAIN CAP

27 42HS30

  • 42HS30 - CLAMP
  • HOSE

28 6910970

  • 6910970 - HOSE

29 68609.7

  • 68609.7 - Union

30 008372-34M

  • 008372-34M - UNION

31 42HS30

  • 42HS30 - CLAMP
  • HOSE

32 6910969

  • 6910969 - HOSE

33 11734.1

  • 11734.1 - Collar

34 6908901

  • 6908901 - HOSE D19 L2050

35 78688.9

  • 78688.9 - Expansion tank

36 6909875

  • 6909875 - PLUG
  • RADIATOR

37 6624289

  • 6624289 - STRAP
  • TIE

38 90490.4

  • 90490.4 - Plate

39 01598.2

  • 01598.2 - Screw

40 01681.6

  • 01681.6 - Nut

41 5HM14

  • 5HM14 - HOSE CLMP CONST TENS

42 6910264

  • 6910264 - HOSE D7L400

43 6908902

  • 6908902 - HOSE D10 L1080

44 014375-97F

  • 014375-97F - UNION

45 78745.7

  • 78745.7 - Adapter

46 6908663

  • 6908663 - PLATE

47 01528.9

  • 01528.9 - Screw

48 89517.7

  • 89517.7 - Washer

49 6914065

  • 6914065 - SHOCK ABSORBER

50 1CM1025

  • 1CM1025 - BOLT

51 000350-03W

  • 000350-03W - WASHER

52 7252655

  • 7252655 - NUT LOCK

53 6908071

  • 6908071 - SUPPORT

54 1CM1650

  • 1CM1650 - SCREW

55 7235680

  • 7235680 - WASHER FLAT

56 13399.1

  • 13399.1 - Screw

57 000350-04X

  • 000350-04X - WASHER
  • M12

58 6914064

  • 6914064 - SHOCK ABSORBER

59 000345-96E

  • 000345-96E - NUT

60 38683.9

  • 38683.9 - Collar

61 6913087

  • 6913087 - SENSOR
  • ENGINE SPEED TIER II

62 98132.4

  • 98132.4 - Washer

63 38683.9

  • 38683.9 - Collar

64 01697.2

  • 01697.2 - Washer

65 4CM825

  • 4CM825 - BOLT HEX HEAD

66 84729.3

  • 84729.3 - Clamp

67 6910771

  • 6910771 - WASHER
