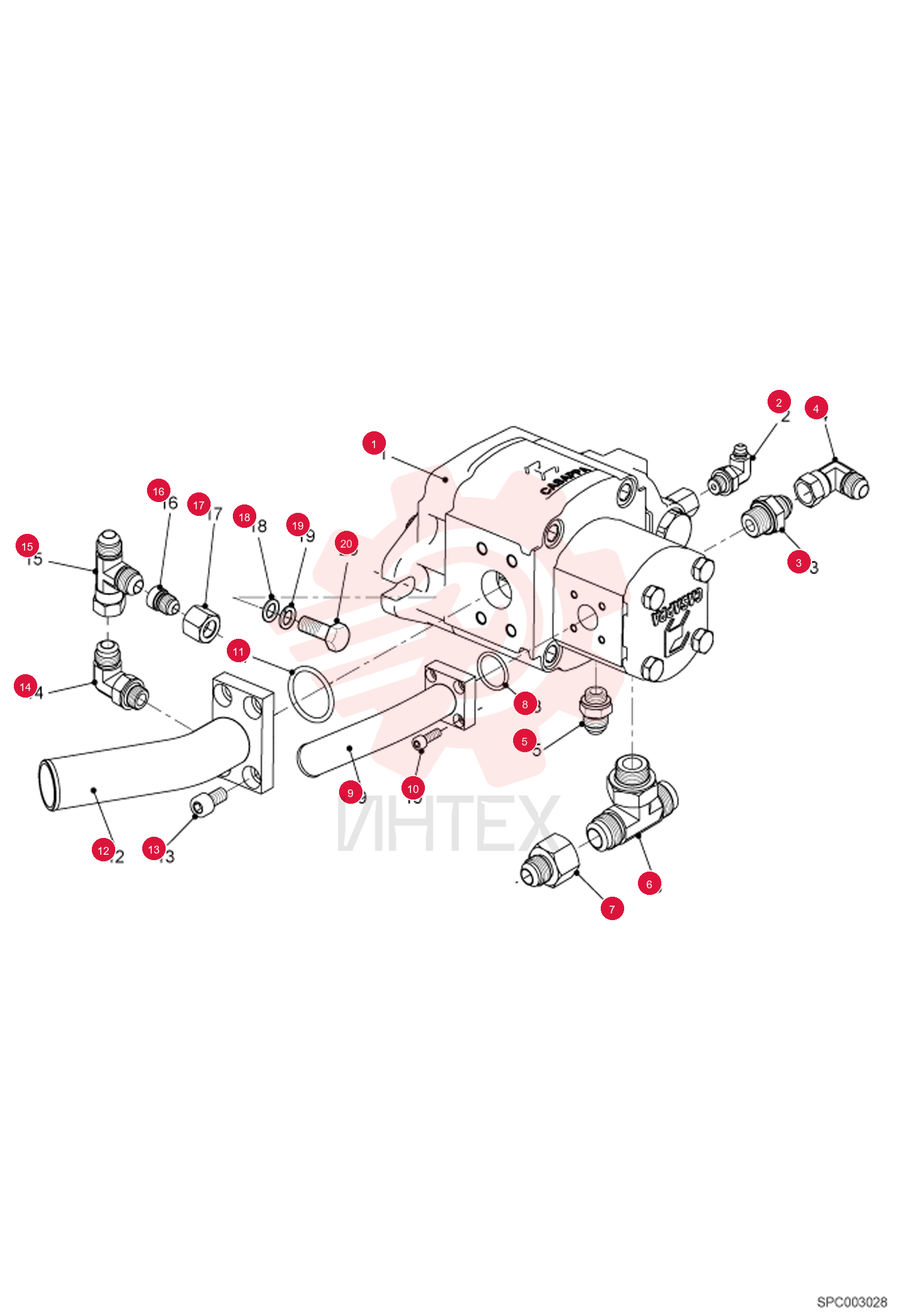

PUMP, HYD ASSY 6909447 (7)

PUMP, HYD ASSY 6909447 (7)

PUMP, HYD ASSY 6909447 (7)

1 6909447

  • 6909447 - PUMP
  • HYD ASSY

2 015370-11P

  • 015370-11P - ELBOW PIECE

3 7239254

  • 7239254 - FITTING

4 008372-01B

  • 008372-01B - ELBOW PIECE

5 7229423

  • 7229423 - FITTING

6 80732.1

  • 80732.1 - T- union

7 014375-99H

  • 014375-99H - REDUCER

8 93049.5

  • 93049.5 - O-ring

9 6908091

  • 6908091 - FLANGE D20 T25

10 10167.5

  • 10167.5 - Screw

11 92637.8

  • 92637.8 - O-ring

12 6911767

  • 6911767 - FLANGE SAE 1"

13 10662.5

  • 10662.5 - Screw

14 7229301

  • 7229301 - FITTING HYDRAULIC ELBOW

15 008372-02C

  • 008372-02C - UNION

16 100375-06H

  • 100375-06H - ADAPTER

17 014345-12C

  • 014345-12C - NUT
  • ADAPTER

18 000350-04X

  • 000350-04X - WASHER
  • M12

19 89517.7

  • 89517.7 - Washer

20 26160.2

  • 26160.2 - Screw
