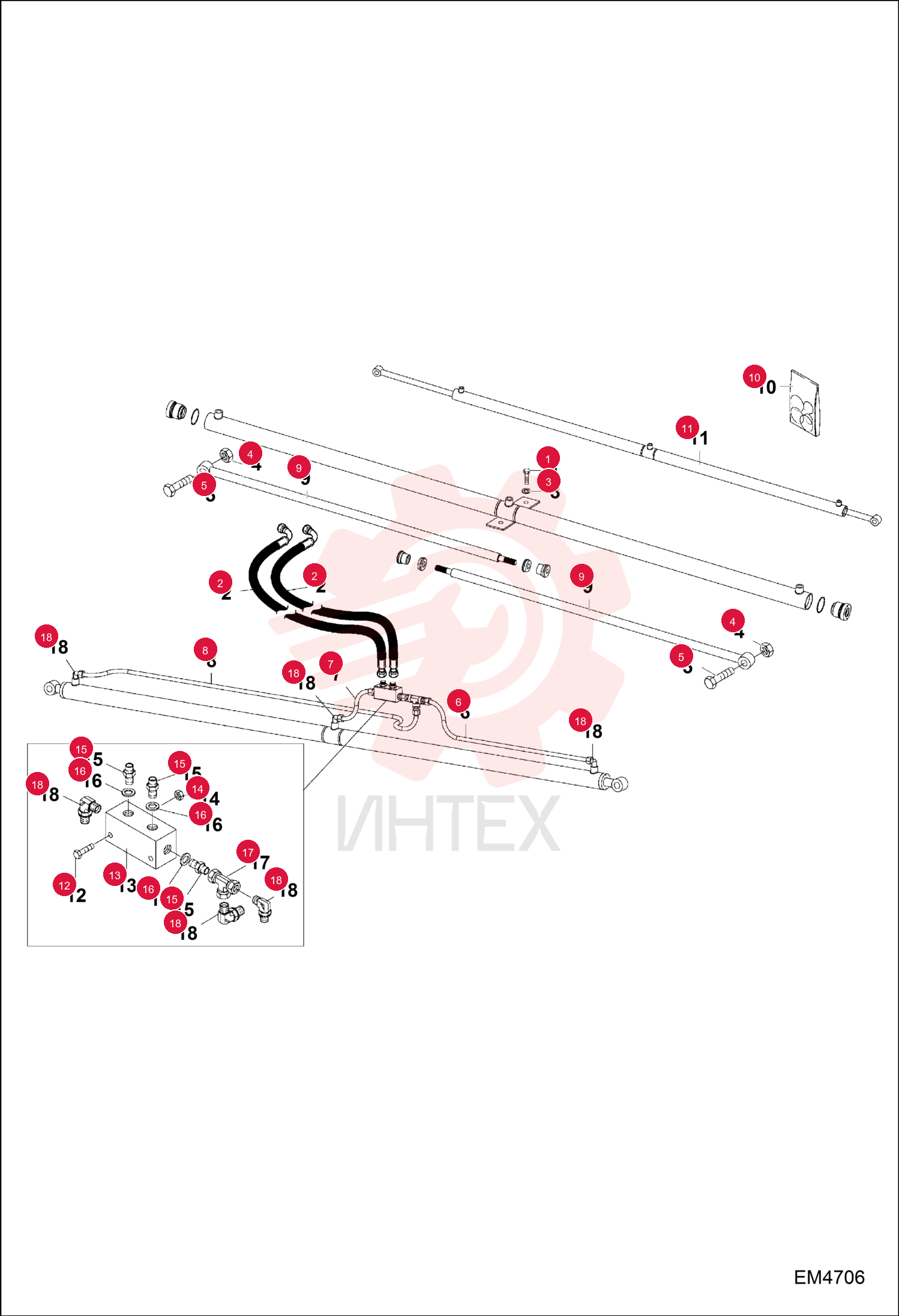

BOLT 7018080 (1)

BOLT 7018080 (1)

BOLT 7018080 (1)

1 7018080

  • 7018080 - BOLT

2 7018135

  • 7018135 - HOSE
  • HYD

3 7018081

  • 7018081 - WASHER

4 7018078

  • 7018078 - NUT

5 7018074

  • 7018074 - BOLT

6 7018150

  • 7018150 - TUBELINE

7 7018149

  • 7018149 - TUBELINE

8 7018148

  • 7018148 - TUBELINE

9 7018075

  • 7018075 - ROD
  • CYLINDER

10 7018082

  • 7018082 - KIT
  • SEAL

11 7018071

  • 7018071 - CYLINDER ASSEMBLY

12 7018157

  • 7018157 - BOLT

13 7028217

  • 7028217 - BLOCK HYDRAULIC

14 7018059

  • 7018059 - NUT

15 7014658

  • 7014658 - NIPPLE

16 7018145

  • 7018145 - WASHER
  • SEAL

17 7018146

  • 7018146 - FITTING
  • TEE

18 7018143

  • 7018143 - FITTING
  • ELBOW
