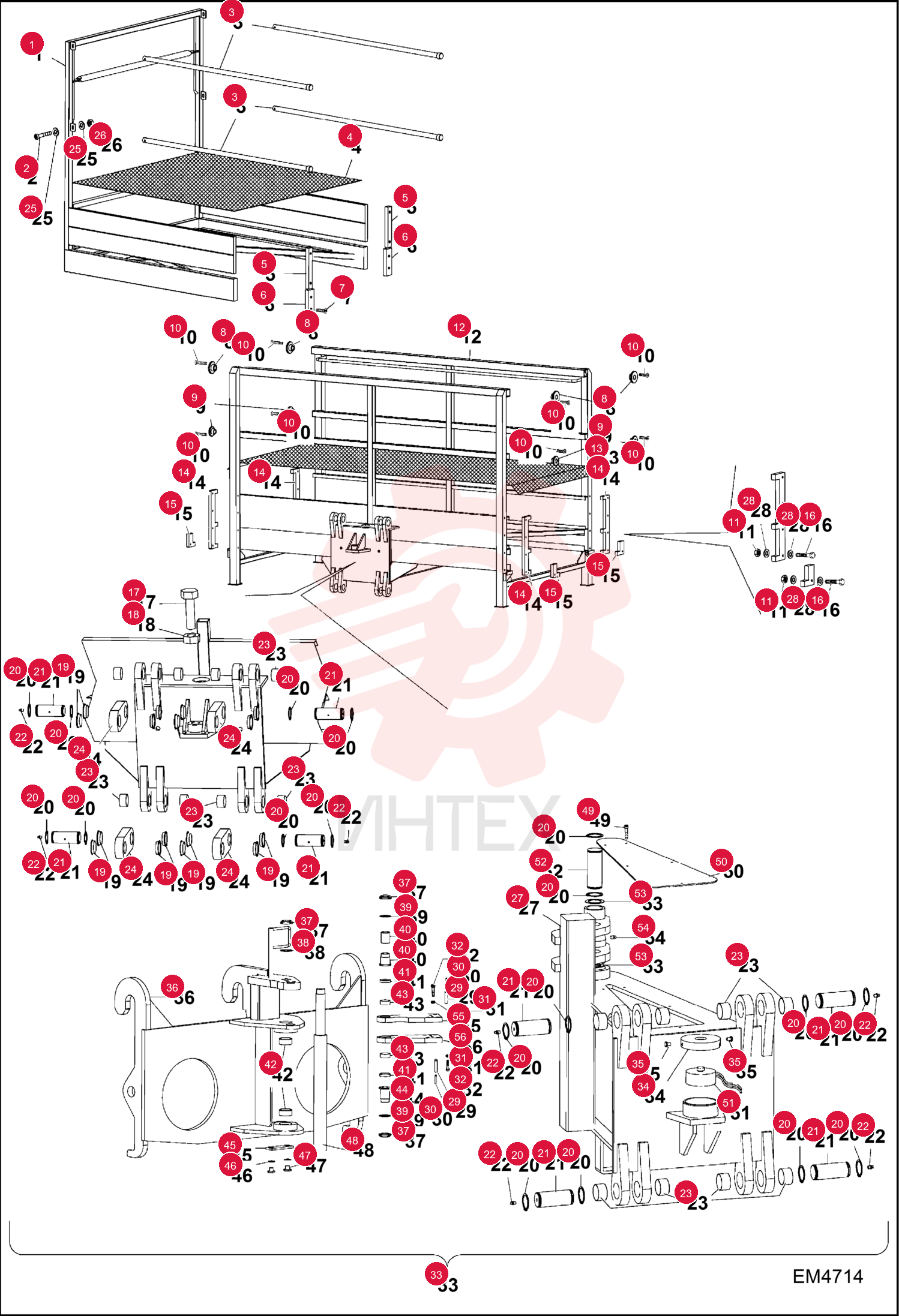

FRAME 7018044 (4)

FRAME 7018044 (4)

FRAME 7018044 (4)

1 7018044

  • 7018044 - FRAME

2 7018045

  • 7018045 - SCREW

3 7018046

  • 7018046 - PIPE

4 7018047

  • 7018047 - PLATE

5 7018048

  • 7018048 - PAD
  • WEAR

6 7018049

  • 7018049 - PAD
  • WEAR

7 7018050

  • 7018050 - SCREW

8 7018051

  • 7018051 - BUSHING

9 7018052

  • 7018052 - BUSHING

10 7018053

  • 7018053 - SCREW

11 7014561

  • 7014561 - NUT
  • SELF LOCKING

12 7018054

  • 7018054 - FRAME

13 7018062

  • 7018062 - PLATE

14 7018055

  • 7018055 - PAD
  • WEAR

15 7018056

  • 7018056 - SHIM

16 7018057

  • 7018057 - SCREW

17 7018063

  • 7018063 - SCREW

18 7018064

  • 7018064 - NUT

19 7018065

  • 7018065 - BUSHING

20 7018066

  • 7018066 - RING
  • SNAP

21 7018067

  • 7018067 - PIN

22 7018068

  • 7018068 - NIPPLE
  • GREASE

23 7018069

  • 7018069 - BUSHING

24 7018070

  • 7018070 - LINK

25 7018133

  • 7018133 - WASHER FLAT

26 7018059

  • 7018059 - NUT

27 7018103

  • 7018103 - FRAME
  • SWING

28 7018061

  • 7018061 - WASHER

29 7018118

  • 7018118 - PIN
  • SPRING

30 7018117

  • 7018117 - PIN
  • SPRING

31 7018114

  • 7018114 - WASHER

32 7018110

  • 7018110 - BOLT

33 7018084

  • 7018084 - COVER

34 7019721

  • 7019721 - PIN
  • DOWEL

35 7018083

  • 7018083 - FRAME
  • MOUNTING

36 7014567

  • 7014567 - NUT
  • CAGED

37 7018087

  • 7018087 - BUSHING

38 7018088

  • 7018088 - WASHER

39 7027879

  • 7027879 - PIN

40 7018090

  • 7018090 - BUSHING

41 7027882

  • 7027882 - BUSH

42 7027883

  • 7027883 - BUSH

43 7018093

  • 7018093 - PIN

44 7018094

  • 7018094 - PLATE

45 7018095

  • 7018095 - WASHER

46 7018096

  • 7018096 - BOLT

47 7027878

  • 7027878 - PIN

48 7018098

  • 7018098 - SCREW

49 7018099

  • 7018099 - COVER

50 7018085

  • 7018085 - SENSOR
  • LOAD

51 7018100

  • 7018100 - PIN

52 7018101

  • 7018101 - BUSHING

53 7018102

  • 7018102 - NIPPLE
  • GREASE

54 7018091

  • 7018091 - PLATE
  • UPPER

55 7018092

  • 7018092 - PLATE
  • LOWER
