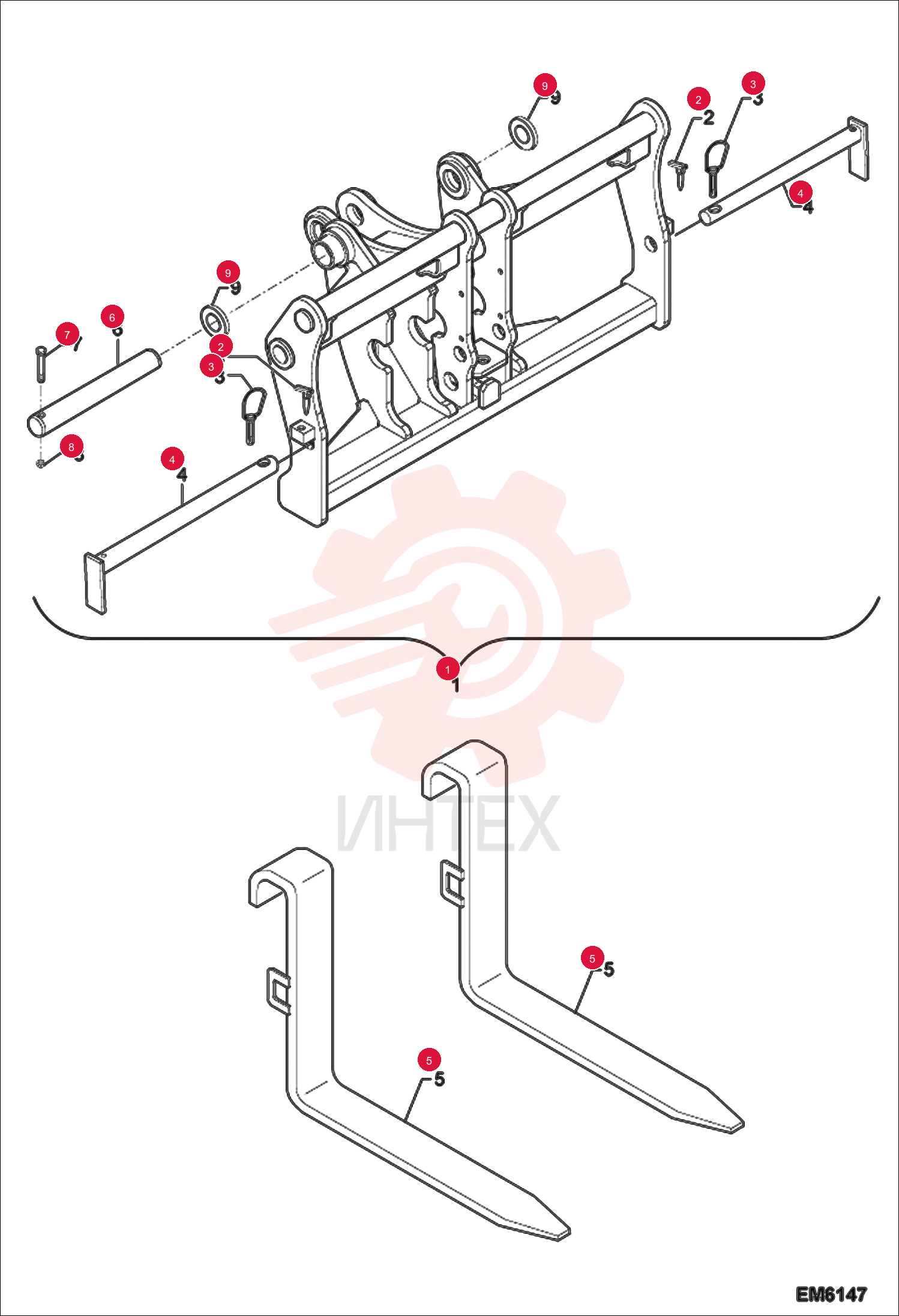

PLATE 7014616

PLATE 7014616

PLATE 7014616

1 7014616

  • 7014616 - PLATE

2 7014929

  • 7014929 - PIN
  • STOP

3 7014990

  • 7014990 - PIN

4 7014928

  • 7014928 - PIN

5 7014926

  • 7014926 - FORK

6 7014905

  • 7014905 - PIN

7 7014538

  • 7014538 - SCREW

8 7014559

  • 7014559 - NUT

9 7020217

  • 7020217 - WASHER
