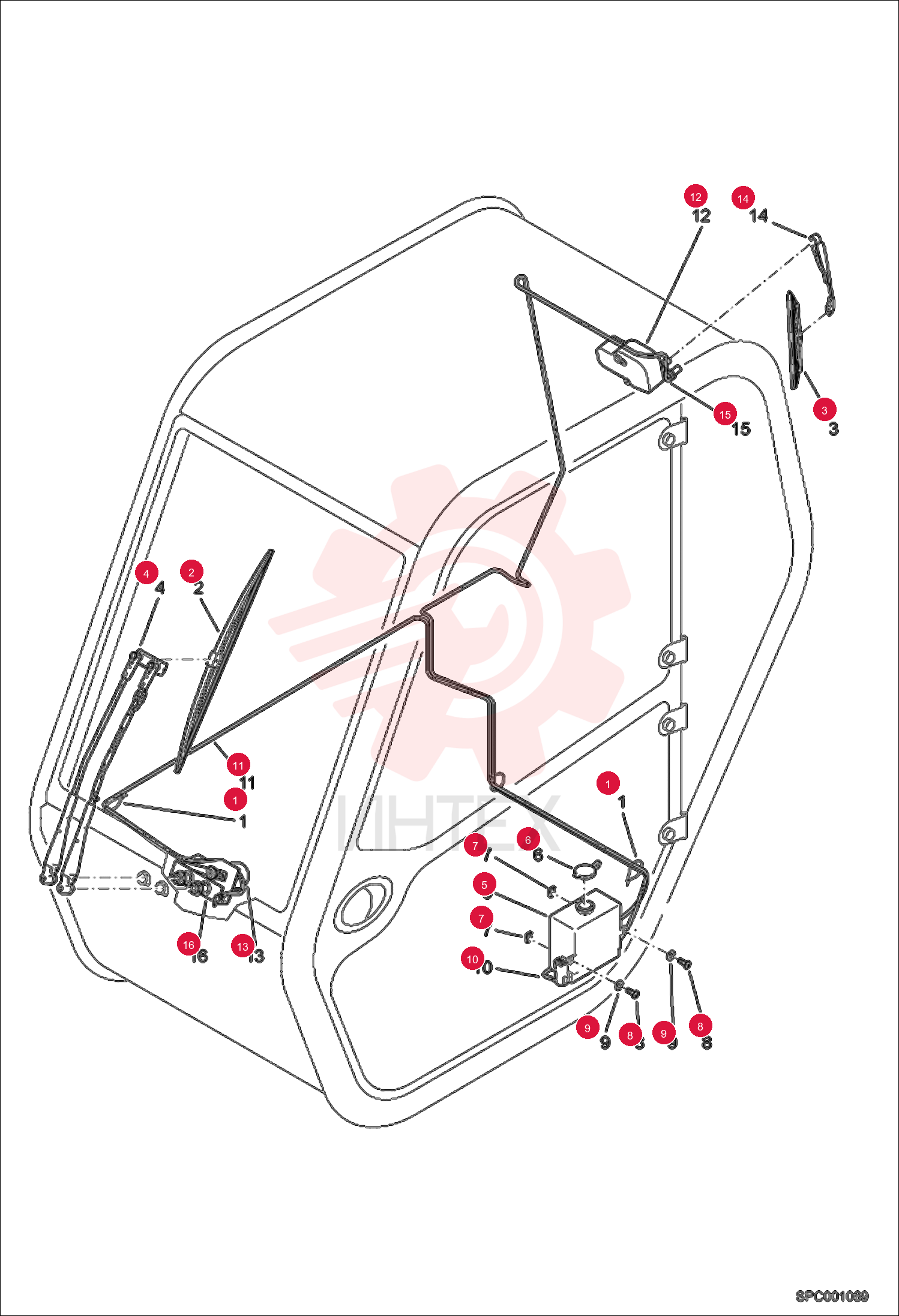

STRAP TIE 7214998 (1)

STRAP TIE 7214998 (1)

STRAP TIE 7214998 (1)

1 7214998

  • 7214998 - STRAP TIE

2 75895-3

  • 75895-3 - BRUSH

3 7359250

  • 7359250 - BLADE WIPER

4 75898-7

  • 75898-7 - ARM

5 97196-0

  • 97196-0 - CAN

6 6925355

  • 6925355 - CAP

7 6909903

  • 6909903 - CLIPS

8 6910505

  • 6910505 - SCREW

9 6910936

  • 6910936 - WASHER JZC4

10 6910981

  • 6910981 - HOSE
  • WINDSHIELD SPRAYER

11 6910981

  • 6910981 - HOSE
  • WINDSHIELD SPRAYER

12 6917652

  • 6917652 - MOTOR
  • REAR WIPER

13 6917653

  • 6917653 - MOTOR
  • WIPER

14 6918772

  • 6918772 - REAR WIPER ARM

15 6918785

  • 6918785 - JET

16 75926-6

  • 75926-6 - GUIDE
