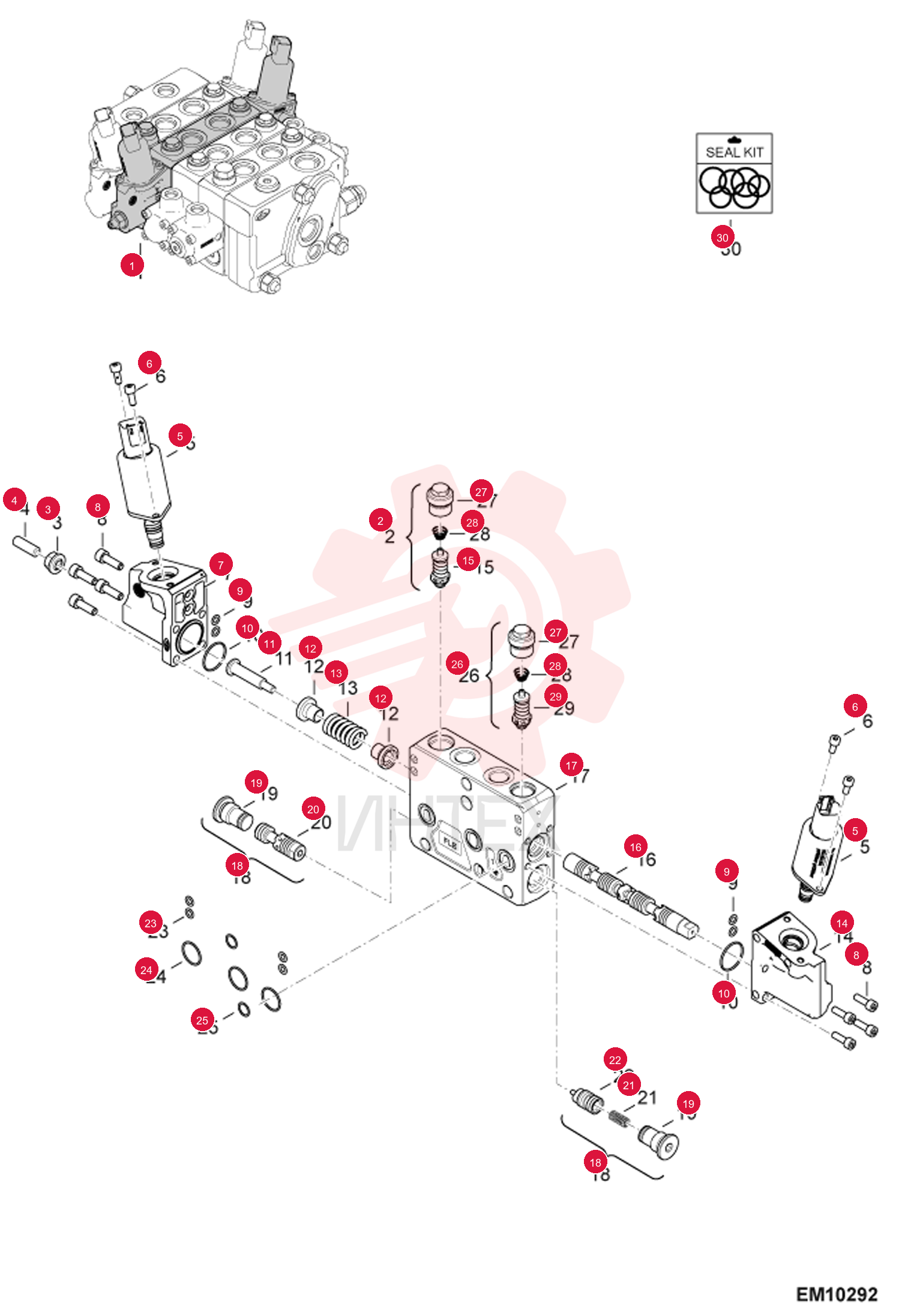

SECTION WORKING 7031592

SECTION WORKING 7031592

SECTION WORKING 7031592

1 7031592

  • 7031592 - SECTION WORKING

2 6685300

  • 6685300 - VALVE

3 7031597

  • 7031597 - KIT COIL

4 7011905

  • 7011905 - SPOOL

5 7011904

  • 7011904 - KIT WORKING SECTION

6 7011909

  • 7011909 - KIT COMPENSATOR

7 6685301

  • 6685301 - PLUG ASSEMBLY

8 7031593

  • 7031593 - KIT SEAL WORKING SECTION
