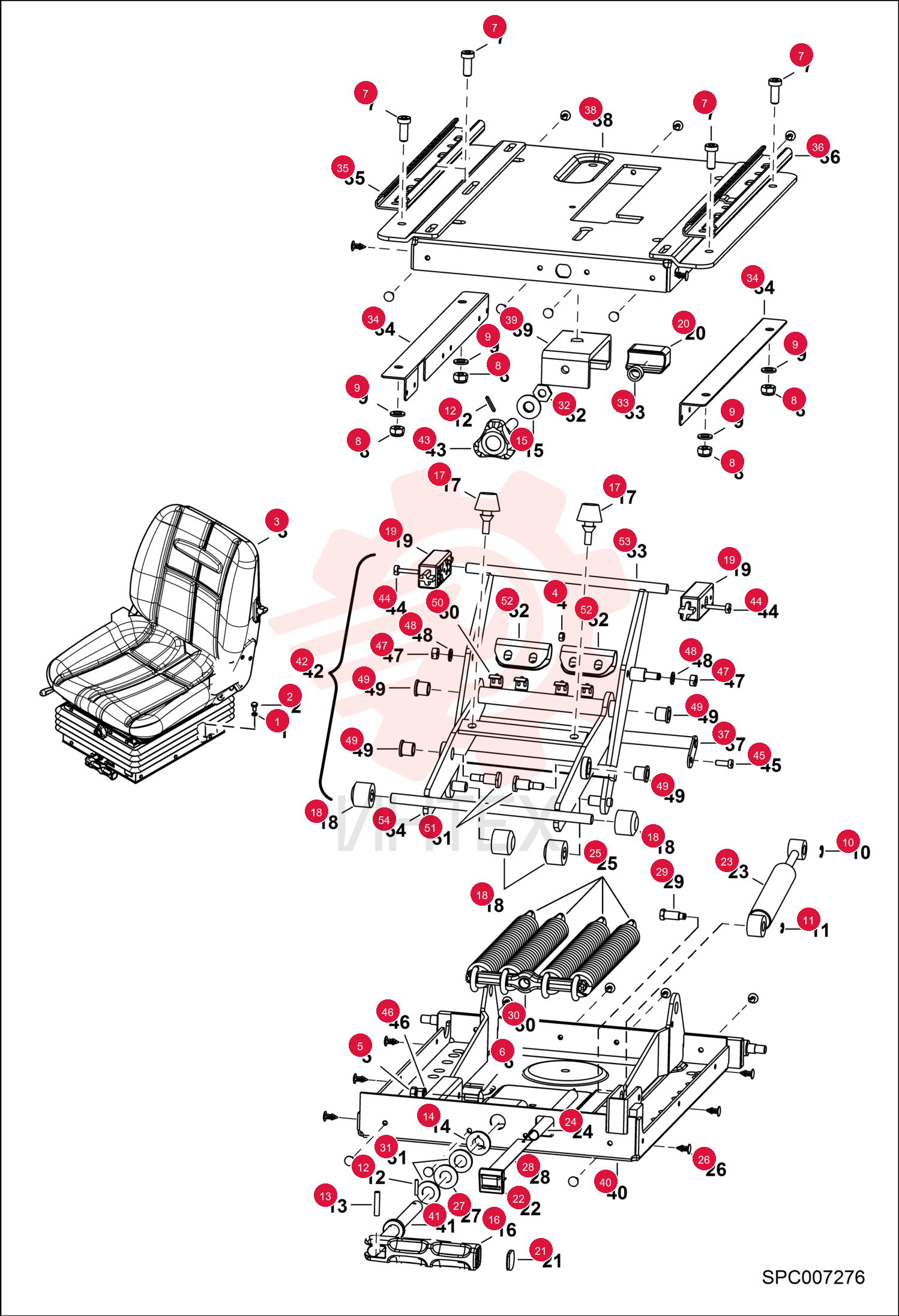

WASHER 7225260 (4)
1 7225260
- 7225260 - WASHER
2 01604-8
- 01604-8 - SCREW
3 6919587
- 6919587 - SEAT
4 7288834
- 7288834 - NUT
5 7288835
- 7288835 - NUT
6 7288836
- 7288836 - SCREW
7 7288837
- 7288837 - SCREW
8 7288838
- 7288838 - NUT
9 7288839
- 7288839 - WASHER
10 7270890
- 7270890 - RING
- SNAP
11 7288840
- 7288840 - WASHER
12 7266930
- 7266930 - PIN DOWEL
13 7266928
- 7266928 - PIN DOWEL
14 7003368
- 7003368 - WASHER
15 7288841
- 7288841 - WASHER
16 7003373
- 7003373 - HANDLE
17 7003364
- 7003364 - STOP BUMP
18 7003367
- 7003367 - ROLLER
19 7003365
- 7003365 - SHOE
20 7003362
- 7003362 - SPACER
21 7003372
- 7003372 - COVER
22 7003371
- 7003371 - COVER
23 7288842
- 7288842 - CYLINDER
24 7288843
- 7288843 - SPRING
25 7003366
- 7003366 - SPRING
26 7003374
- 7003374 - PIN
27 7266926
- 7266926 - WASHER FLAT
28 7288844
- 7288844 - PLATE
29 7270889
- 7270889 - SCREW
30 7288845
- 7288845 - ROD
- TIE
31 7266927
- 7266927 - WASHER FLAT
32 7288846
- 7288846 - NUT
33 7288847
- 7288847 - SPACER
34 7288848
- 7288848 - SUPPORT
35 7003359
- 7003359 - CHANNEL RAIL
36 7003360
- 7003360 - CHANNEL RAIL
37 7288849
- 7288849 - PIN
38 7288850
- 7288850 - PLATE
39 7288851
- 7288851 - BRACKET
40 7288852
- 7288852 - PLATE
41 7288853
- 7288853 - PIN
42 7003363
- 7003363 - ROLLER ROLL
43 7288831
- 7288831 - SCREW
44 7288832
- 7288832 - SCREW
45 7288833
- 7288833 - WASHER
46 7288855
- 7288855 - NUT
47 7288856
- 7288856 - WASHER
48 7288857
- 7288857 - BUSHING
49 7288858
- 7288858 - SPRING
50 7288859
- 7288859 - PIN
51 7288860
- 7288860 - BRACKET
52 7288861
- 7288861 - FRAME
- SEAT SUSPENSION
53 7288862
- 7288862 - FRAME
- SEAT SUSPENSION
