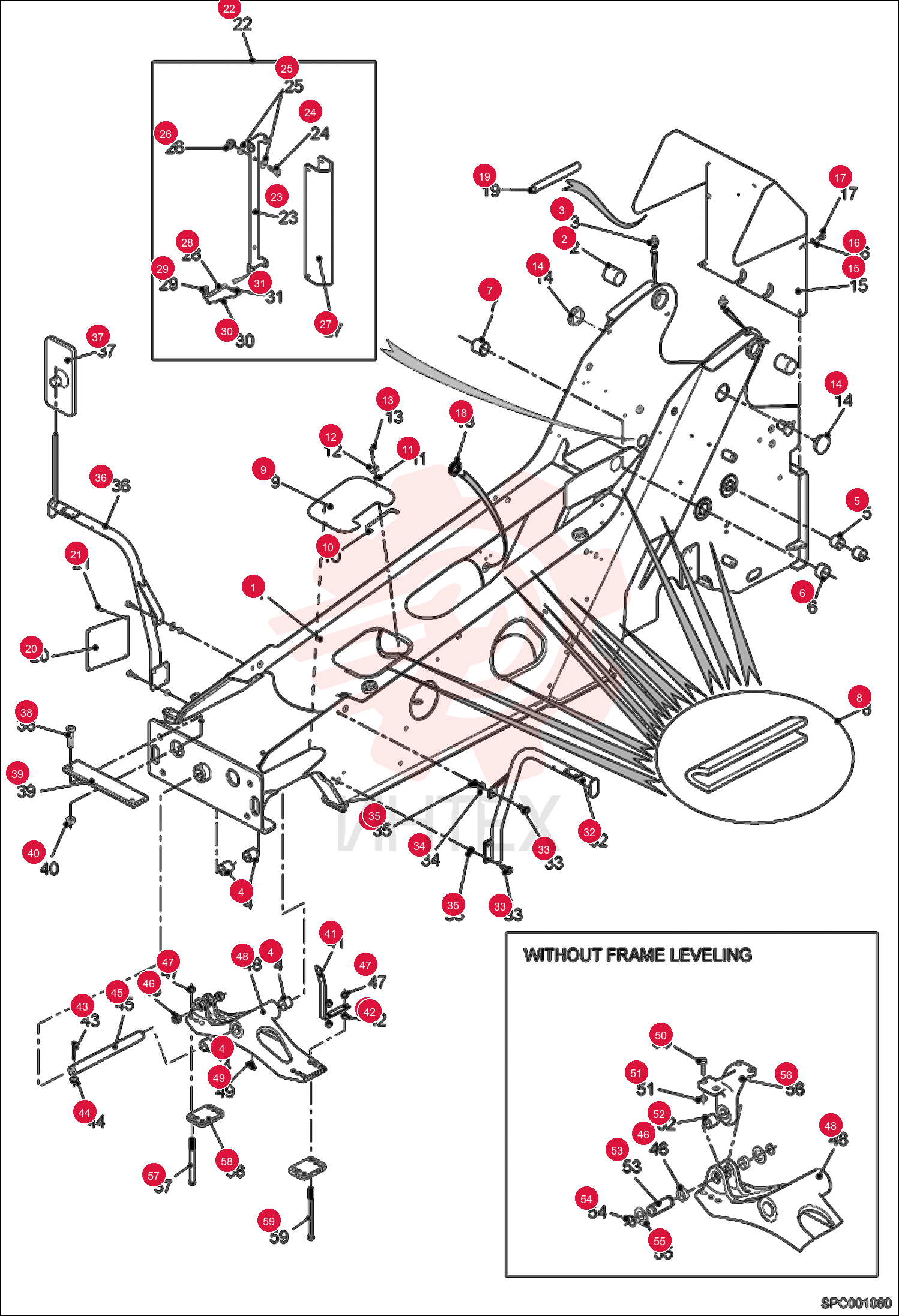

FRAME 6915048

FRAME 6915048

FRAME 6915048

1 6915048

  • 6915048 - FRAME

2 7213359

  • 7213359 - BEARING SWING ID70L80

3 01775-6

  • 01775-6 - GREASE NIPPLE

4 70811-5

  • 70811-5 - BUSHING BEARING 50X55 L 50

5 6909439

  • 6909439 - BUSHING

6 70811-5

  • 70811-5 - BUSHING BEARING 50X55 L 50

7 6909439

  • 6909439 - BUSHING

8 7229363

  • 7229363 - GASKET
  • BULK

9 79123-6

  • 79123-6 - PLATE

10 79129-3

  • 79129-3 - SEAL

11 13415-5

  • 13415-5 - WASHER

12 79124-4

  • 79124-4 - NUT

13 010338-02X

  • 010338-02X - SCREW

14 6909712

  • 6909712 - HYDRAULIC OPERATION

15 6908250

  • 6908250 - PLATE

16 01719-4

  • 01719-4 - WASHER

17 01604-8

  • 01604-8 - SCREW

18 79288-7

  • 79288-7 - GROMMET ASM56-38-46-10

19 7196170

  • 7196170 - GASKET

20 43824-2

  • 43824-2 - RIVET

21 6912354

  • 6912354 - RAM ABUTMENT ASSY

22 96344-7

  • 96344-7 - STOP

23 4CM825

  • 4CM825 - BOLT HEX HEAD

24 01697-2

  • 01697-2 - WASHER

25 01681-6

  • 01681-6 - NUT

26 96338-9

  • 96338-9 - STOP

27 7215740

  • 7215740 - PIN
  • LOCK

28 7168942

  • 7168942 - RING

29 7215741

  • 7215741 - CHAIN

30 95218-4

  • 95218-4 - PIN

31 92088-4

  • 92088-4 - BRACKET L.H

32 1CM1035

  • 1CM1035 - BOLT

33 000350-21R

  • 000350-21R - WASHER

34 7252655

  • 7252655 - NUT LOCK

35 92085-0

  • 92085-0 - SUPPORT R.H

36 100432-51C

  • 100432-51C - MIRROR
  • SIDE REAR

37 1CM1040

  • 1CM1040 - BOLT

38 6913019

  • 6913019 - ARM ABUTMENT

39 7252655

  • 7252655 - NUT LOCK

40 6913529

  • 6913529 - INDICATOR

41 01674-1

  • 01674-1 - NUT

42 7CM10100

  • 7CM10100 - SCREW HEX HD 10.9

43 7252655

  • 7252655 - NUT LOCK

44 7247000

  • 7247000 - PIN

45 32974-8

  • 32974-8 - BUSH

46 100345-20M

  • 100345-20M - NUT

47 6910986

  • 6910986 - SUPPORT FRAME

48 01782-2

  • 01782-2 - LUBRICATOR

49 53925-4

  • 53925-4 - SCREW

50 7245395

  • 7245395 - NUT LOCK

51 77192-3

  • 77192-3 - BUSH

52 7245021

  • 7245021 - PIN CYLINDER

53 5JM40

  • 5JM40 - SNAPRING

54 7308913

  • 7308913 - WASHER FLAT

55 6913153

  • 6913153 - CONNECTING ROD

56 48500-3

  • 48500-3 - SCREW

57 92099-1

  • 92099-1 - SCREW

58 101241-25J

  • 101241-25J - AXLE FIX PLATE

59 48500-3

  • 48500-3 - SCREW
