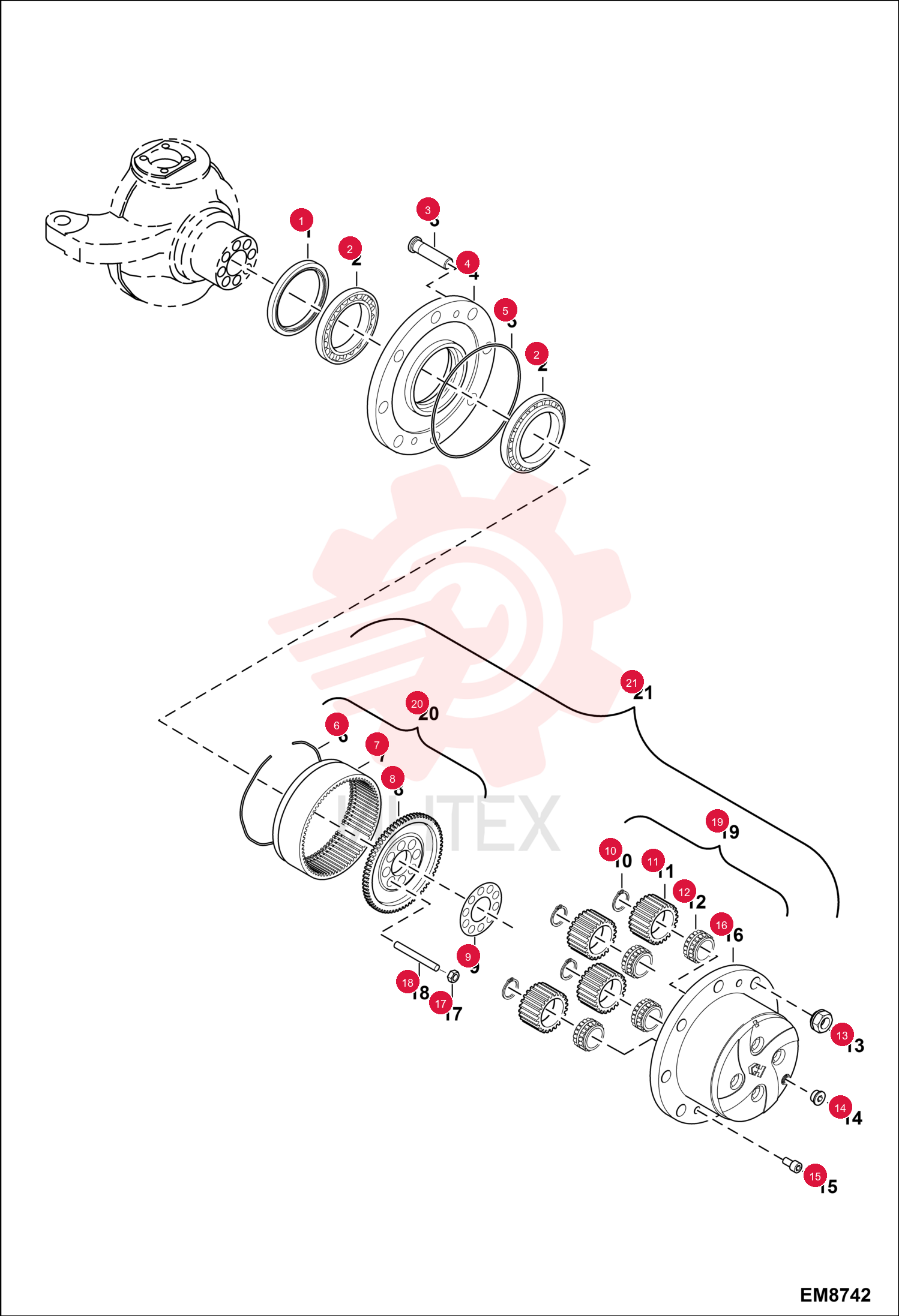

SEAL 6912846 (5)

SEAL 6912846 (5)

SEAL 6912846 (5)

1 6912846

  • 6912846 - SEAL

2 6912746

  • 6912746 - BEARING

3 6912841

  • 6912841 - WHEEL STUD

4 7360457

  • 7360457 - BOLT AXLE

5 6912856

  • 6912856 - WHEEL HUB

6 6912715

  • 6912715 - O'RING

7 6912660

  • 6912660 - SNAP RING

8 6912667

  • 6912667 - RING GEAR

9 6912875

  • 6912875 - SUPPORT

10 7017815

  • 7017815 - PLATE SAFETY

11 6912663

  • 6912663 - SNAP RING

12 6912749

  • 6912749 - SATELLITE

13 6912748

  • 6912748 - BEARING

14 7360458

  • 7360458 - NUT AXLE

15 6912686

  • 6912686 - NUT

16 6912625

  • 6912625 - PLUG

17 6912767

  • 6912767 - SCREW

18 6912943

  • 6912943 - SUPPORT

19 7022724

  • 7022724 - NUT

20 7010889

  • 7010889 - STUD

21 7010968

  • 7010968 - PLANET GEAR CARRIER

22 7009503

  • 7009503 - RING GEAR SUPPORT
