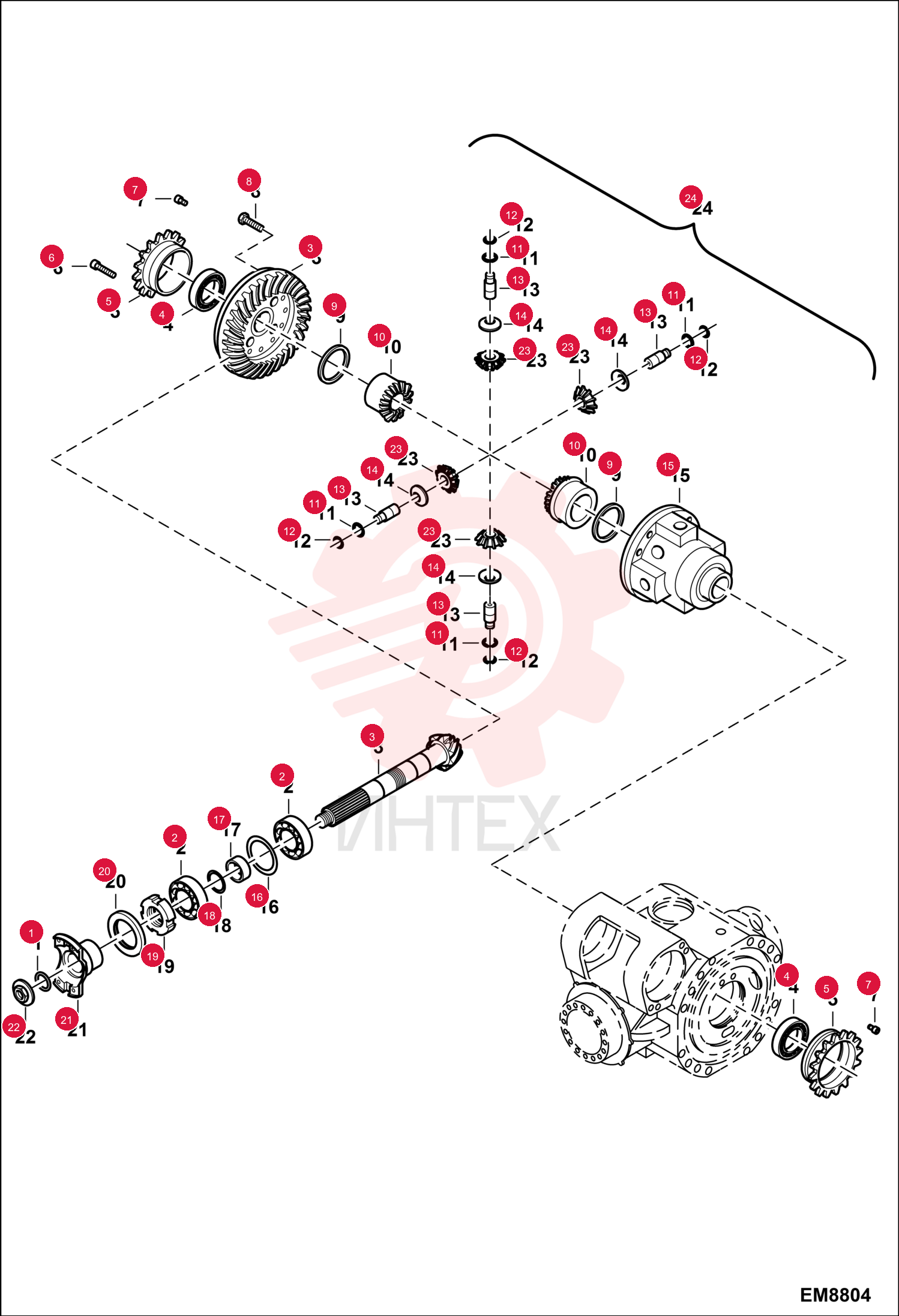

O'RING 6912855 (1)

O'RING 6912855 (1)

O'RING 6912855 (1)

1 6912855

  • 6912855 - O'RING

2 6912873

  • 6912873 - BEARING

3 7017812

  • 7017812 - GEAR BEVEL

4 6912872

  • 6912872 - BEARING

5 6912832

  • 6912832 - NUT

6 6912889

  • 6912889 - SCREW

7 6912891

  • 6912891 - SCREW

8 7283044

  • 7283044 - BOLT HEX

9 6912869

  • 6912869 - WASHER

10 6912861

  • 6912861 - PLANETARY

11 6912809

  • 6912809 - SNAP RING

12 6912810

  • 6912810 - SNAP RING

13 7022723

  • 7022723 - SPINDLE

14 6912870

  • 6912870 - WASHER

15 6912805

  • 6912805 - DIFFERENTIAL CASE

16 6912794

  • 6912794 - SHIM 0
  • 10MM

17 6912793

  • 6912793 - SHIM 0
  • 12MM

18 6912791

  • 6912791 - SHIM 0
  • 20MM

19 6912792

  • 6912792 - SHIM 0
  • 30MM

20 6912836

  • 6912836 - SPACER

21 6912795

  • 6912795 - SHIM 0
  • 15MM

22 6912796

  • 6912796 - SHIM 0
  • 20MM

23 6912798

  • 6912798 - SHIM 0
  • 50MM

24 6912797

  • 6912797 - SHIM 0
  • 40MM

25 6646369

  • 6646369 - NUT
  • RING

26 7282995

  • 7282995 - SEAL AXLE

27 7017795

  • 7017795 - FLANGE

28 6912834

  • 6912834 - NUT

29 7010892

  • 7010892 - GEAR
  • PINION

30 6912819

  • 6912819 - DIFFERENTIAL
