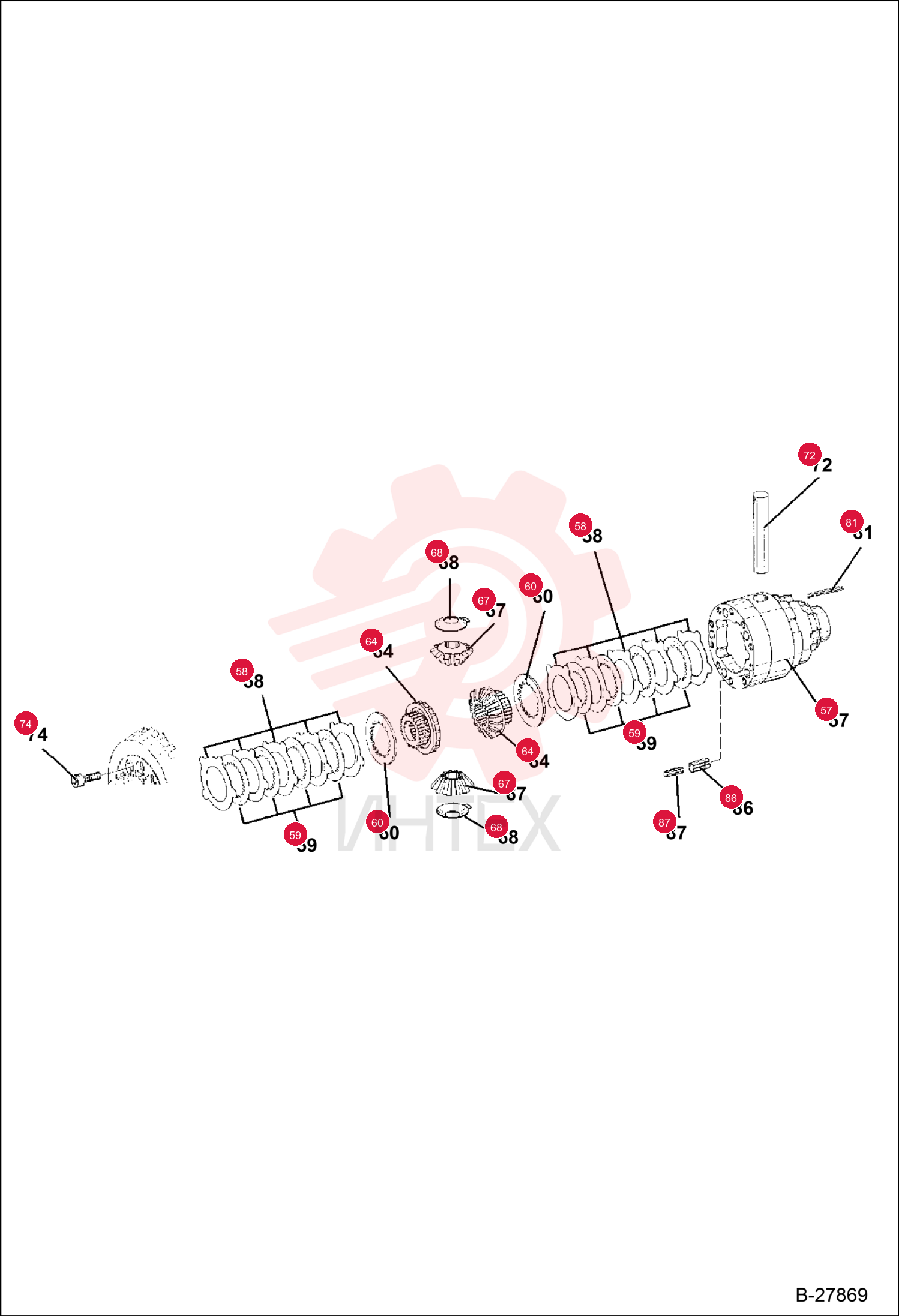

HOUSING, DIFF 5904658539 (2)

HOUSING, DIFF 5904658539 (2)

HOUSING, DIFF 5904658539 (2)

1 5904658539

  • 5904658539 - HOUSING
  • DIFF

2 5904658283

  • 5904658283 - PLATE
  • FRICTION
  • 1
  • 4 mm

3 5904658280

  • 5904658280 - PLATE
  • FRICTION
  • 1
  • 1 mm

4 5904658281

  • 5904658281 - PLATE
  • FRICTION
  • 1
  • 2 mm

5 5904658282

  • 5904658282 - PLATE
  • FRICTION
  • 1
  • 3 mm

6 5904658284

  • 5904658284 - DISC
  • FRICTION

7 5904658285

  • 5904658285 - DISC
  • FRICTION

8 5904658286

  • 5904658286 - GEAR
  • BEVEL

9 5904658287

  • 5904658287 - GEAR
  • BEVEL

10 5904658288

  • 5904658288 - WASHER

11 5904658289

  • 5904658289 - SHAFT
  • DIFF PINION

12 1045907247

  • 1045907247 - BOLT

13 1380622927

  • 1380622927 - PIN
  • SPRING

14 5904658559

  • 5904658559 - PIN
  • SPRING

15 1380622237

  • 1380622237 - PIN
  • SPRING
