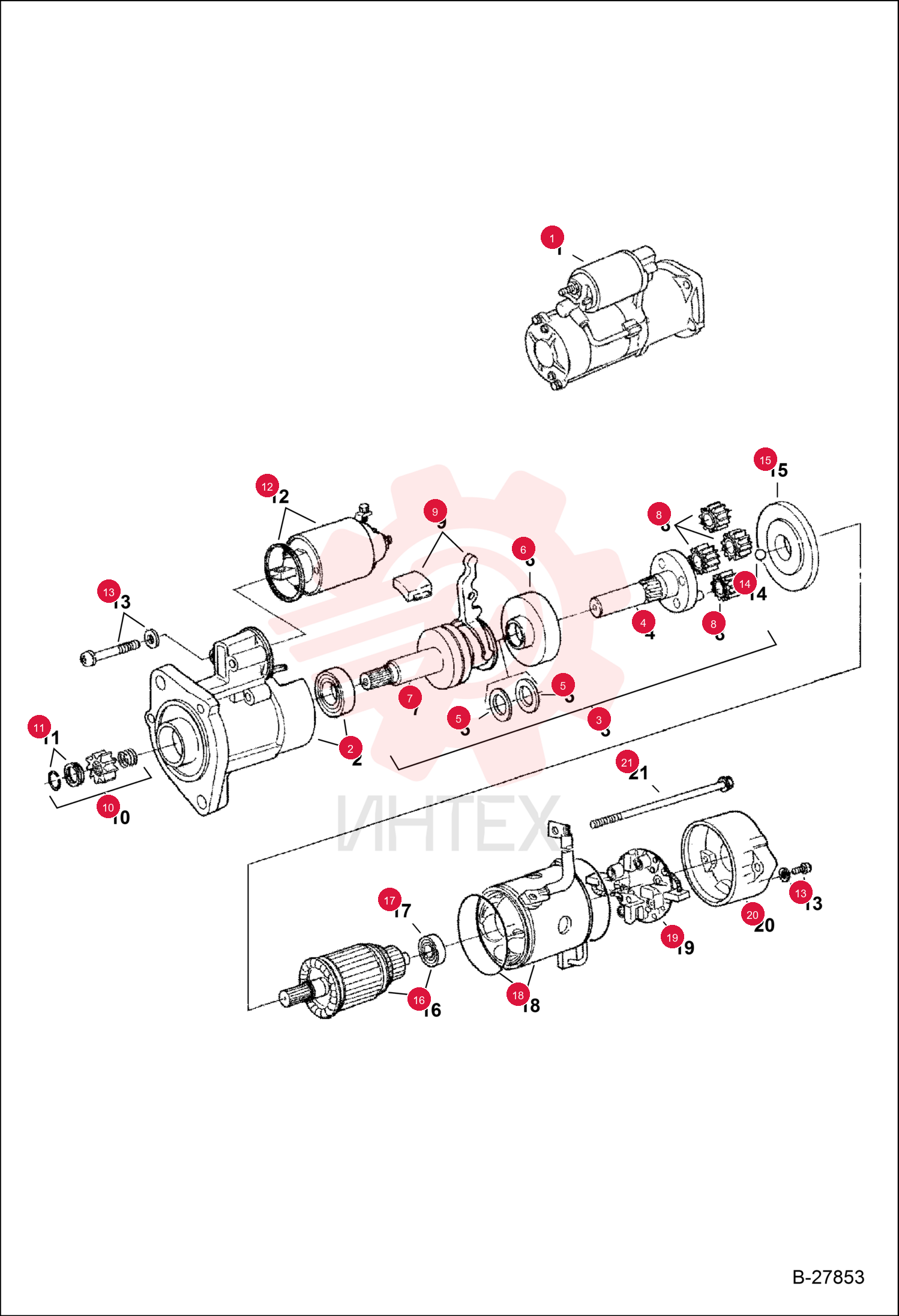

STARTER 6689353

STARTER 6689353

STARTER 6689353

1 6689353

  • 6689353 - STARTER

2 6689354

  • 6689354 - BRACKET

3 6689355

  • 6689355 - SHAFT
  • Ref. 4-9

4 6689360

  • 6689360 - SHAFT

5 6689267

  • 6689267 - WASHER

6 6689259

  • 6689259 - GEAR

7 6689263

  • 6689263 - CLUTCH

8 6689260

  • 6689260 - GEAR ASSEMBLY

9 6689356

  • 6689356 - ASSY
  • LEVER

10 6689361

  • 6689361 - GEAR
  • PINION
  • W/Ref. 11

11 6689254

  • 6689254 - RETAINER

12 6689248

  • 6689248 - SWITCH

13 6689366

  • 6689366 - SET SCREW

14 6689369

  • 6689369 - BALL

15 6689268

  • 6689268 - SEAL

16 6689357

  • 6689357 - ARMATURE
  • W/Ref. 17

17 6689258

  • 6689258 - BEARING

18 6689358

  • 6689358 - WINDING

19 6689364

  • 6689364 - HOLDER

20 6689365

  • 6689365 - SPRING
  • BRUSH

21 6689363

  • 6689363 - BRUSH

22 6689359

  • 6689359 - BRACKET

23 6689362

  • 6689362 - BOLT
