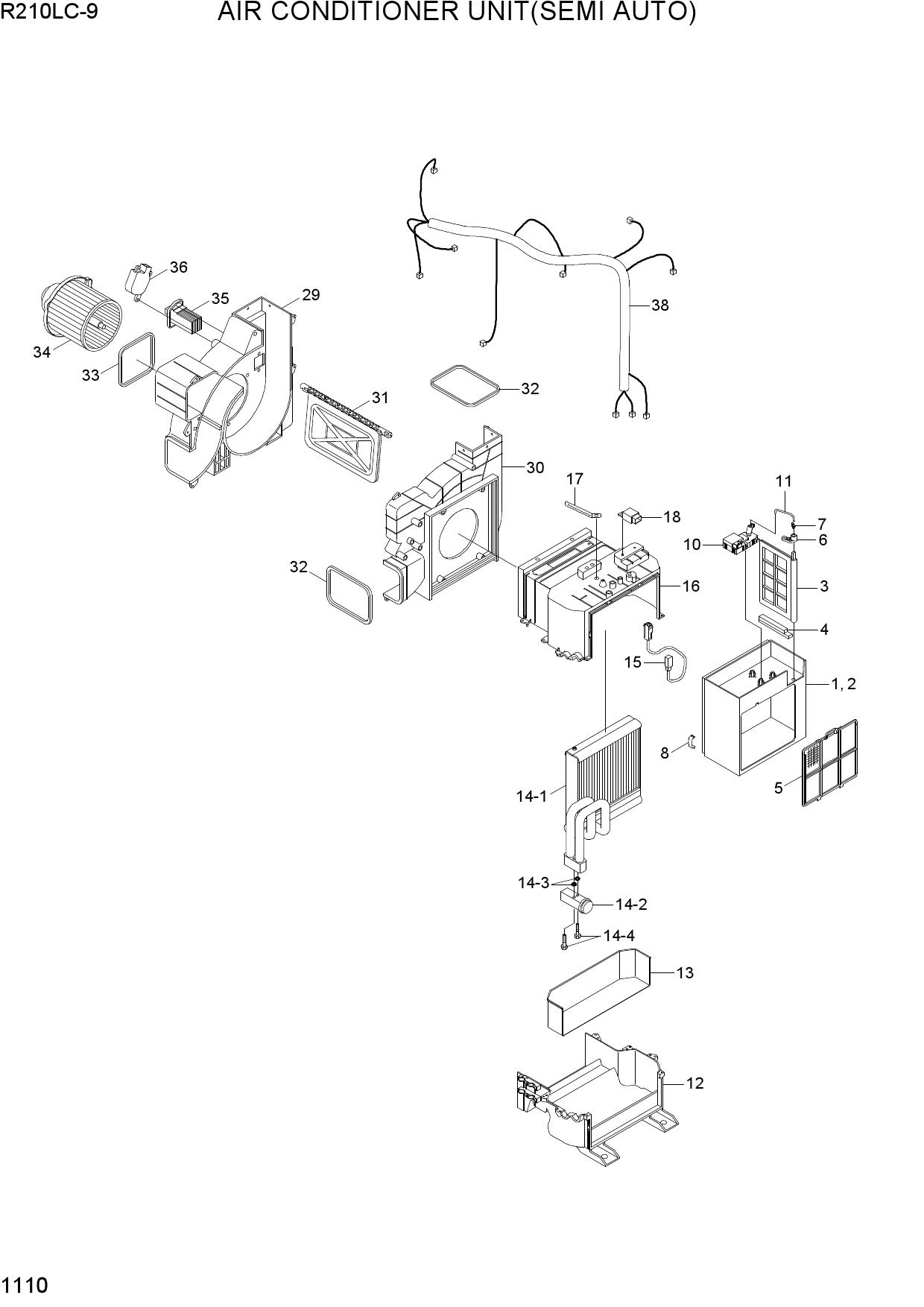

AIR CONDITIONER UNIT(SEMI AUTO)
1 AM70003600-3
- AM70003600-3 - SEAL-FILTER
- FRESH
- Поз.: 4
2 11N6-90770
- 11N6-90770 - AIR FILTER-REFRESH
- Поз.: 5
3 3AH0705
- 3AH0705 - ROD-CLAMP
- Поз.: 7
4 4AH0688
- 4AH0688 - CLIP-CASE
- Поз.: 8
5 11Q6-90570
- 11Q6-90570 - MOTOR ACT-INTAKE
- Поз.: 10
6 AM52300100-4
- AM52300100-4 - ROD-INTAKE
- Поз.: 11
7 AH002402
- AH002402 - HVAC CASE-LOW
- Поз.: 12
8 AH002463
- AH002463 - HVAC INSULATION-LOW
- Поз.: 13
9 11Q6-90560
- 11Q6-90560 - CORE ASSY-EVAP
- Поз.: 14
10 A1W00864
- A1W00864 - CORE-EVAP
- Поз.: 14-1
11 11Q6-90551
- 11Q6-90551 - VALVE-EXPANSION
- Поз.: 14-2
12 A308000214-2
- A308000214-2 - O-RING
- Поз.: 14-3
13 A1W00837
- A1W00837 - BOLT-TXV
- Поз.: 14-4
14 AH100730
- AH100730 - THERMISTOR
- Поз.: 15
15 AH002565
- AH002565 - HVAC CASE-UPP
- Поз.: 16
16 4AH0643
- 4AH0643 - HOLDER-WIRE
- Поз.: 17
17 11N6-90820
- 11N6-90820 - RELAY
- Поз.: 18
18 AH002407
- AH002407 - DOOR ASSY-VENT
- Поз.: 31
19 AW80000303-3
- AW80000303-3 - SEAL-SPONGE A
- Поз.: 32
20 AW80000304-3
- AW80000304-3 - SEAL-SPONGE B
- Поз.: 33
21 11N6-90700
- 11N6-90700 - FAN & MOTOR
- Поз.: 34
22 11Q6-90530
- 11Q6-90530 - FET
- Поз.: 35
23 11Q6-90520
- 11Q6-90520 - MOTOR ACT ASSY-VENT DF
- Поз.: 36
24 11Q6-90610
- 11Q6-90610 - WIRING ASSY-SATC
- Поз.: 38
