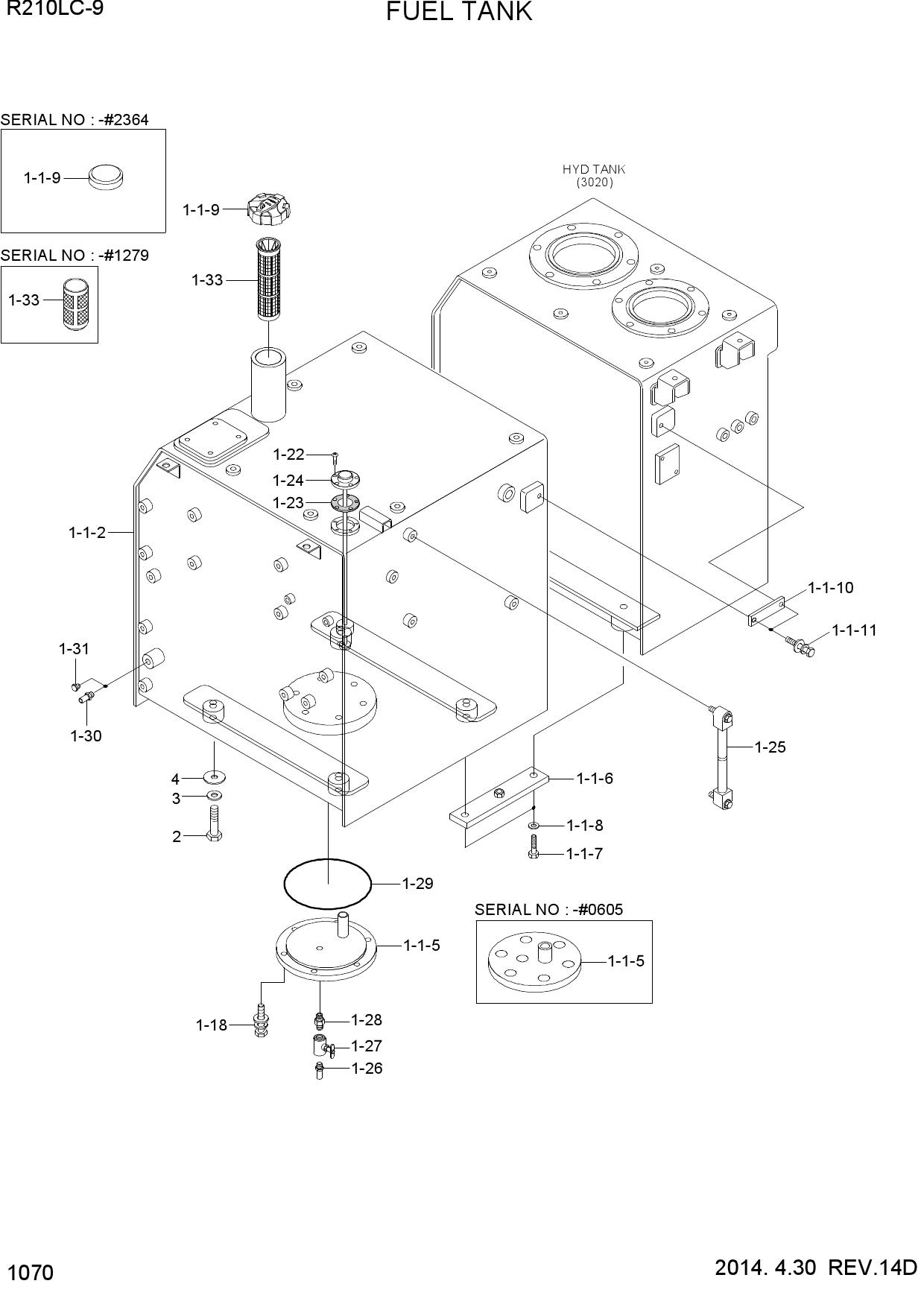

FUEL TANK
1 31Q6-02023
- 31Q6-02023 - FUEL TANK WA
- Поз.: 1-1-2
2 31Q6-02024
- 31Q6-02024 - FUEL TANK WA
- Поз.: 1-1-2
3 31Q6-02025
- 31Q6-02025 - FUEL TANK WA
- Поз.: 1-1-2
4 31Q6-02026
- 31Q6-02026 - FUEL TANK WA
- Поз.: 1-1-2
5 33Q6-02020
- 33Q6-02020 - FUEL TANK WA
- Поз.: 1-1-2
6 33Q6-02021
- 33Q6-02021 - FUEL TANK WA
- Поз.: 1-1-2
7 31Q6-02120
- 31Q6-02120 - COVER-DRAIN
- Поз.: 1-1-5
8 31Q6-02130
- 31Q6-02130 - COVER-DRAIN
- Поз.: 1-1-5
9 31Q6-01350
- 31Q6-01350 - BRACKET
- Поз.: 1-1-6
10 S017-20050D
- S017-20050D - BOLT-HEX
- Поз.: 1-1-7
11 S441-200006
- S441-200006 - WASHER-HARDENED
- Поз.: 1-1-8
12 31N4-02120
- 31N4-02120 - FUEL CAP ASSY
- Поз.: 1-1-9
13 31Q4-02130
- 31Q4-02130 - FUEL CAP ASSY
- Поз.: 1-1-9
14 31M9-02130
- 31M9-02130 - FUEL CAP ASSY
- Поз.: 1-1-9
15 32M9-02130
- 32M9-02130 - FUEL CAP ASSY
- Поз.: 1-1-9
16 31Q4-02120
- 31Q4-02120 - FUEL CAP ASSY
- Поз.: 1-1-9
17 31M9-02120
- 31M9-02120 - FUEL CAP ASSY
- Поз.: 1-1-9
18 32M9-02120
- 32M9-02120 - FUEL CAP ASSY
- Поз.: 1-1-9
19 31Q6-01340
- 31Q6-01340 - PLATE
- Поз.: 1-1-10
20 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 1-1-11
21 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 1-18
22 S131-051546
- S131-051546 - SCREW-W/WASHER
- Поз.: 1-22
23 E128-1053
- E128-1053 - GASKET
- Поз.: 1-23
24 21N4-10500
- 21N4-10500 - SENDER-FUEL
- Поз.: 1-24
25 21Q4-10700
- 21Q4-10700 - SENDER-FUEL
- Поз.: 1-24
26 33Q6-02600
- 33Q6-02600 - GAUGE-LEVEL
- Поз.: 1-25
27 P090-100404
- P090-100404 - CONNECTOR-HOSE
- Поз.: 1-26
28 E131-1006
- E131-1006 - VALVE-NEEDLE
- Поз.: 1-27
29 31E5-3049
- 31E5-3049 - FITTING
- Поз.: 1-28
30 S632-170001
- S632-170001 - O-RING
- Поз.: 1-29
31 P090-101608
- P090-101608 - CONNECTOR-HOSE
- Поз.: 1-30
32 P220-430204
- P220-430204 - PLUG-HEX
- Поз.: 1-31
33 31QA-02080
- 31QA-02080 - STRAINER
- Поз.: 1-33
34 31M9-02080
- 31M9-02080 - STRAINER
- Поз.: 1-33
35 S017-20050D
- S017-20050D - BOLT-HEX
- Поз.: 2
36 91E6-60200-DA
- 91E6-60200-DA - WASHER-HARDENED
- Поз.: 3
37 31N8-01300
- 31N8-01300 - SHIM(1.0T)
- Поз.: 4
