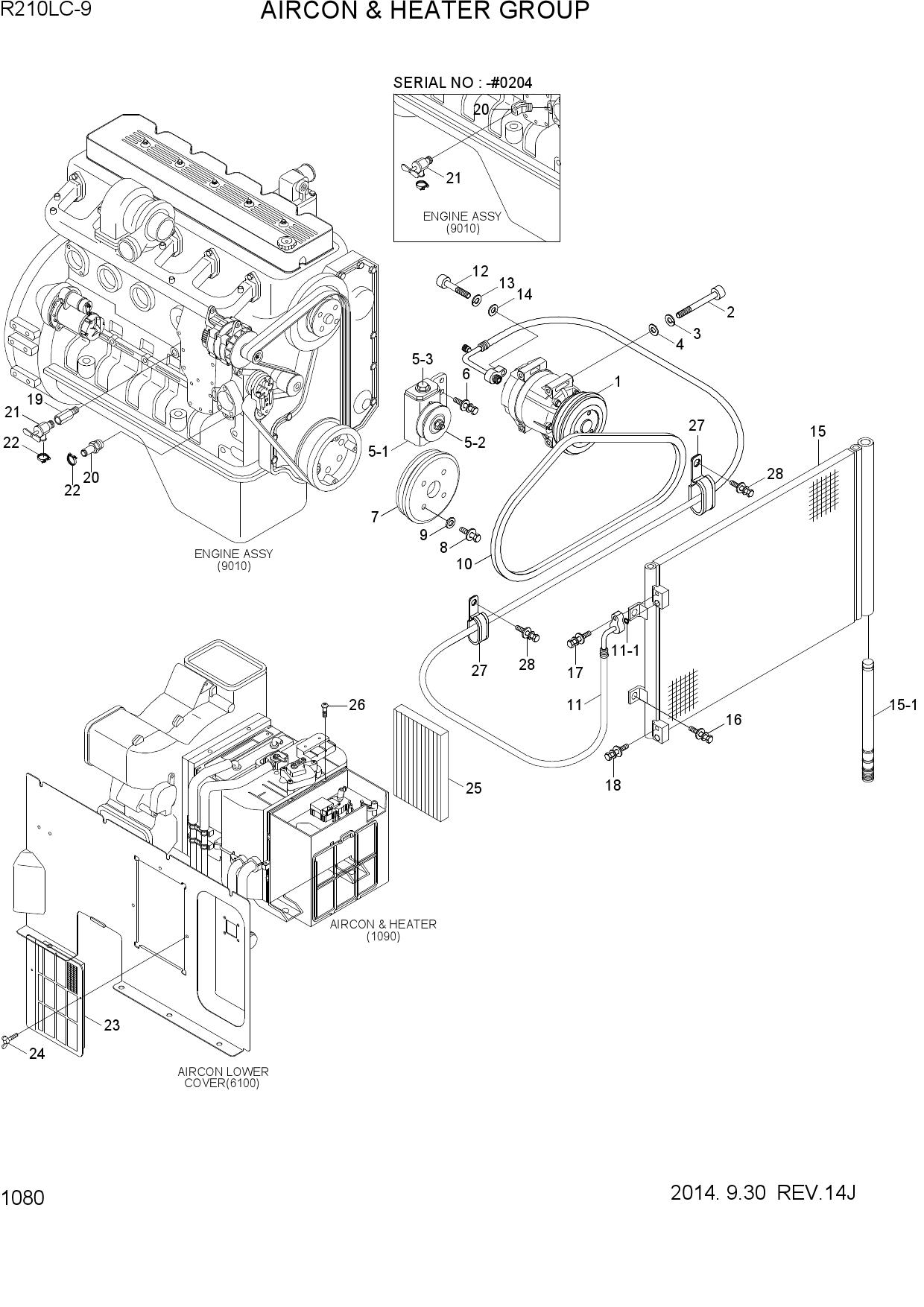

AIRCON & HEATER GROUP
1 11Q6-90040
- 11Q6-90040 - COMPRESSOR ASSY
- Поз.: 1
2 S109-080856
- S109-080856 - BOLT-SOCKET
- Поз.: 2
3 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 3
4 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 4
5 11N6-90110
- 11N6-90110 - PULLEY-IDLE
- Поз.: 5
6 A4760-508-00-2
- A4760-508-00-2 - BRACKET-PULLEY
- Поз.: 5-1
7 A4700-511-01-2
- A4700-511-01-2 - PULLEY-IDLE
- Поз.: 5-2
8 A8900-518-03-3
- A8900-518-03-3 - BOLT-TENSION
- Поз.: 5-3
9 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 6
10 11N8-97101
- 11N8-97101 - PULLEY-AIR CON
- Поз.: 7
11 S088-070166
- S088-070166 - BOLT-HEX
- UNIFIED
- Поз.: 8
12 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 9
13 11N6-91130
- 11N6-91130 - V-BELT
- Поз.: 10
14 11N6-90250
- 11N6-90250 - V-BELT
- Поз.: 10
15 11Q6-90360
- 11Q6-90360 - HOSE-DISCHARGE
- Поз.: 11
16 A3050-002-05-2
- A3050-002-05-2 - O-RING
- Поз.: 11-1
17 S018-100356
- S018-100356 - BOLT-HEX
- Поз.: 12
18 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 13
19 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 14
20 11Q6-90071
- 11Q6-90071 - CONDENSER-R/DRYER
- Поз.: 15
21 A2W00701D
- A2W00701D - CARTRIDGE ASSY
- Поз.: 15-1
22 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 16
23 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 17
24 S035-063526
- S035-063526 - BOLT-W/WASHER
- Поз.: 18
25 11LB-90160
- 11LB-90160 - ADAPTER
- Поз.: 19
26 11Q8-90350
- 11Q8-90350 - FITTING-CONNECTOR
- Поз.: 20
27 11Q6-90080
- 11Q6-90080 - CONNECTOR-HEATER
- Поз.: 20
28 14L1-01350
- 14L1-01350 - VALVE-HEATER
- Поз.: 21
29 14L1-01350
- 14L1-01350 - VALVE-HEATER
- Поз.: 21
30 S572-220006
- S572-220006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 22
31 11Q6-90240
- 11Q6-90240 - FILTER-REC
- Поз.: 23
32 S091-060206
- S091-060206 - BOLT-WING
- Поз.: 24
33 11Q6-90510
- 11Q6-90510 - FILTER-AIR CON
- Поз.: 25
34 S151-040126
- S151-040126 - SCREW-TAPPING
- Поз.: 26
35 31L7-10230
- 31L7-10230 - CLAMP
- Поз.: 27
36 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 28
