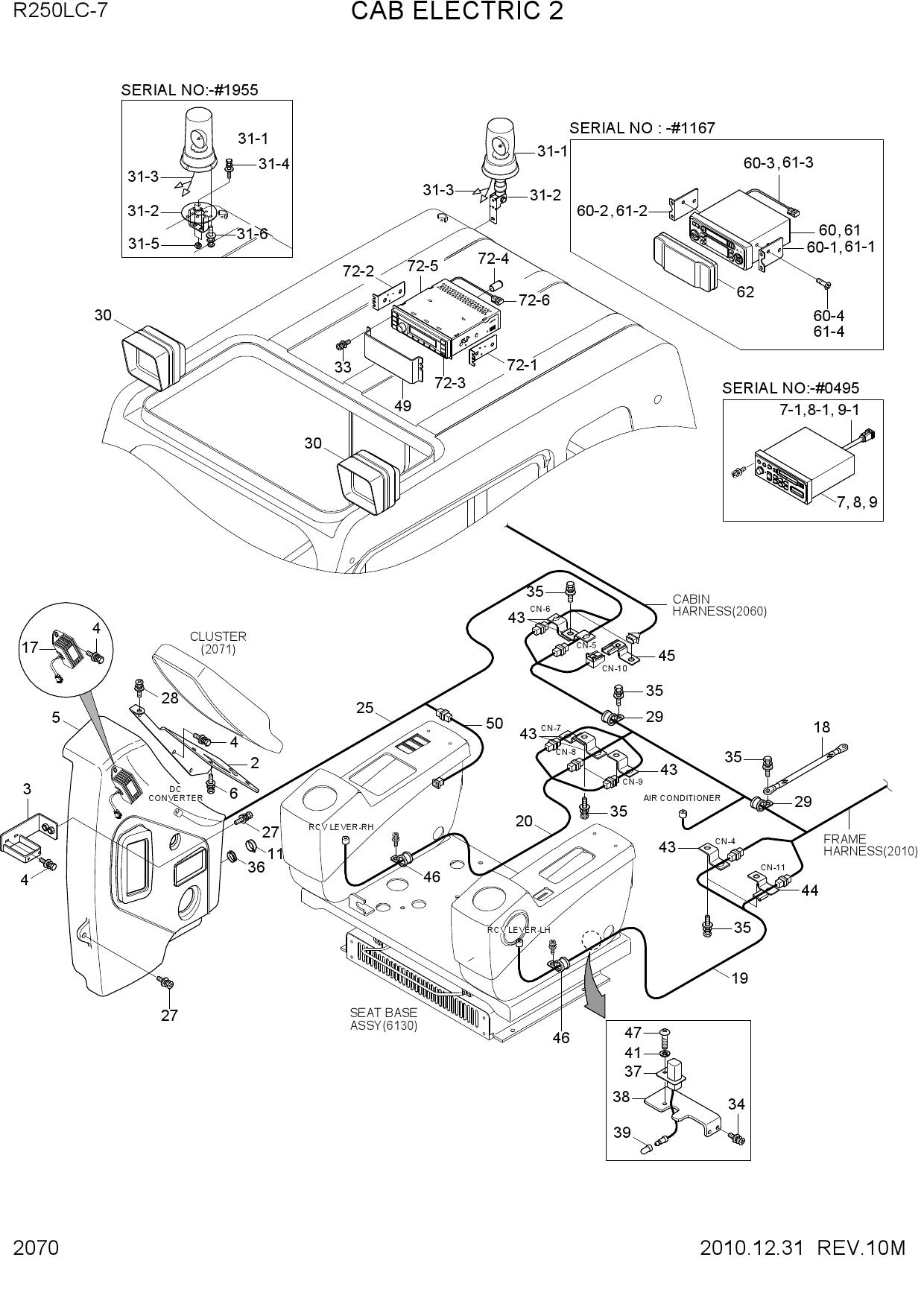

CAB ELECTRIC 2
1 21N8-21011
- 21N8-21011 - BRACKET WA
- Поз.: 2
2 21N8-21070
- 21N8-21070 - BRACKET WA
- Поз.: 3
3 S035-061622
- S035-061622 - BOLT-W/WASHER
- Поз.: 4
4 21N8-21021
- 21N8-21021 - COVER-WIPER MOTOR
- Поз.: 5
5 S035-081622
- S035-081622 - BOLT-W/WASHER
- Поз.: 6
6 21N8-22010
- 21N8-22010 - CASSETTE RADIO
- Поз.: 7
7 375500043204
- 375500043204 - WIRE ASSY-20 H818
- Поз.: 7-1
8 21N8-22020
- 21N8-22020 - CASSETTE RADIO
- Поз.: 8
9 375500043204
- 375500043204 - WIRE ASSY-20 H818
- Поз.: 8-1
10 21N8-22030
- 21N8-22030 - CASSETTE RADIO
- Поз.: 9
11 375500043204
- 375500043204 - WIRE ASSY-20 H818
- Поз.: 9-1
12 21N8-20010
- 21N8-20010 - SOCKET-12V
- Поз.: 11
13 21N8-20201
- 21N8-20201 - DC-DC CONVERTER ASSY
- Поз.: 17
14 21EH-30720
- 21EH-30720 - STRAP-EARTH
- Поз.: 18
15 21N8-11160
- 21N8-11160 - HARNESS-CONSOLE
- Поз.: 19
16 21N8-11151
- 21N8-11151 - HARNESS-CONSOLE
- RH
- Поз.: 20
17 21N4-02810
- 21N4-02810 - HARNESS-CONSOLE
- RH
- Поз.: 20
18 21N8-11181
- 21N8-11181 - HARNESS-SIDE
- RH
- Поз.: 25
19 S132-061676
- S132-061676 - SCREW-W/WASHER
- Поз.: 27
20 S132-061646
- S132-061646 - SCREW-W/WASHER
- Поз.: 28
21 S543-280003
- S543-280003 - CLAMP-TUBE
- Поз.: 29
22 21N6-20211
- 21N6-20211 - WORK LAMP ASSY
- Поз.: 30
23 S866-240650
- S866-240650 - BULB
- Поз.: 30-1
24 21Q4-30381
- 21Q4-30381 - BEACON LAMP ASSY
- Поз.: 31
25 21EK-10140
- 21EK-10140 - BEACON LAMP
- Поз.: 31-1
26 21Q4-20700
- 21Q4-20700 - BEACON LAMP
- Поз.: 31-1
27 21EK-10330
- 21EK-10330 - BULB-H1
- 70W
- Поз.: 31-11
28 21N8-00580
- 21N8-00580 - BRACKET-BEACON LAMP
- Поз.: 31-2
29 21Q4-31000
- 21Q4-31000 - BRACKET-TILT
- Поз.: 31-2
30 21EK-20240
- 21EK-20240 - HARNESS-BEACON LAMP
- Поз.: 31-3
31 21N4-02830
- 21N4-02830 - HARNESS-BEACON LAMP
- Поз.: 31-3
32 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 31-4
33 S205-101006
- S205-101006 - NUT-HEX
- Поз.: 31-5
34 S131-051546
- S131-051546 - SCREW-W/WASHER
- Поз.: 31-6
35 S131-051046
- S131-051046 - SCREW-W/WASHER
- Поз.: 33
36 S131-051646
- S131-051646 - SCREW-W/WASHER
- Поз.: 34
37 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 35
38 S661-260300
- S661-260300 - CAP-RUBBER
- Поз.: 36
39 21M5-50250
- 21M5-50250 - SWITCH ASSY
- Поз.: 37
40 21N8-21080
- 21N8-21080 - PLATE
- Поз.: 38
41 S890-107508
- S890-107508 - TUBE-PVC
- Поз.: 39
42 21N4-01130
- 21N4-01130 - PLATE-CLIP
- Поз.: 43
43 25D1-10660
- 25D1-10660 - CLIP ASSY
- Поз.: 44
44 25D1-10650
- 25D1-10650 - CLIP ASSY
- Поз.: 45
45 S591-000802
- S591-000802 - CLIP-HARNESS
- Поз.: 46
46 S161-040106
- S161-040106 - SCREW-CROSS R/ROUND
- Поз.: 47
47 21N6-10450
- 21N6-10450 - PLATE-C/RADIO COVER
- Поз.: 49
48 21N8-40190
- 21N8-40190 - EXT.HARNESS-A/RIDE SEAT
- Поз.: 50
49 21N6-10480
- 21N6-10480 - BRACKET-LH
- Поз.: 60-1
50 21N6-10490
- 21N6-10490 - BRACKET-RH
- Поз.: 60-2
51 21N8-01600
- 21N8-01600 - HARNESS-EXT WIRE
- Поз.: 60-3
52 S141-050102
- S141-050102 - SCREW-FLAT HD
- Поз.: 60-4
53 21N8-40500
- 21N8-40500 - CD PLAYER ASSY
- Поз.: 61
54 21N6-10480
- 21N6-10480 - BRACKET-LH
- Поз.: 61-1
55 21N6-10490
- 21N6-10490 - BRACKET-RH
- Поз.: 61-2
56 21N8-01600
- 21N8-01600 - HARNESS-EXT WIRE
- Поз.: 61-3
57 S141-050102
- S141-050102 - SCREW-FLAT HD
- Поз.: 61-4
58 21N8-40940
- 21N8-40940 - COVER-DUST
- Поз.: 62
59 21N8-50100
- 21N8-50100 - RADIO/USB PLAYER ASSY
- Поз.: 72
60 21N8-54000
- 21N8-54000 - RADIO/USB PLAYER ASSY
- Поз.: 72
61 21LM-31010
- 21LM-31010 - BRACKET L
- Поз.: 72-1
62 21LM-31020
- 21LM-31020 - BRACKET R
- Поз.: 72-2
63 21LM-31030
- 21LM-31030 - CABLE-MP3
- Поз.: 72-3
64 21LM-31040
- 21LM-31040 - CAP
- Поз.: 72-4
65 21LM-31050
- 21LM-31050 - BODY-RADIO/USB
- Поз.: 72-5
66 21N8-50110
- 21N8-50110 - HARNESS-EXT
- WIRE
- Поз.: 72-6
