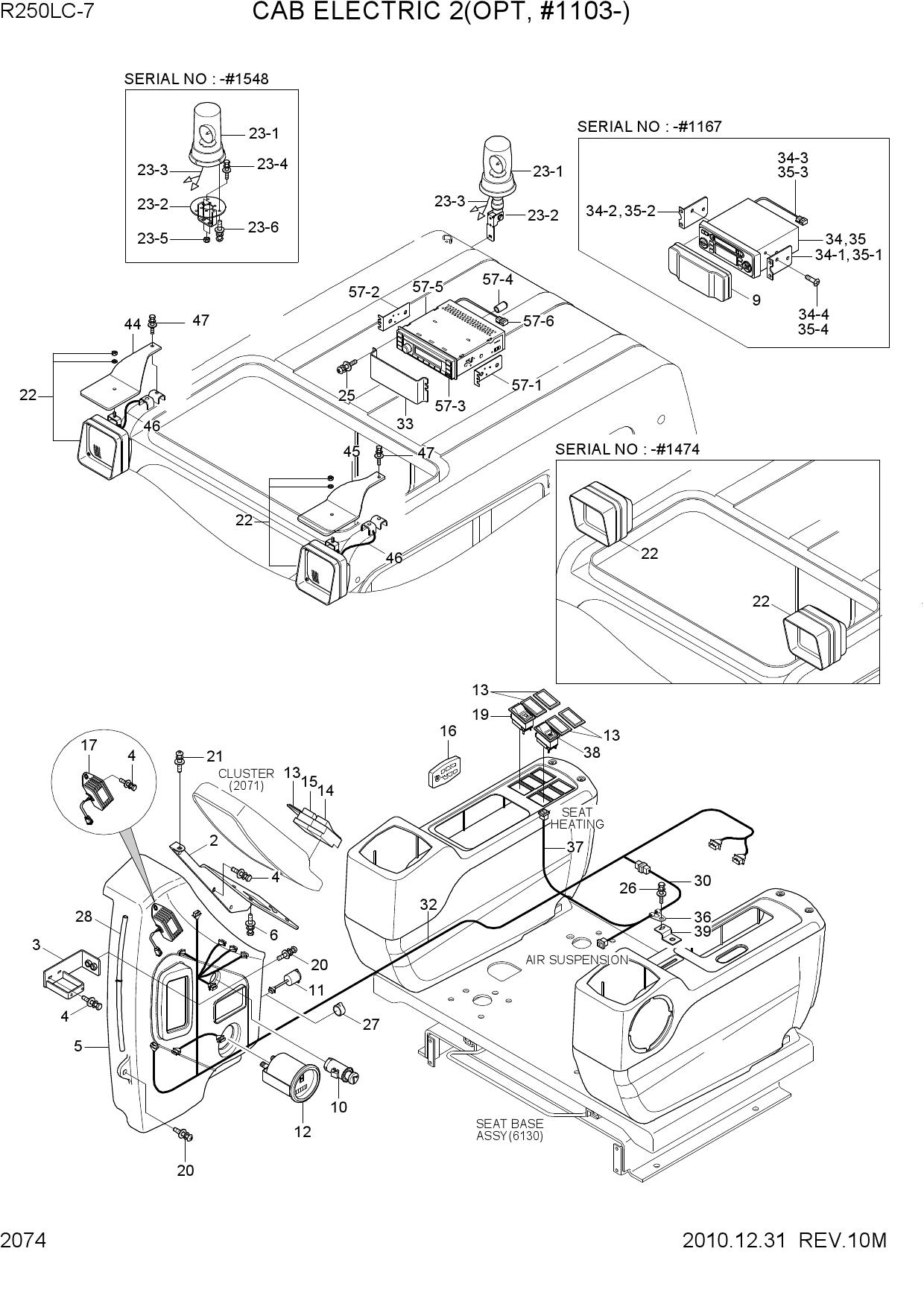

CAB ELECTRIC 2(OPT, #1103-)
1 21N6-01320
- 21N6-01320 - BRACKET WA
- Поз.: 2
2 21N6-01330
- 21N6-01330 - BRACKET WA
- Поз.: 3
3 S035-061626
- S035-061626 - BOLT-W/WASHER
- Поз.: 4
4 21N6-01310
- 21N6-01310 - COVER-WIPER MOTOR
- Поз.: 5
5 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 6
6 21N8-40940
- 21N8-40940 - COVER-DUST
- Поз.: 9
7 21E4-0008
- 21E4-0008 - LIGHTER-CIGAR
- Поз.: 10
8 21N8-20010
- 21N8-20010 - SOCKET-12V
- Поз.: 11
9 21N4-11070
- 21N4-11070 - HOUR METER ASSY
- Поз.: 12
10 21E6-10460
- 21E6-10460 - COVER
- Поз.: 13
11 21E6-40130
- 21E6-40130 - SWITCH-OVER LOAD
- Поз.: 14
12 21E9-20110
- 21E9-20110 - SWITCH-QUICK CLAMP
- Поз.: 15
13 21N8-40910
- 21N8-40910 - SWITCH-REMOTE CNTL
- Поз.: 16
14 21N8-20201
- 21N8-20201 - DC-DC CONVERTER ASSY
- Поз.: 17
15 21E6-30440
- 21E6-30440 - SWITCH-BEACON
- Поз.: 19
16 S132-061676
- S132-061676 - SCREW-W/WASHER
- Поз.: 20
17 S132-061546
- S132-061546 - SCREW-W/WASHER
- Поз.: 21
18 21N6-20211
- 21N6-20211 - WORK LAMP ASSY
- Поз.: 22
19 S866-240650
- S866-240650 - BULB
- Поз.: 22-1
20 21Q4-30380
- 21Q4-30380 - BEACON LAMP ASSY
- Поз.: 23
21 21Q4-30381
- 21Q4-30381 - BEACON LAMP ASSY
- Поз.: 23
22 21EK-10140
- 21EK-10140 - BEACON LAMP
- Поз.: 23-1
23 21Q4-20700
- 21Q4-20700 - BEACON LAMP
- Поз.: 23-1
24 21EK-10330
- 21EK-10330 - BULB-H1
- 70W
- Поз.: 23-11
25 21EK-10330
- 21EK-10330 - BULB-H1
- 70W
- Поз.: 23-11
26 21N8-00581BG
- 21N8-00581BG - BRACKET-BEACON LAMP
- Поз.: 23-2
27 21Q4-20600
- 21Q4-20600 - BRACKET-TILT
- Поз.: 23-2
28 21Q4-31000
- 21Q4-31000 - BRACKET-TILT
- Поз.: 23-2
29 21EK-20240
- 21EK-20240 - HARNESS-BEACON LAMP
- Поз.: 23-3
30 21N4-02830
- 21N4-02830 - HARNESS-BEACON LAMP
- Поз.: 23-3
31 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 23-4
32 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 23-5
33 S131-051546
- S131-051546 - SCREW-W/WASHER
- Поз.: 23-6
34 S131-051046
- S131-051046 - SCREW-W/WASHER
- Поз.: 25
35 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 26
36 S661-260300
- S661-260300 - CAP-RUBBER
- Поз.: 27
37 S890-107508
- S890-107508 - TUBE-PVC
- Поз.: 28
38 21N8-40190
- 21N8-40190 - EXT.HARNESS-A/RIDE SEAT
- Поз.: 30
39 21N8-40140
- 21N8-40140 - HARNESS-SIDE
- RH
- Поз.: 32
40 21N6-10450
- 21N6-10450 - PLATE-C/RADIO COVER
- Поз.: 33
41 21N6-10480
- 21N6-10480 - BRACKET-LH
- Поз.: 34-1
42 21N6-10490
- 21N6-10490 - BRACKET-RH
- Поз.: 34-2
43 21N8-01600
- 21N8-01600 - HARNESS-EXT WIRE
- Поз.: 34-3
44 S141-050102
- S141-050102 - SCREW-FLAT HD
- Поз.: 34-4
45 21N8-40500
- 21N8-40500 - CD PLAYER ASSY
- Поз.: 35
46 21N6-10480
- 21N6-10480 - BRACKET-LH
- Поз.: 35-1
47 21N6-10490
- 21N6-10490 - BRACKET-RH
- Поз.: 35-2
48 21N8-01600
- 21N8-01600 - HARNESS-EXT WIRE
- Поз.: 35-3
49 S141-050102
- S141-050102 - SCREW-FLAT HD
- Поз.: 35-4
50 S593-000902
- S593-000902 - CLIP-HARNESS
- Поз.: 36
51 S593-000702
- S593-000702 - CLIP-HARNESS
- Поз.: 36
52 21N4-43010
- 21N4-43010 - HARNESS-EXTENSION
- Поз.: 37
53 21N4-43020
- 21N4-43020 - SWITCH-SEAT HEAT
- Поз.: 38
54 21N4-01190
- 21N4-01190 - PLATE-CLIP
- Поз.: 39
55 21N4-47700BG
- 21N4-47700BG - BRACKET-RH
- Поз.: 44
56 21N4-47600BG
- 21N4-47600BG - BRACKET-LH
- Поз.: 45
57 21N4-47800
- 21N4-47800 - HARNESS-EXT(LAMP)
- Поз.: 46
58 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 47
59 21N8-50100
- 21N8-50100 - RADIO/USB PLAYER ASSY
- Поз.: 57
60 21N8-54000
- 21N8-54000 - RADIO/USB PLAYER ASSY
- Поз.: 57
61 21LM-31010
- 21LM-31010 - BRACKET L
- Поз.: 57-1
62 21LM-31020
- 21LM-31020 - BRACKET R
- Поз.: 57-2
63 21LM-31030
- 21LM-31030 - CABLE-MP3
- Поз.: 57-3
64 21LM-31040
- 21LM-31040 - CAP
- Поз.: 57-4
65 21LM-31050
- 21LM-31050 - BODY-RADIO/USB
- Поз.: 57-5
66 21N8-50110
- 21N8-50110 - HARNESS-EXT
- WIRE
- Поз.: 57-6
