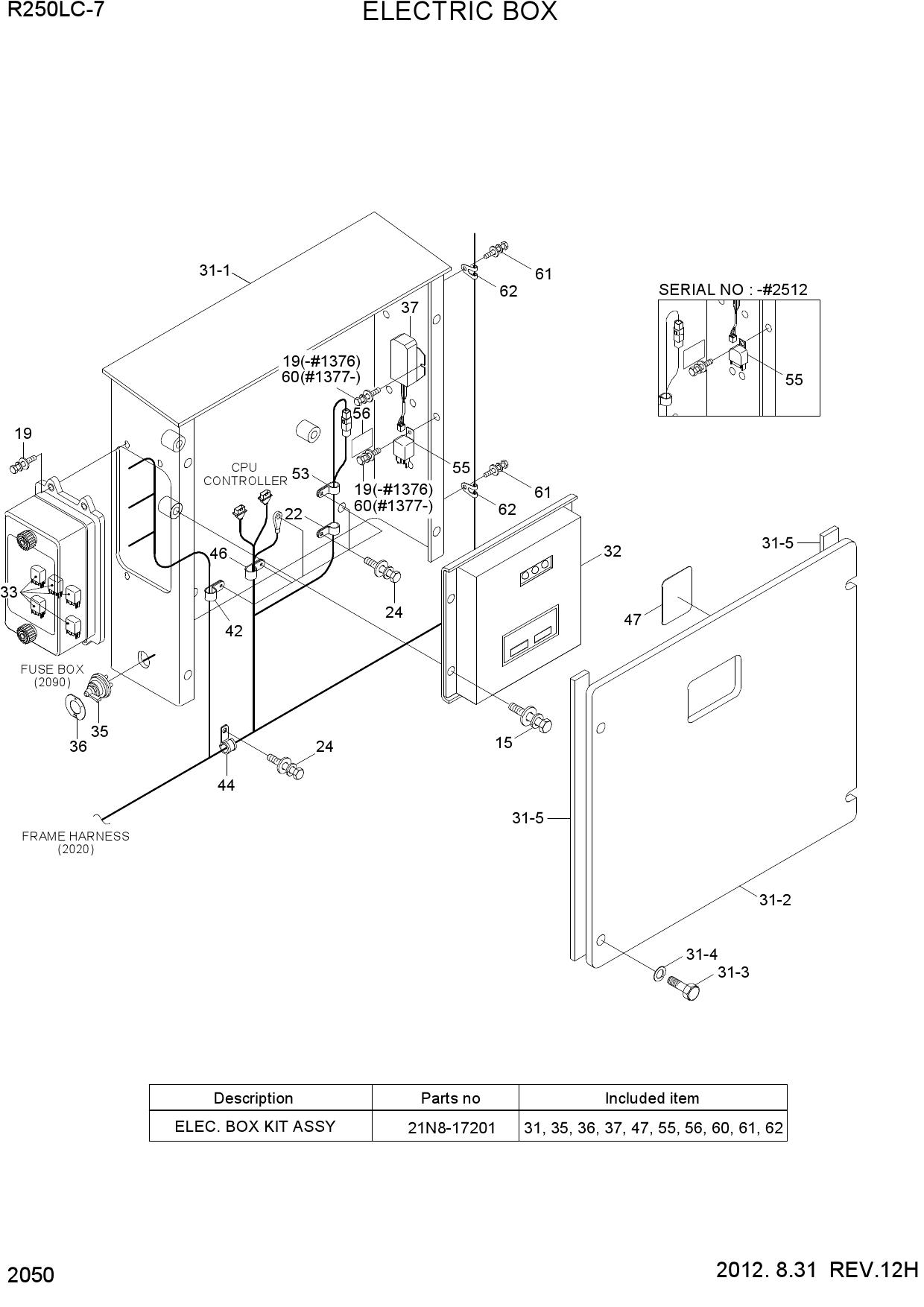

ELECTRIC BOX
1 S035-082022
- S035-082022 - BOLT-W/WASHER
- Поз.: 15
2 S035-061622
- S035-061622 - BOLT-W/WASHER
- Поз.: 19
3 S035-061622
- S035-061622 - BOLT-W/WASHER
- Поз.: 19
4 S035-061622
- S035-061622 - BOLT-W/WASHER
- Поз.: 19
5 S543-160002
- S543-160002 - CLAMP-TUBE
- Поз.: 22
6 21N8-00710
- 21N8-00710 - ELECTRIC BOX WA
- Поз.: 31-1
7 21N6-20152
- 21N6-20152 - PLATE-FRONT COVER
- Поз.: 31-2
8 S017-100162
- S017-100162 - BOLT-HEX
- Поз.: 31-3
9 S411-100002
- S411-100002 - WASHER-SPRING
- Поз.: 31-4
10 21N6-20180
- 21N6-20180 - PAD-RUBBER
- Поз.: 31-5
11 21N7-32100
- 21N7-32100 - CPU CONTROLLER
- Поз.: 32
12 21N7-32101
- 21N7-32101 - CPU CONTROLLER
- Поз.: 32
13 24L1-05100
- 24L1-05100 - RELAY-5P
- Поз.: 33
14 21L7-10500
- 21L7-10500 - SWITCH-MASTER
- Поз.: 35
15 21L7-10500
- 21L7-10500 - SWITCH-MASTER
- Поз.: 35
16 21N4-10441
- 21N4-10441 - SWITCH-MASTER
- Поз.: 35
17 21EN-00420
- 21EN-00420 - DECAL-MASTER SW
- Поз.: 36
18 21N4-10451
- 21N4-10451 - DECAL-MASTER SWITCH
- Поз.: 36
19 21E7-2000
- 21E7-2000 - RESISTER-PROLIX
- Поз.: 37
20 21Q4-10900
- 21Q4-10900 - RESISTOR ASSY
- Поз.: 37
21 S543-240002
- S543-240002 - CLAMP-TUBE
- Поз.: 42
22 S543-260002
- S543-260002 - CLAMP-TUBE
- Поз.: 44
23 S543-280002
- S543-280002 - CLAMP-TUBE
- Поз.: 46
24 S543-120002
- S543-120002 - CLAMP-TUBE
- Поз.: 53
