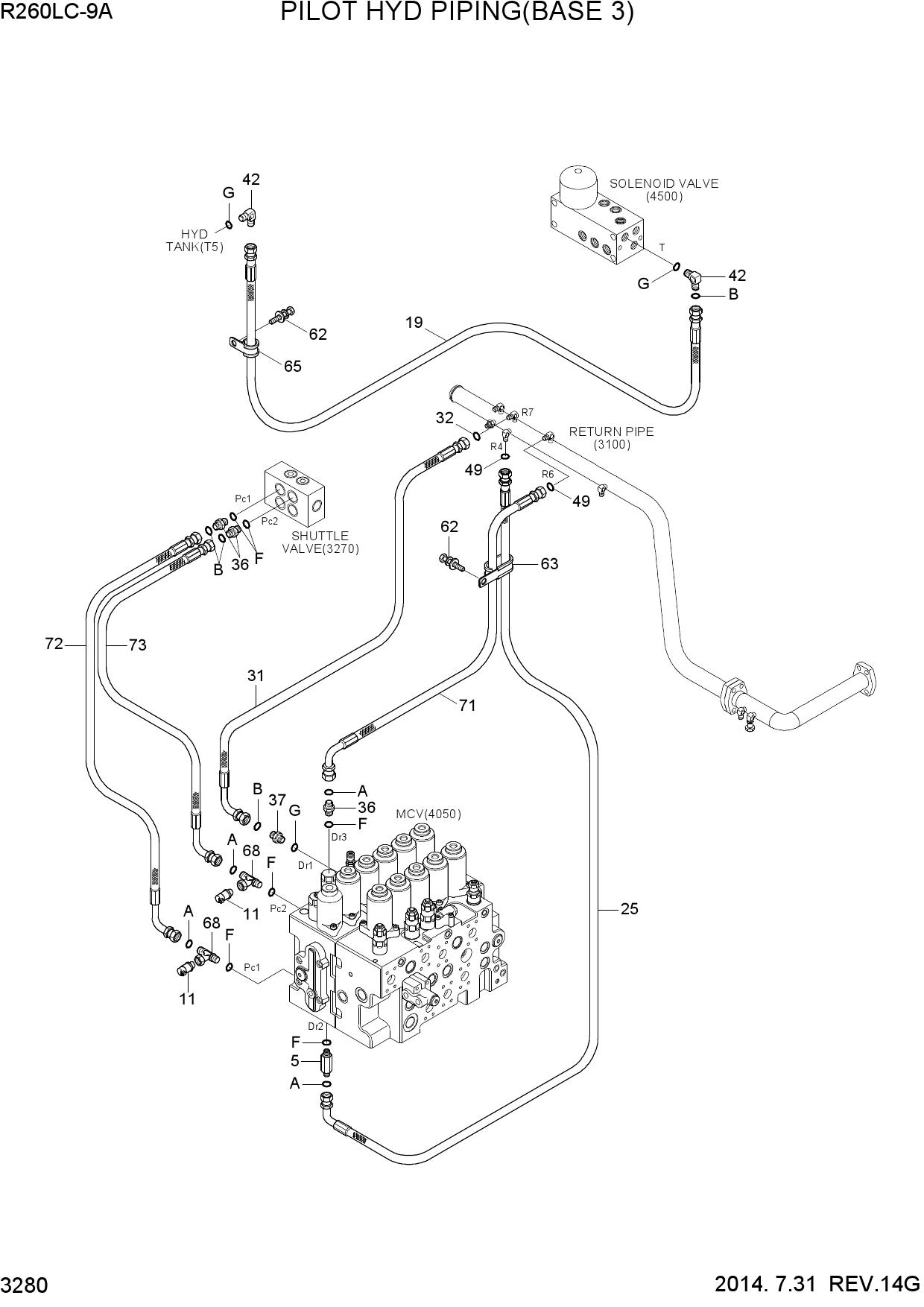

PILOT HYD PIPING(BASE 3)
1 31N8-40100
- 31N8-40100 - CONNECTOR-LONG
- ORFS
- Поз.: 5
2 31Q4-40820
- 31Q4-40820 - SENSOR-PRESSURE
- Поз.: 11
3 X400-062032
- X400-062032 - HOSE ASSY-SYNF
- ORFS
- Поз.: 19
4 X420-042012
- X420-042012 - HOSE ASSY-ORFS 0X90
- Поз.: 25
5 X420-062007
- X420-062007 - HOSE ASSY-ORFS 0X90
- Поз.: 31
6 P930-062007
- P930-062007 - HOSE ASSY-ORFS 0X90
- Поз.: 31
7 S621-012001
- S621-012001 - O-RING
- Поз.: 32
8 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 36
9 X500-110002
- X500-110002 - CONNECTOR-ORFS
- Поз.: 37
10 X520-110002
- X520-110002 - ELBOW-90
- ORFS
- Поз.: 42
11 S621-011001
- S621-011001 - O-RING
- Поз.: 49
12 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 62
13 31L7-10240
- 31L7-10240 - CLAMP-TUBE INS
- Поз.: 63
14 31L7-10210
- 31L7-10210 - CLAMP-TUBE INS
- Поз.: 65
15 31NB-20130
- 31NB-20130 - TEE-RUN TYPE/TEST
- Поз.: 68
16 X420-042008
- X420-042008 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 71
17 X420-042018
- X420-042018 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 72
18 X420-042021
- X420-042021 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 73
