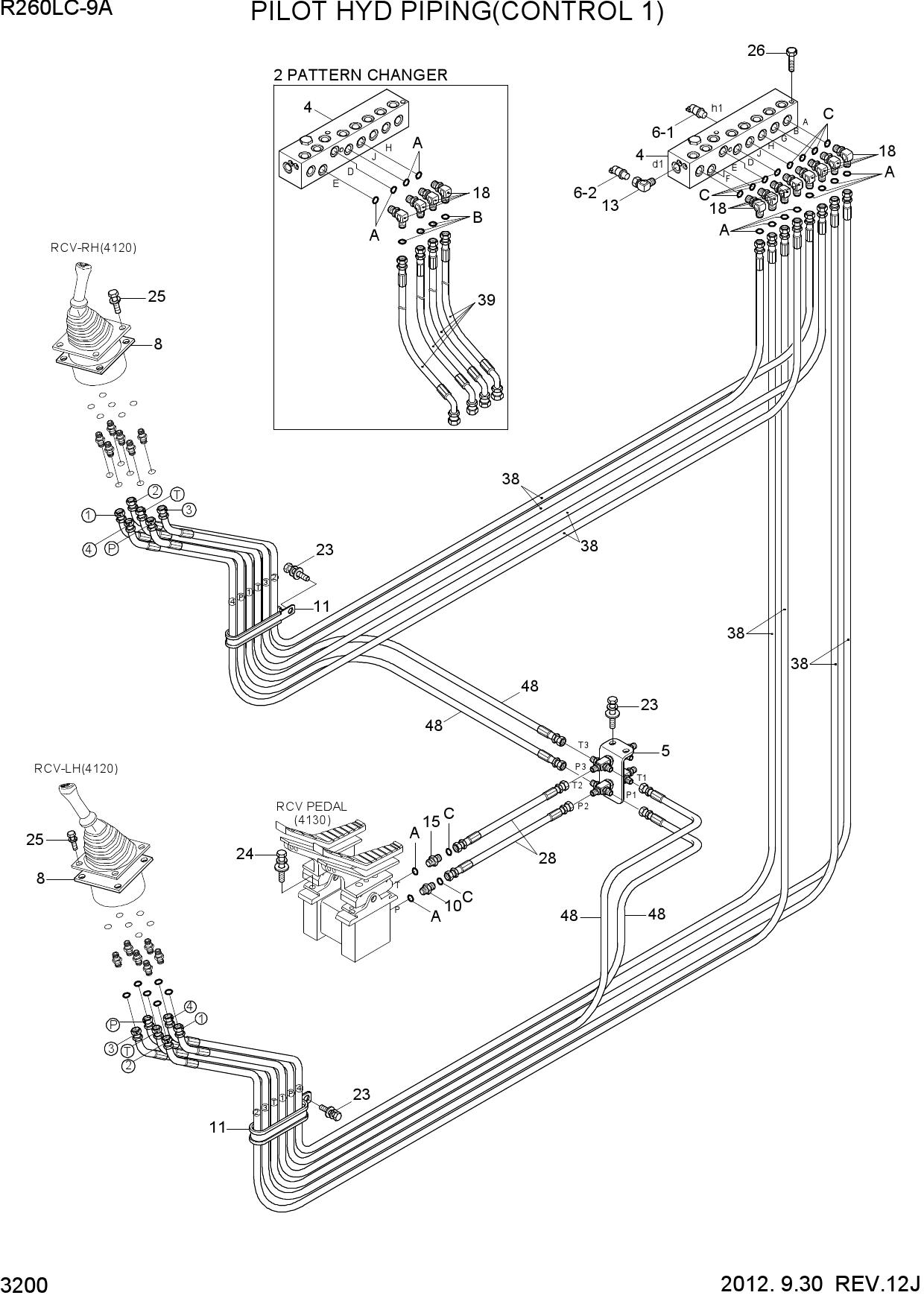

PILOT HYD PIPING(CONTROL 1)
1 31Q6-20171
- 31Q6-20171 - BLOCK-TERMINAL
- Поз.: 4
2 XKAL-00097
- XKAL-00097 - BLOCK-MANIFOLD
- Поз.: 4-1
3 XKAL-00096
- XKAL-00096 - VALVE-SHUTTLE
- Поз.: 4-2
4 31N6-25100
- 31N6-25100 - CROSS ASSY
- Поз.: 5
5 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 6-1
6 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 6-2
7 31M6-51061
- 31M6-51061 - SHIM(3.2T)
- Поз.: 8
8 31N6-25060
- 31N6-25060 - FILTER-LAST GUARD
- Поз.: 10
9 31L7-10240
- 31L7-10240 - CLAMP-TUBE INS
- Поз.: 11
10 31E5-11110
- 31E5-11110 - ADAPTER
- Поз.: 13
11 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 15
12 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 18
13 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 23
14 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 24
15 S035-063046
- S035-063046 - BOLT-W/WASHER
- Поз.: 25
16 S015-080756
- S015-080756 - BOLT-HEX
- Поз.: 26
17 X400-042018
- X400-042018 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 28
18 X410-042045
- X410-042045 - HOSE ASSY-ORFS 0X45
- Поз.: 38
19 X410-042050
- X410-042050 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 39
20 P920-042023
- P920-042023 - HOSE ASSY-ORFS 0X45
- Поз.: 48
