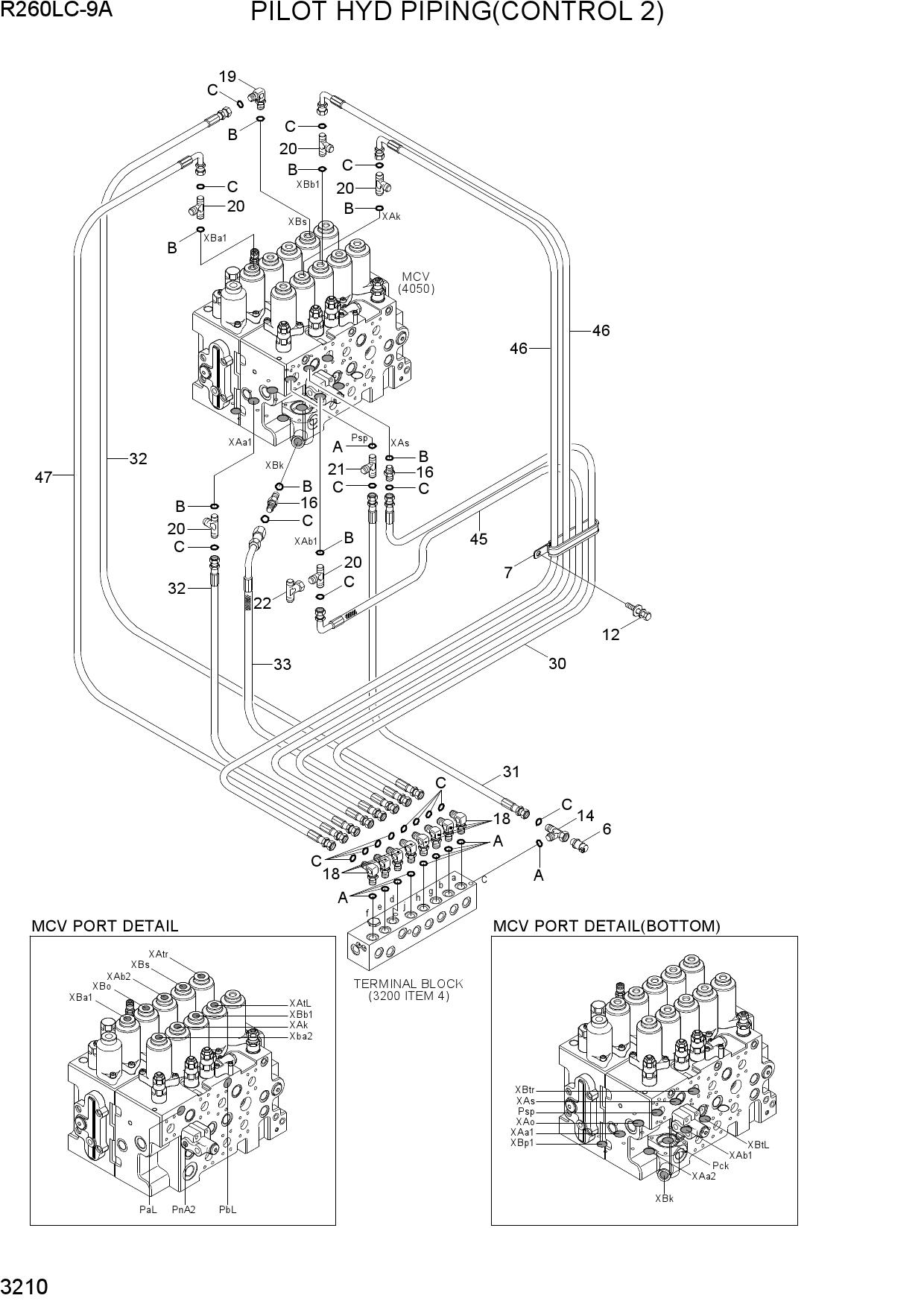

PILOT HYD PIPING(CONTROL 2)
1 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 6
2 31L7-10270
- 31L7-10270 - CLAMP-TUBE
- Поз.: 7
3 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 12
4 31NA-22310
- 31NA-22310 - TEE-BRANCH TYPE
- Поз.: 14
5 X500-110013
- X500-110013 - CONNECTOR-ORFS
- Поз.: 16
6 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 18
7 X520-110012
- X520-110012 - ELBOW-90
- ORFS
- Поз.: 19
8 X820-065151
- X820-065151 - TEE-R/TYPE
- ORFS
- Поз.: 20
9 X820-045151
- X820-045151 - TEE-R/TYPE
- ORFS
- Поз.: 21
10 X840-515151
- X840-515151 - TEE-R/TYPE
- ORFS
- Поз.: 22
11 X400-042035
- X400-042035 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 30
12 X400-042038
- X400-042038 - HOSE ASSY-SYNF
- ORFS
- Поз.: 31
13 X400-042040
- X400-042040 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 32
14 X420-042040
- X420-042040 - HOSE ASSY-ORFS 0X90
- Поз.: 33
15 X420-042038
- X420-042038 - HOSE ASSY-ORFS 0X90
- Поз.: 45
16 X420-042042
- X420-042042 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 46
17 X420-042046
- X420-042046 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 47
