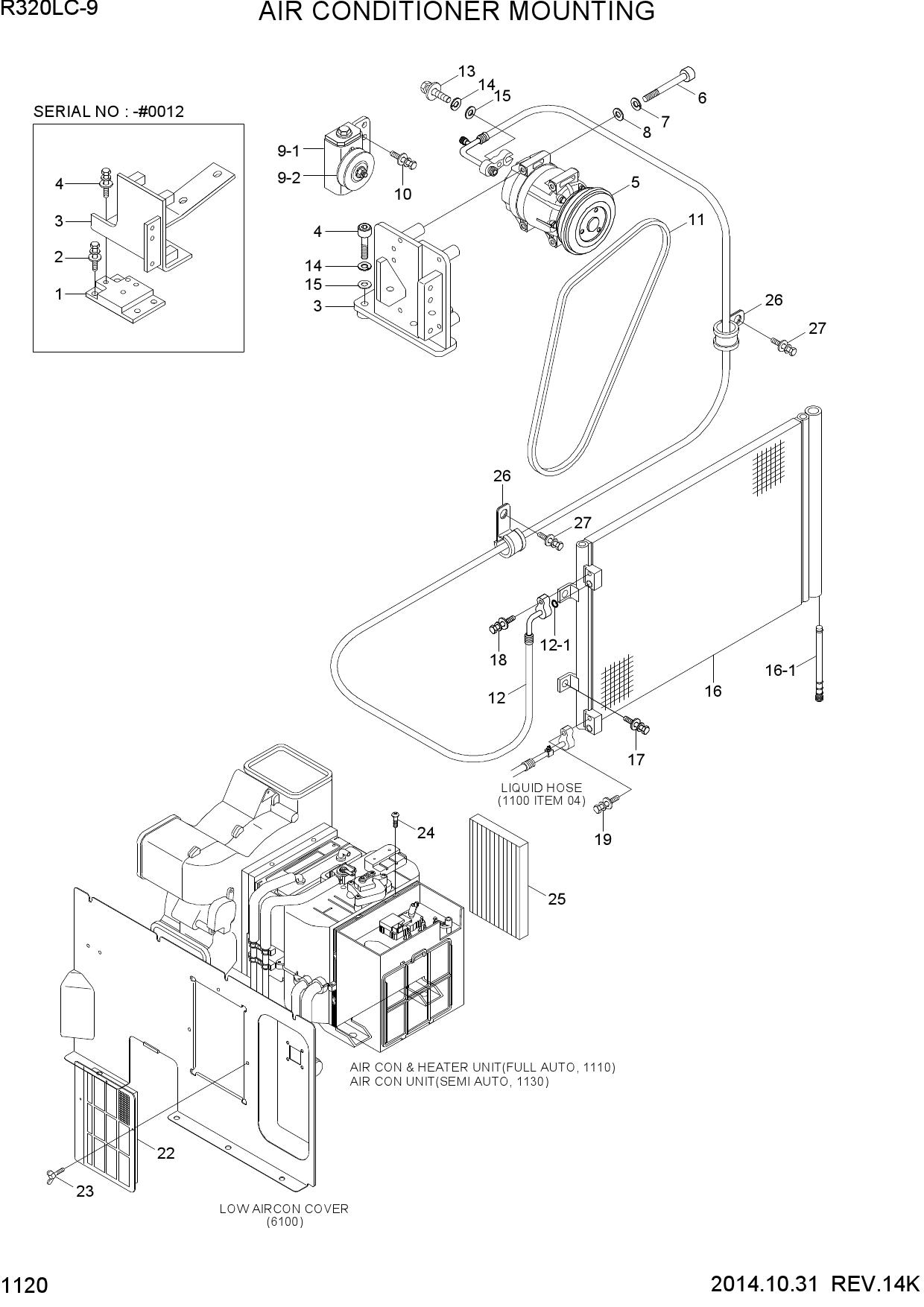

AIR CONDITIONER MOUNTING
1 11Q9-90050
- 11Q9-90050 - BRACKET-COMP
- Поз.: 1
2 S037-102556
- S037-102556 - BOLT-W/WASHER
- Поз.: 2
3 11Q9-90061
- 11Q9-90061 - BRACKET
- Поз.: 3
4 11Q9-90041
- 11Q9-90041 - BRACKET-COMP
- Поз.: 3
5 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 4
6 S109-100406
- S109-100406 - BOLT-SOCKET
- Поз.: 4
7 11Q6-90040
- 11Q6-90040 - COMPRESSOR ASSY
- Поз.: 5
8 S109-080906
- S109-080906 - BOLT-SOCKET
- Поз.: 6
9 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 7
10 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 8
11 11N6-90110
- 11N6-90110 - PULLEY-IDLE
- Поз.: 9
12 A4760-508-00-2
- A4760-508-00-2 - BRACKET-PULLEY
- Поз.: 9-1
13 A4700-511-01-2
- A4700-511-01-2 - PULLEY-IDLE
- Поз.: 9-2
14 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 10
15 11EG-91020
- 11EG-91020 - V-BELT
- Поз.: 11
16 11Q9-90420
- 11Q9-90420 - HOSE-DISCHARGE
- Поз.: 12
17 A3050-002-05-2
- A3050-002-05-2 - O-RING
- Поз.: 12-1
18 S018-100356
- S018-100356 - BOLT-HEX
- Поз.: 13
19 S038-103556
- S038-103556 - BOLT-W/WASHER
- Поз.: 13
20 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 14
21 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 14
22 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 15
23 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 15
24 11Q6-90071
- 11Q6-90071 - CONDENSER-R/DRYER
- Поз.: 16
25 A2W00701D
- A2W00701D - CARTRIDGE ASSY
- Поз.: 16-1
26 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 17
27 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 18
28 S035-063046
- S035-063046 - BOLT-W/WASHER
- Поз.: 19
29 11Q6-90240
- 11Q6-90240 - FILTER-REC
- Поз.: 22
30 S091-060206
- S091-060206 - BOLT-WING
- Поз.: 23
31 S151-040126
- S151-040126 - SCREW-TAPPING
- Поз.: 24
32 11Q6-90510
- 11Q6-90510 - FILTER-AIR CON
- Поз.: 25
33 31L7-10230
- 31L7-10230 - CLAMP
- Поз.: 26
34 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 27
