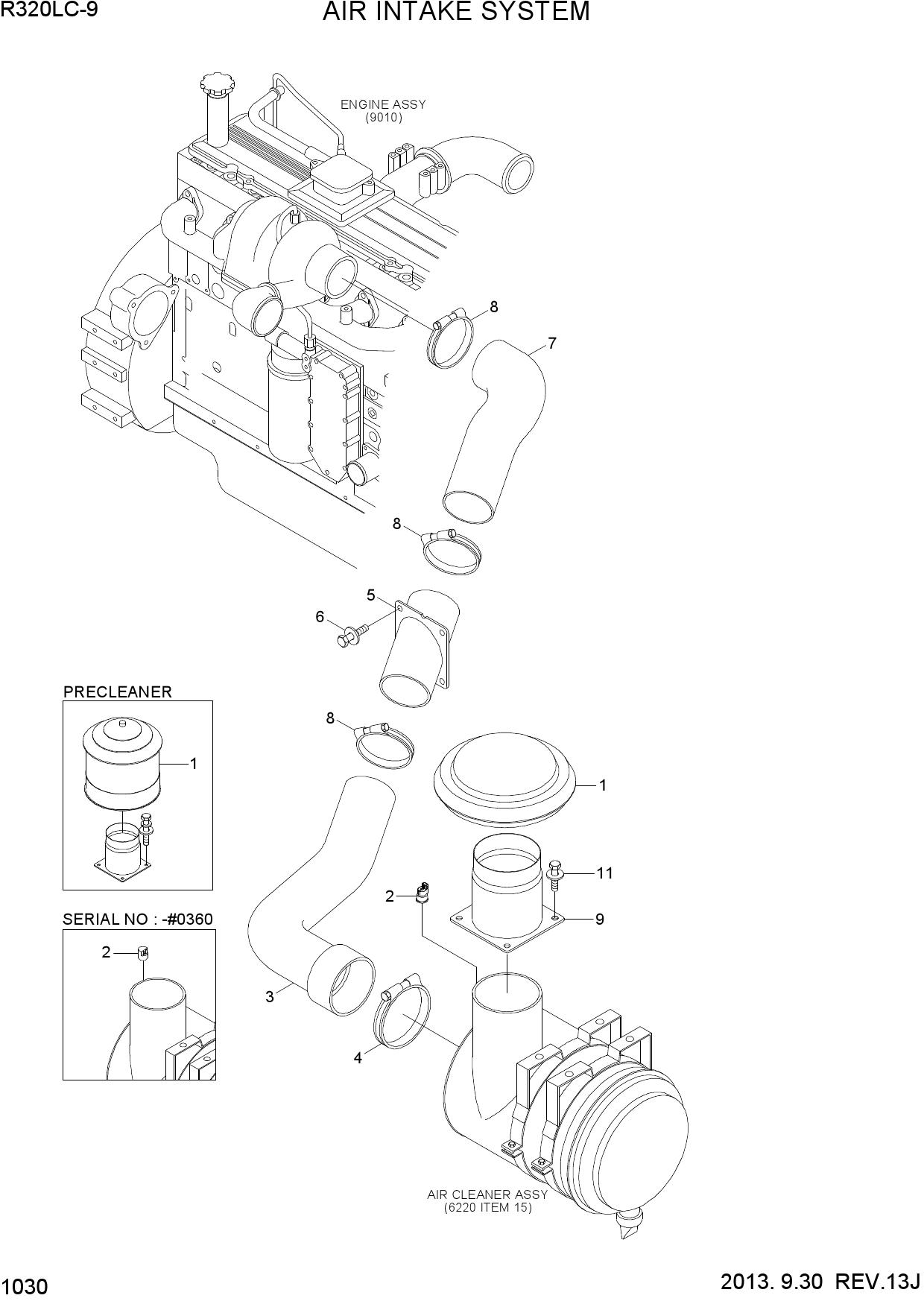

AIR INTAKE SYSTEM
1 11Q8-22040
- 11Q8-22040 - CAP-RAIN
- Поз.: 1
2 11NB-20050
- 11NB-20050 - PRECLEANER
- Поз.: 1
3 11FG-20110
- 11FG-20110 - SENSOR-AIR CLEANER
- Поз.: 2
4 11Q4-21010
- 11Q4-21010 - INDICATOR
- Поз.: 2
5 11Q9-20040
- 11Q9-20040 - HOSE-INTAKE(A)
- Поз.: 3
6 11LB-40190
- 11LB-40190 - CLAMP-HOSE
- Поз.: 4
7 11Q9-20011
- 11Q9-20011 - PIPE-CONNECT
- Поз.: 5
8 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 6
9 S037-122526
- S037-122526 - BOLT-W/WASHER
- Поз.: 6
10 11Q9-20020
- 11Q9-20020 - HOSE-INTAKE(B)
- Поз.: 7
11 11LB-40310
- 11LB-40310 - CLAMP-T BOLT
- Поз.: 8
12 11Q8-20340
- 11Q8-20340 - PIPE-CONNECT
- Поз.: 9
13 11Q8-20360
- 11Q8-20360 - PIPE-CONNECT
- Поз.: 9
14 71Q6-50025
- 71Q6-50025 - BOLT-W/WASHER
- Поз.: 11
