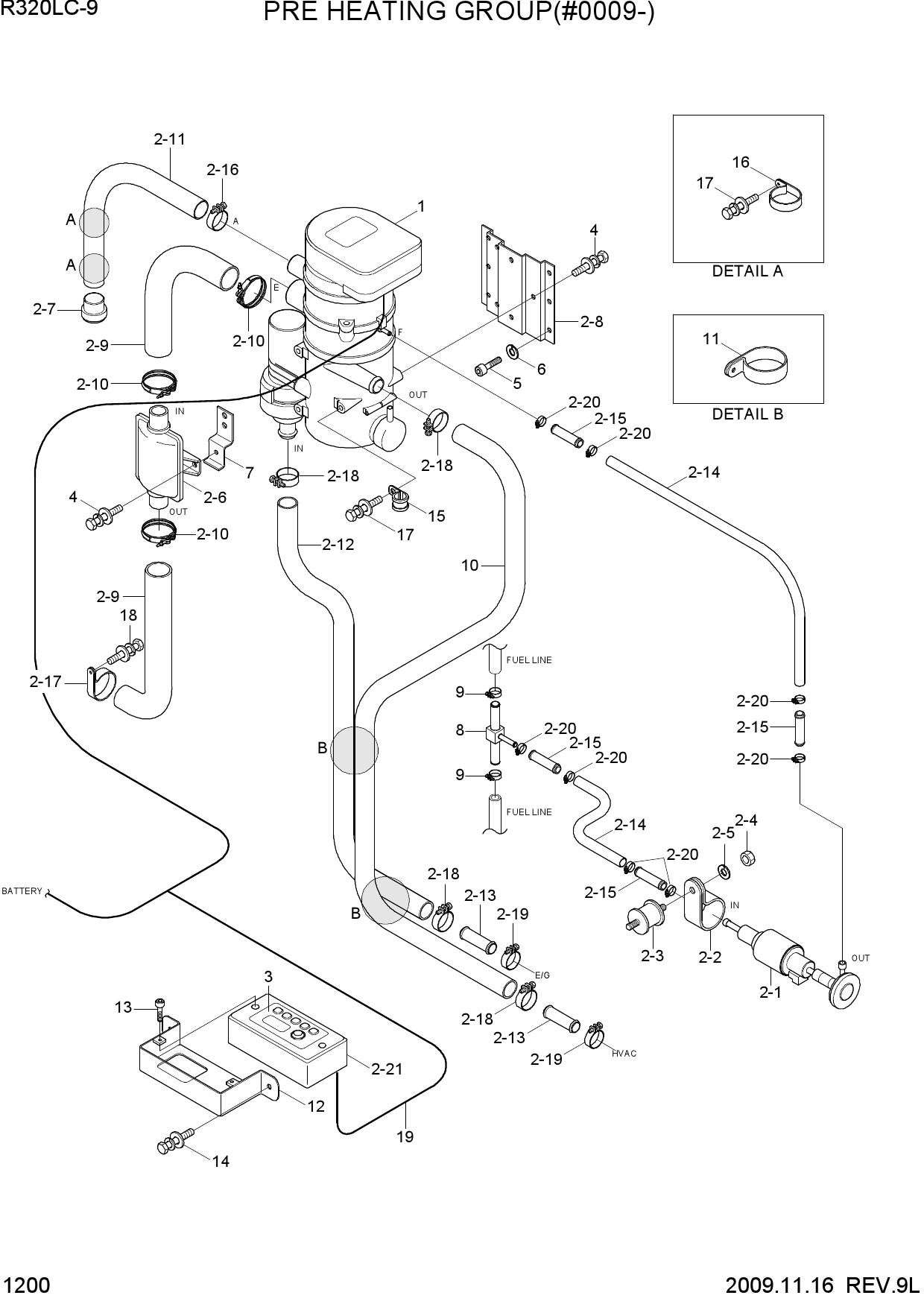

PRE HEATING GROUP(#0009-)
1 11N8-90610
- 11N8-90610 - PRE HEATER ASSY
- Поз.: 1
2 11N8-90620
- 11N8-90620 - PRE HEATER KIT
- Поз.: 2
3 11N8-90650
- 11N8-90650 - SILENCER ASSY
- Поз.: 2-6
4 11N8-90660
- 11N8-90660 - BRACKET
- Поз.: 2-8
5 11N8-90680
- 11N8-90680 - HOSE
- Поз.: 2-9
6 11N8-90690
- 11N8-90690 - CLAMP-EXHAUST PIPE
- Поз.: 2-10
7 11N8-90700
- 11N8-90700 - HOSE-INTAKE
- Поз.: 2-11
8 11N8-90710
- 11N8-90710 - HOSE
- Поз.: 2-12
9 11N8-90720
- 11N8-90720 - CONNECTOR-HOSE
- Поз.: 2-13
10 11N8-90740
- 11N8-90740 - HOSE
- Поз.: 2-14
11 11N8-90750
- 11N8-90750 - HOSE
- Поз.: 2-15
12 11N8-90670
- 11N8-90670 - FRONT CASE-TIMER
- Поз.: 2-21
13 11N8-90630
- 11N8-90630 - TIMER-CONTROL
- Поз.: 4
14 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 5
15 S411-060006
- S411-060006 - WASHER-SPRING
- Поз.: 6
16 11ND-94230
- 11ND-94230 - BRACKET
- Поз.: 7
17 11Q8-94060
- 11Q8-94060 - TEE-FUEL
- Поз.: 8
18 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 9
19 11Q8-94040
- 11Q8-94040 - HOSE-HEATER
- Поз.: 10
20 31L7-10250
- 31L7-10250 - CLAMP-TUBE
- INS SINGLE
- Поз.: 11
21 11Q8-94051
- 11Q8-94051 - BRACKET-TIMER
- Поз.: 12
22 S161-040106
- S161-040106 - SCREW-CROSS R/ROUND
- Поз.: 13
23 S035-063026
- S035-063026 - BOLT-W/WASHER
- Поз.: 14
24 31L7-10190
- 31L7-10190 - CLAMP-TUBE
- Поз.: 15
25 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 16
26 S035-081556
- S035-081556 - BOLT-W/WASHER
- Поз.: 17
27 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 18
28 21Q8-90800
- 21Q8-90800 - HARNESS-PREHEATER
- Поз.: 19
