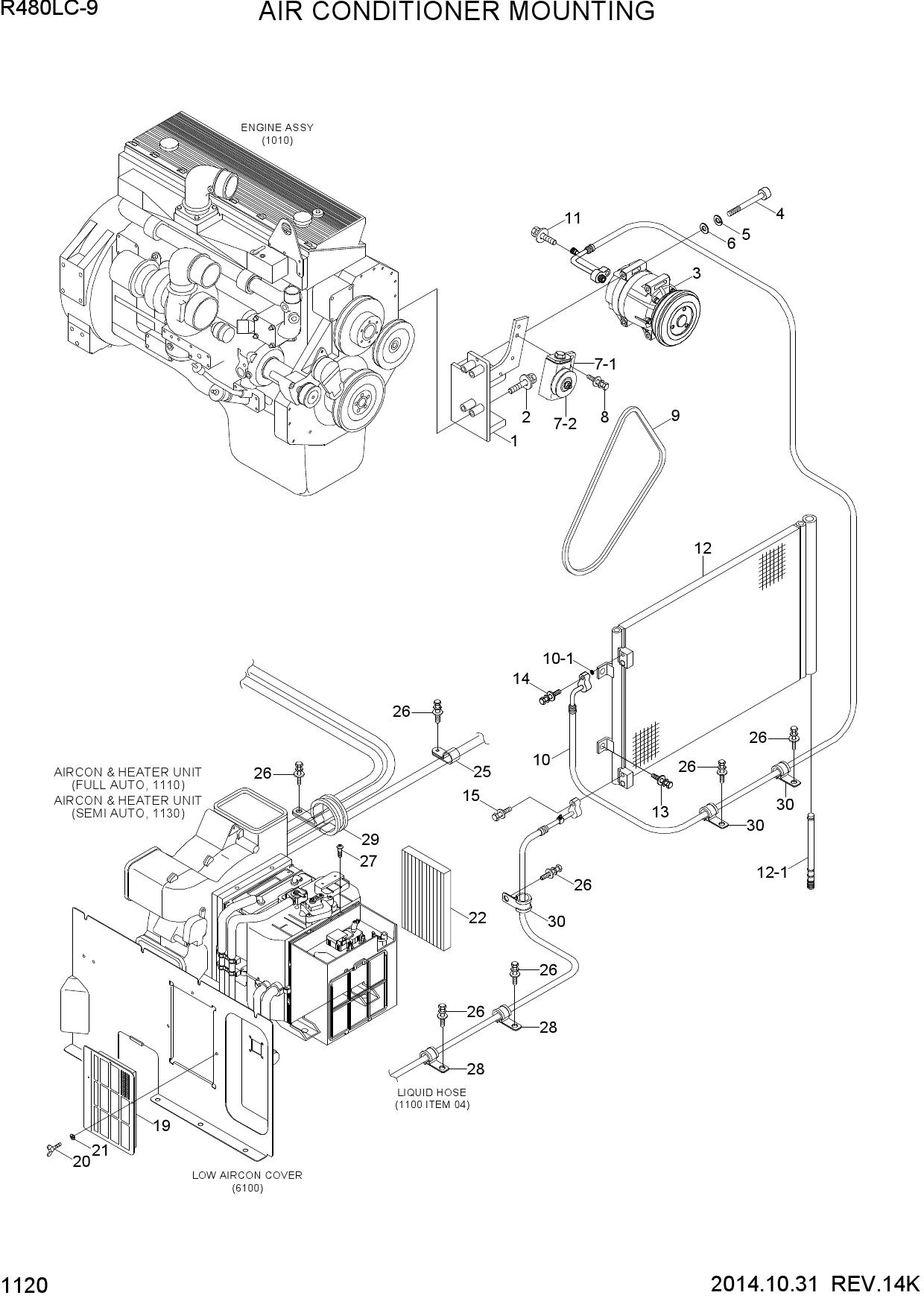

AIR CONDITIONER MOUNTING
1 11QB-90011
- 11QB-90011 - BRACKET-COMP. MTG
- Поз.: 1
2 S037-106556
- S037-106556 - BOLT-W/WASHER
- Поз.: 2
3 11Q6-90040
- 11Q6-90040 - COMPRESSOR ASSY
- Поз.: 3
4 S109-080856
- S109-080856 - BOLT-SOCKET
- Поз.: 4
5 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 5
6 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 6
7 11N6-90110
- 11N6-90110 - PULLEY-IDLE
- Поз.: 7
8 A4760-508-00-2
- A4760-508-00-2 - BRACKET-PULLEY
- Поз.: 7-1
9 A4700-511-01-2
- A4700-511-01-2 - PULLEY-IDLE
- Поз.: 7-2
10 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 8
11 12E2-3505
- 12E2-3505 - V-BELT
- Поз.: 9
12 11N4-94030
- 11N4-94030 - V-BELT
- Поз.: 9
13 11Q7-90320
- 11Q7-90320 - HOSE-DISCHARGE
- Поз.: 10
14 A3050-002-05-2
- A3050-002-05-2 - O-RING
- Поз.: 10-1
15 S038-103556
- S038-103556 - BOLT-W/WASHER
- Поз.: 11
16 11Q6-90071
- 11Q6-90071 - CONDENSER-R/DRYER
- Поз.: 12
17 A2W00701D
- A2W00701D - CARTRIDGE ASSY
- Поз.: 12-1
18 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 13
19 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 14
20 S035-063046
- S035-063046 - BOLT-W/WASHER
- Поз.: 15
21 11Q6-90240
- 11Q6-90240 - FILTER-REC
- Поз.: 19
22 S091-060206
- S091-060206 - BOLT-WING
- Поз.: 20
23 S403-06200B
- S403-06200B - WASHER-PLAIN
- Поз.: 21
24 11Q6-90510
- 11Q6-90510 - FILTER-AIR CON
- Поз.: 22
25 31L7-10200
- 31L7-10200 - CLAMP-TUBE
- Поз.: 23
26 31L7-10230
- 31L7-10230 - CLAMP
- Поз.: 25
27 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 26
28 S151-040126
- S151-040126 - SCREW-TAPPING
- Поз.: 27
29 31L7-10190
- 31L7-10190 - CLAMP-TUBE
- Поз.: 28
30 31L7-10260
- 31L7-10260 - CLAMP-TUBE
- Поз.: 29
31 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 30
