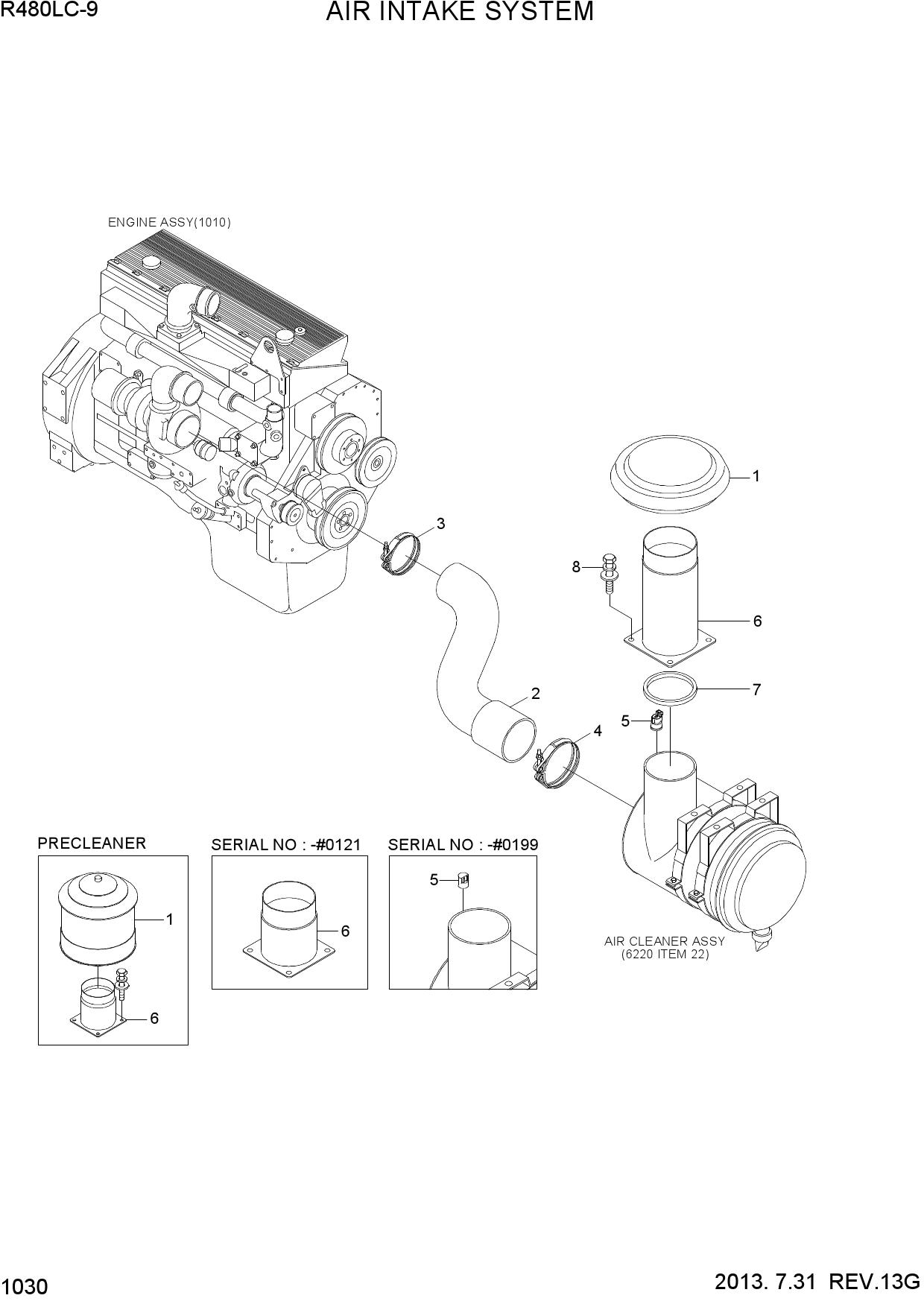

AIR INTAKE SYSTEM
1 11Q8-20210
- 11Q8-20210 - CAP ASSY-RAIN
- Поз.: 1
2 11NB-20060
- 11NB-20060 - PRECLEANER
- Поз.: 1
3 11QB-20040
- 11QB-20040 - HOSE-AIR CLEANER
- Поз.: 2
4 11LB-40300
- 11LB-40300 - CLAMP-BAND
- T-BOLT
- Поз.: 3
5 11LB-40240
- 11LB-40240 - CLAMP-HOSE
- Поз.: 4
6 11FG-20110
- 11FG-20110 - SENSOR-AIR CLEANER
- Поз.: 5
7 11Q4-21010
- 11Q4-21010 - INDICATOR
- Поз.: 5
8 11QA-20091
- 11QA-20091 - CONNECTOR-PIPE
- Поз.: 6
9 11QB-20080
- 11QB-20080 - PIPE-CONNECT
- Поз.: 6
10 11QA-20190
- 11QA-20190 - PIPE-CONNECT
- Поз.: 6
11 11QA-22070
- 11QA-22070 - SEAL-RUBBER
- Поз.: 7
12 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 8
