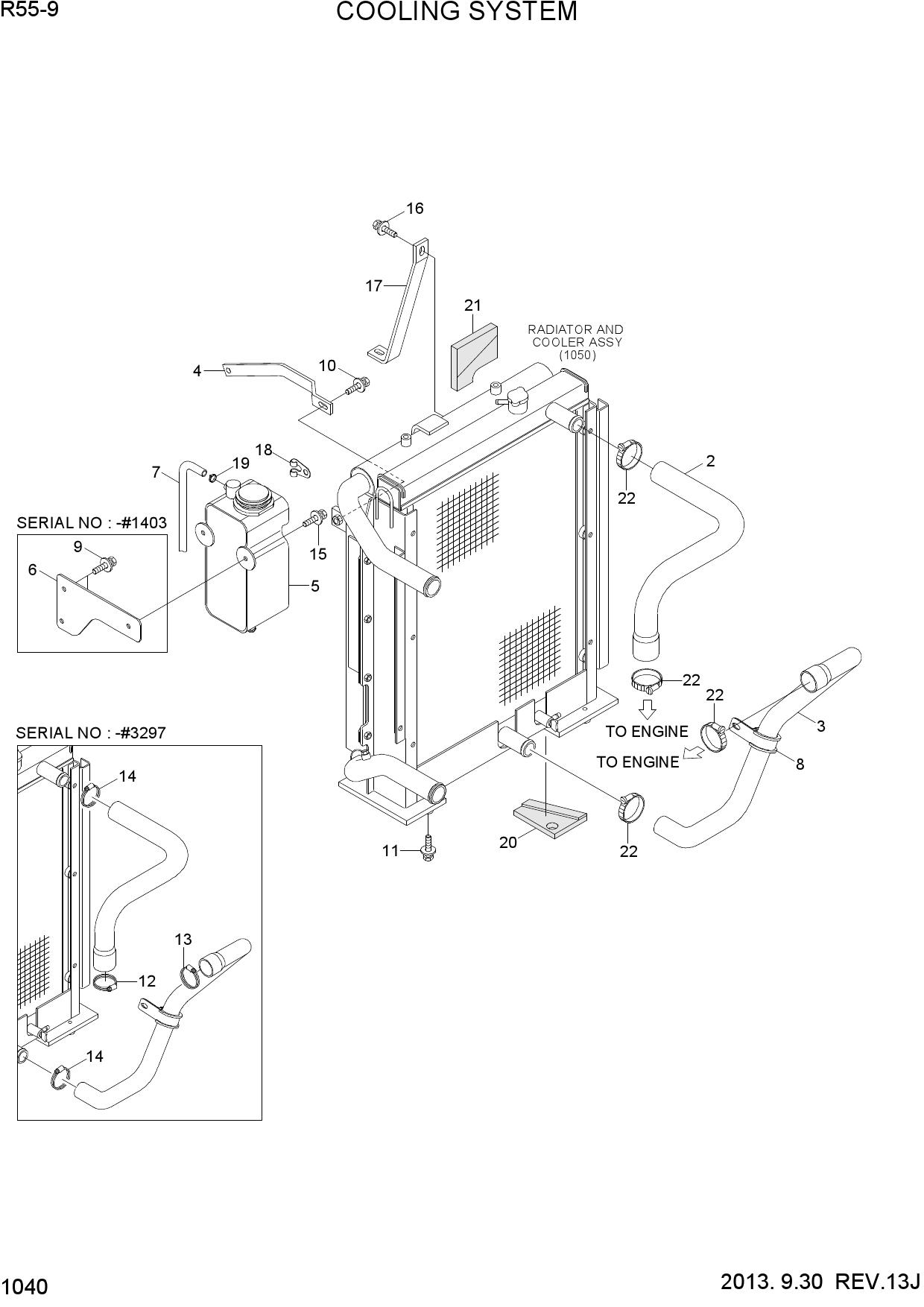

COOLING SYSTEM
1 11M9-45100
- 11M9-45100 - HOSE
- Поз.: 2
2 11M9-45110
- 11M9-45110 - HOSE
- Поз.: 3
3 11M9-44571
- 11M9-44571 - BRACKET
- Поз.: 4
4 11M8-42330
- 11M8-42330 - TANK-RESERVOIR
- Поз.: 5
5 11M8-42311
- 11M8-42311 - BRACKET
- Поз.: 6
6 11M9-44610
- 11M9-44610 - BRACKET
- Поз.: 6
7 11FA-53210
- 11FA-53210 - HOSE-FUEL
- Поз.: 7
8 11M9-44580
- 11M9-44580 - CLAMP
- Поз.: 8
9 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 9
10 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 10
11 S037-102556
- S037-102556 - BOLT-W/WASHER
- Поз.: 11
12 S572-510006
- S572-510006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 12
13 S572-490006
- S572-490006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 13
14 S572-430006
- S572-430006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 13
15 S572-450006
- S572-450006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 14
16 S572-460006
- S572-460006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 14
17 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 15
18 S037-122556
- S037-122556 - BOLT-W/WASHER
- Поз.: 16
19 11M9-44600
- 11M9-44600 - BRACKET
- Поз.: 17
20 S593-000652
- S593-000652 - CLIP-HARNESS
- Поз.: 18
21 11HA-50110
- 11HA-50110 - CLIP-HOSE
- Поз.: 19
22 11M9-44400
- 11M9-44400 - SPONGE
- Поз.: 20
23 11M9-44410
- 11M9-44410 - SPONGE
- Поз.: 21
24 11Q4-44380
- 11Q4-44380 - CLAMP
- Поз.: 22
